MP4425A

MP4425A

High-Efficiency, 1.5A, 36V, 2.2MHz, Synchronous, Step-Down LED Driver

Datasheet

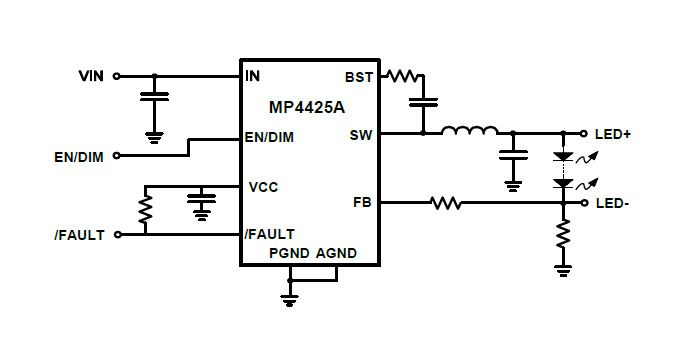

Description

The MP4425A is a high-frequency, synchronous, rectified, step-down, switch-mode white LED driver with built-in power MOSFETs. It offers a very compact solution to achieve 1.5A of continuous output current with excellent load and line regulation over a wide input supply range. The MP4425A has synchronous mode operation to get high efficiency.

Current mode operation provides fast transient response and eases loop stabilization.

Full protection features include over-current protection (OCP) and thermal shutdown (TSD).

The MP4425A requires a minimal number of readily available, standard external components, and is available in a space-saving QFN-13
(2.5mmx3mm) package.

Features & Benefits

Wide 4V to 36V Operating Input Range
85mΩ/50mΩ Low RDS(ON) Internal Power MOSFETs
High-Efficiency Synchronous Mode Operation
Default 2.2MHz Switching Frequency
PWM Dimming (Min 100Hz Dimming Frequency)
Forced CCM Mode
0.2V Reference Voltage
Internal Soft Start
Fault Indication for LED Short, Open, and Thermal Shutdown
Over-Current Protection (OCP) with Valley- Current Detection
Thermal Shutdown
CISPR25 Class 5 Compliant
Available in a QFN-13 (2.5mmx3mm) Package

Active Part Numbers:

MP4425AGQB-P MP4425AGQB-Z

Meaning of P & Z

Design Resources

Symbol, Footprint & 3D Model

30+ more formats Show more

Show more

Cad Symbols

Symbols (36)

Cad Footprints

Footprint (34)

Cad 3D Models

3D Models (15)

Buy direct from MPS

Standard Pricing

In stock

MP4425AGQB-Z MP4425AGQB-P

Package: QFN-13 (2.5x3)

5,000 per Reel

Buy Now Price $1.58 1K

Quantity Unit Price
1

$1.88
10

$1.84
100

$1.73
250

$1.69
500

$1.64
1K

$1.58

Special Pricing Available for
Larger Quantities Quote or Technical Support

In stock now: 100

Order now, up to 100 estimated to ship by 17 Jun, 2026

Lead Time For Additional Quantities

Additional quantities estimated to ship by 26 Jun, 2026

Arrives 3-4 business days. Shipping only $5 per order.

100 Max per Company.
Limited Inventory to support product development.

MPS Pay: Pay by Invoice Net30 Terms Learn More
