MP28315

3A, 16V, 340KHz Synchronous Rectified Step-Down Converter

MP28315

NOT RECOMMENDED FOR NEW DESIGNS

3A, 16V, 340KHz Synchronous Rectified Step-Down Converter

MP28315 continues to be in production for existing customers. Please consider this alternative for new designs:

MP1497

NRFND

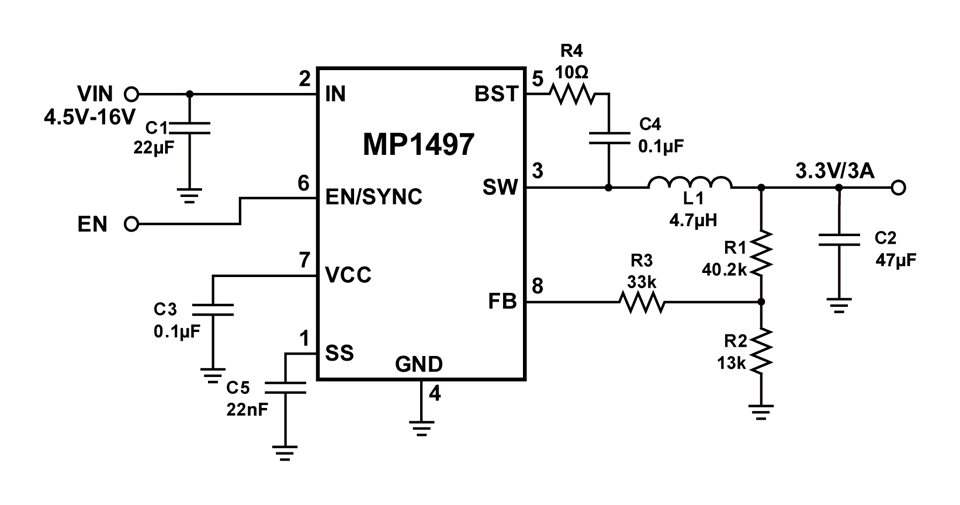

MP1497

NRFND

High-Efficiency, 3A, 16V, 500kHz, with SS, Synchronous Step-Down Converter

Features & Benefits

  • Wide 4.5V-to-16V Operating Input Range
  • 80mΩ/30mΩ Low RDS(ON) Internal Power MOSFETs
  • Proprietary Switching-Loss–Reduction Technique
  • High-Efficiency Synchronous Mode Operation
  • Fixed 500kHz Switching Frequency
  • Can Synchronize to a 200kHz-to-2MHz External Clock
  • Externally-Programmable Soft-Start
  • OCP and Hiccup
  • Thermal Shutdown
  • Output Adjustable from 0.8V
  • Available in an 8-pin TSOT-23 Package

… and many more!

Active Part Numbers:

MP28315CN-Z MP28315CN-P MP28315CN-LF-Z MP28315CN-LF-P

Meaning of P & Z Show more

Design Resources

Symbol, Footprint & 3D Model
30+ more formats Show more
Cad Symbols Symbols (36)
Cad Footprints Footprint (34)
Cad 3D Models 3D Models (15)

EDA model is not yet available for this part.

Please enter your email address and we will notify you when it is released.

Buy direct from MPS



Quality Policy, Certificates & Reliability Reports
All MPS parts are lead-free, halogen-free and adhere to the RoHS directive. See Environmental section for details.
