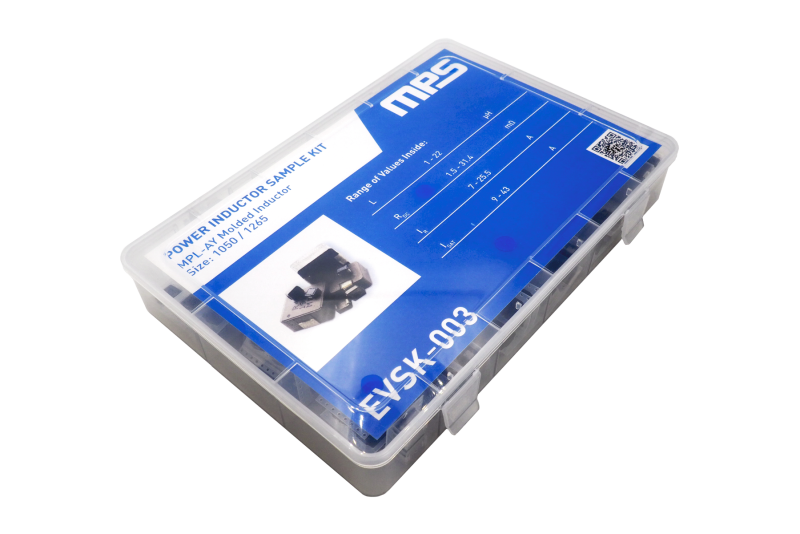

Power Inductor Sample Kit, MPL-AY Molded Inductor Series (Sizes 1050, 1265)

Datasheet

Description

The MPL-AY series offers low DCR/ACR and the ability to handle high currents.

Features & Benefits

Component Packages Included: 1050, 1265
Assorted Box Including 18 Inductor Part Numbers (10 Samples Each)
Tool Supports New Designs Due to Variety of Values
Ranges:
- L: 1μH to 22μH
- R_DC: 1.5mΩ to 31.4mΩ
- I_R: 7A to 25.5A
- I_SAT: 9A to 43A
Molded Construction
Low Audible Noise
Soft Saturation
Stable across High Temperatures
Low DCR
RoHS/REACH-Compliant, Halogen-Free

Active Part Numbers:

EVSK-003
