EVSK-002

Power Inductor Sample Kit, MPL-AY Molded Inductor Series (Sizes 3020, 4020)

Datasheet

Shopping Cart

Order

Overview
Design Resources
Technical Forum
Quality
Order

EVSK-002

EVSK-002

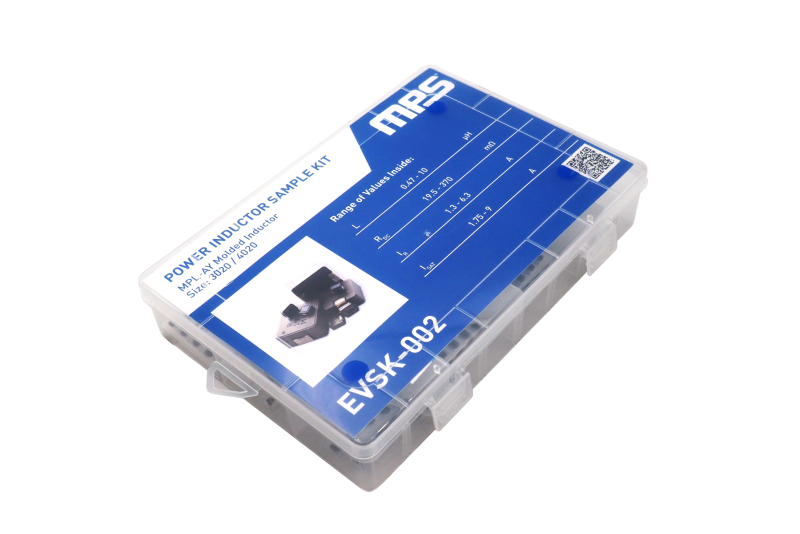

Power Inductor Sample Kit, MPL-AY Molded Inductor Series (Sizes 3020, 4020)

Datasheet

Description

The MPL-AY series offers low DCR and ACR, as well as the ability to handle high currents.

Features & Benefits

Component Packages Included: 3020, 4020
Assorted Box Including 16 Inductor Part Numbers (15 Samples Each)
Tool Supports New Designs Due to Variety of Values
Ranges:
- L: 0.47μH to 10μH
- R_DC: 19.5mΩ to 370mΩ
- I_R: 1.3A to 6.3A
- I_SAT: 1.75A to 9A
Molded Construction
Low Audible Noise
Soft Saturation
Stable across High Temperatures
Low DCR
RoHS/REACH-Compliant, Halogen-Free

Active Part Numbers:

EVSK-002
