EVQ8633B-H-LE-00A

EVQ8633B-H-LE-00A

High-Efficiency, 16V, 20A, Synchronous Step-Down Converter Evaluation Board

Datasheet

Description

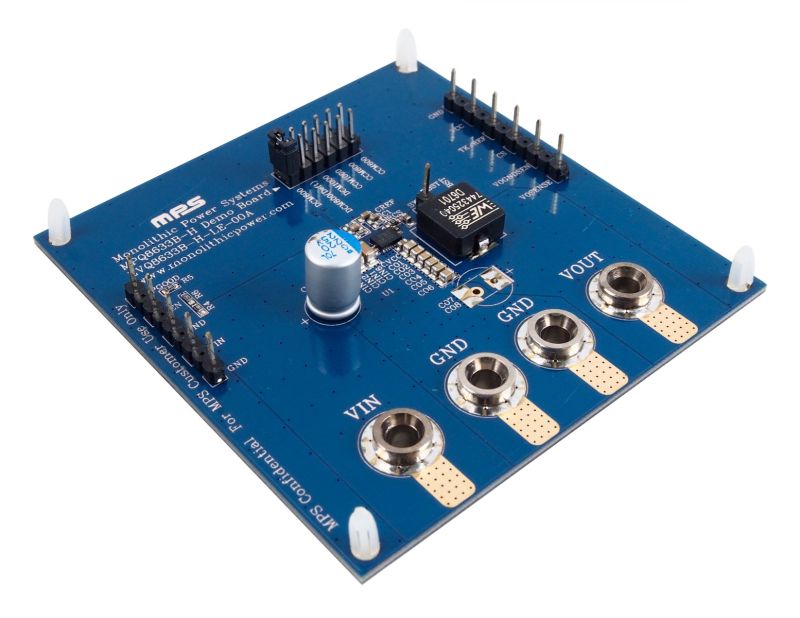

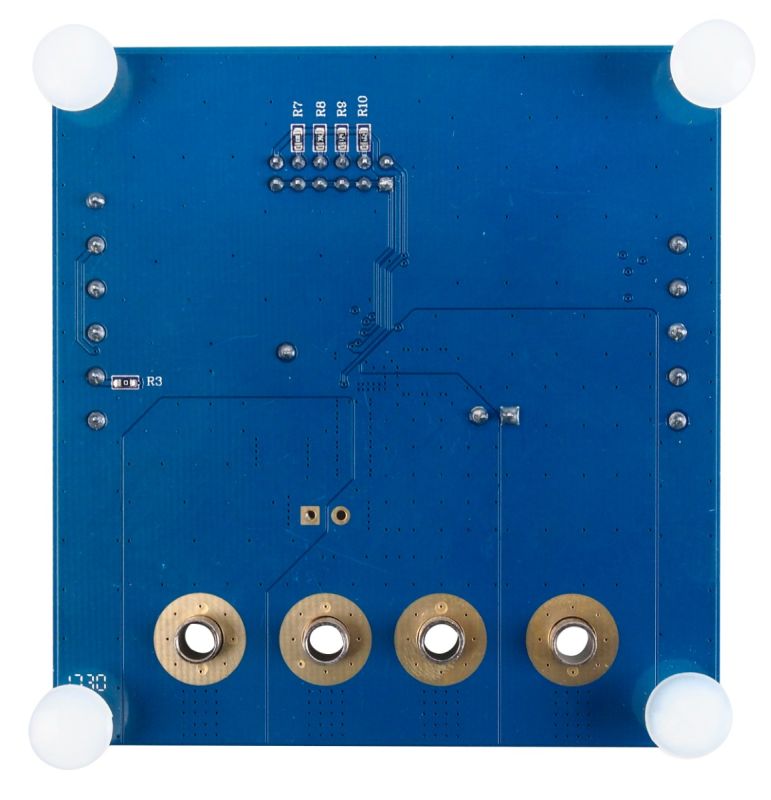

The EVQ8633B-H-LE-00A is an evaluation board designed to demonstrate the capabilities of the MPQ8633B-H, a high-efficiency, monolithic, synchronous step-down converter.

The EVQ8633B-H-LE-00A can deliver up to 20A of continuous load current across a wide operating input voltage (V_IN) range. High efficiency can be achieved across a wide output current (I_OUT) load range.

The MPQ8633B-H utilizes an internally compensated constant-on-time (COT) control mode to provide fast transient response and ease loop stabilization. The MPQ8633B-H is available in a QFN-21 (3mmx4mm) package.

The EVQ8633B-H-LE-00A can be turned on or off via a remote on/off input (EN) referenced to ground. This input is compatible with popular logic devices.

Product Evaluated

Features & Benefits

Wide Input Voltage (V_IN) Range from 2.7V:
- 2.7V to 16V V_IN Range with External 3.3V VCC Bias
- 4V to 16V V_IN Range with Internal VCC Bias or External 3.3V VCC Bias
Differential Output Voltage (V_OUT) Remote Sense
Configurable Accurate Current Limit
Up to 20A Output Current (I_OUT)
Low On Resistance (R_DS(ON)) Integrated Power MOSFETs
Proprietary Switching Loss Reduction Technique
Adaptive Constant-On-Time (COT) Control for Ultra-Fast Transient Response
Stable with Zero-ESR Output Capacitor
0.5% Reference Voltage (V_REF) for 0°C to 70°C Junction Temperature (T_J) Range
1% V_REF for -40°C to +125°C T_J Range
Selectable Pulse-Skip Mode (PSM) or Forced Continuous Conduction Mode (FCCM)
Excellent Load Regulation
V_OUT Tracking and V_OUT Discharge
PGOOD Active Clamped Low during Power Failure
Configurable Soft-Start Time (t_SS) from 1ms
Pre-Biased Start-Up
600kHz, 800kHz, or 1000kHz Selectable Switching Frequency (f_SW)
Non-Latch Over-Current Protection (OCP), Under-Voltage Protection (UVP), Under-Voltage Lockout (UVLO) Protection, Over-Voltage Protection (OVP), and Thermal Shutdown
Adjustable Output between 0.6V to 90% x V_IN, with 5.5V Maximum
Available in a QFN-21 (3mmx4mm) Package

Active Part Numbers:

EVQ8633B-H-LE-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
