EVQ8112A-J-00A

EVQ8112A-J-00A

60V, High-Side Current-Sense Amplifier Evaluation Board, AEC-Q100 Qualified

Datasheet

Description

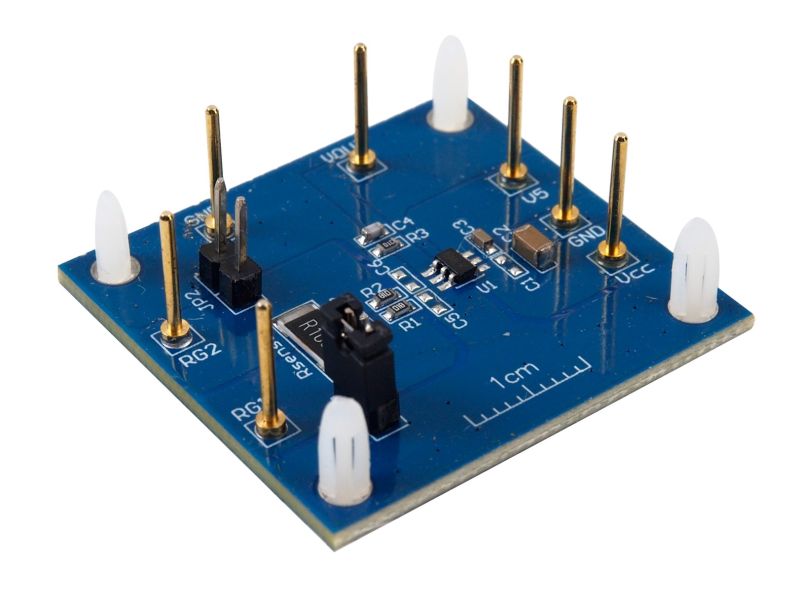

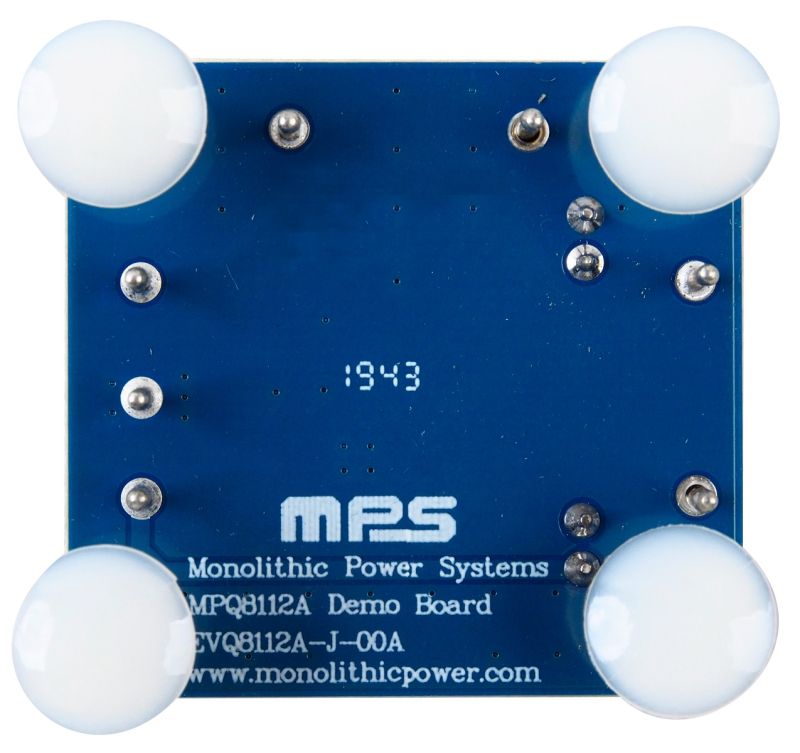

The EVQ8112A-J-00A is an evaluation board designed to demonstrate the capabilities of the MPQ8112A, a low-cost, unipolar, high-side current-sense amplifier. The device operates from a 2.7V to 60V supply voltage (V_CC) and typically consumes 300μA of current. The common-mode input voltage (V_CM) ranges between 0V and 60V, with a 700kHz high bandwidth (BW).

The MPQ8112A converts the differential input voltage to a current output. This current is converted back to a voltage with an external load resistor. The MPQ8112A has an adjustable gain based on the external, common input resistors, as well as the load resistor.

The EV8112A-J-00A is a fully assembled and tested evaluation board. The MPQ8112A is available in a TSOT23-6L package.

Product Evaluated

Features & Benefits

Low-Cost, Compact Current-Sense Solution
700kHz Bandwidth (BW)
300μA Typical Supply Current
2.7V to 60V Operating Supply Voltage (V_CC) Range
0V to 60V Common-Mode Input Voltage (V_CM) Range
0.2μA Typical Shutdown Current
300μV Input Offset Voltage
Available with Adjustable Gain
±1% Current-Sense Gain Accuracy
High-Current Sensing Capabilities
Available in a TSOT23-6L Package
Available in AEC-Q100 Grade 1

Active Part Numbers:

EVQ8112A-J-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$50.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
