EVQ6612A-D-L-00A

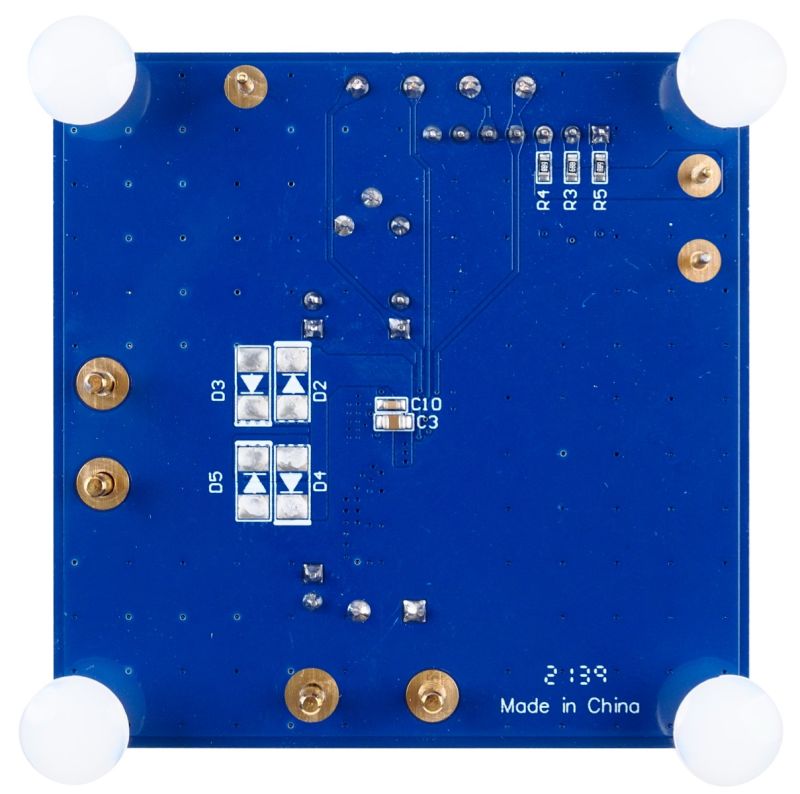

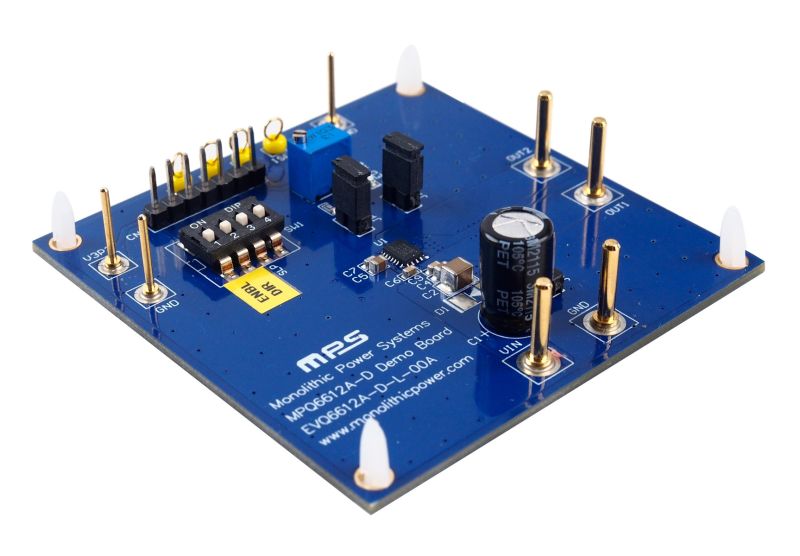

The EVQ6612A-D-L-00A is an evaluation board designed to demonstrate the capabilities of the MPQ6612A-D-AEC1, an H-bridge motor driver used to drive one DC motor, one winding of a stepper motor, or other loads.

The MPQ6612A-D-AEC1 operates from a 4V to 40V supply voltage and can deliver a motor current up to 5A. For the MPQ6612A-D-AEC1, the outputs are controlled through the DIR and ENBL pins, which are applied through a connector on the board.

The MPQ6612A-D-AEC1 is available in a QFN-18 (3mmx4mm) package and is available in AEC-Q100 Grade 1. It is recommended to read the MPQ6612A-D-AEC1 datasheet prior to making any changes to the EVQ6612A-D-L-00A.
