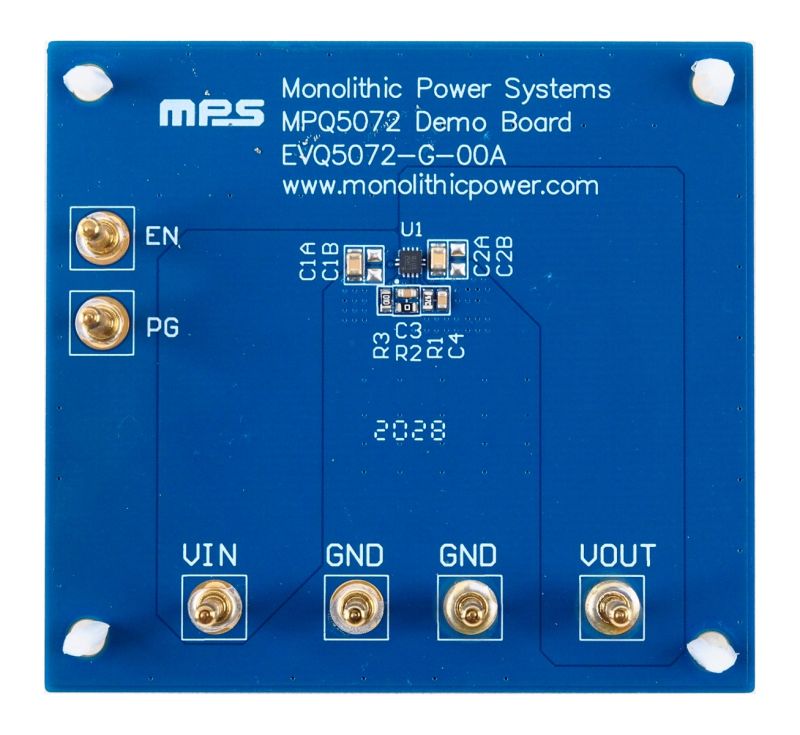

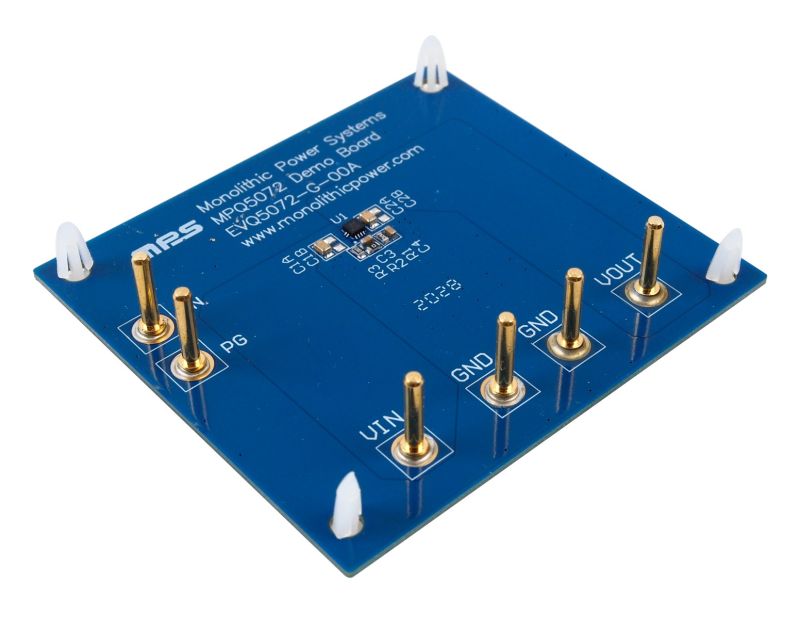

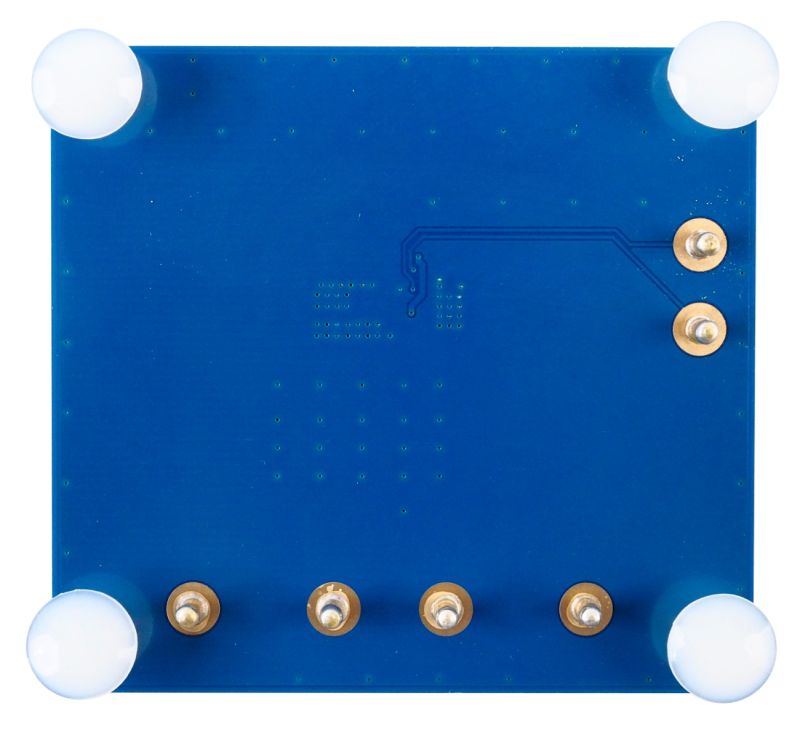

The EVQ5072-G-00A is an evaluation board designed to demonstrate the capabilities of the MPQ5072, a low on resistance (RDS(ON)) load switch with configurable current limiting. It can deliver up to 1A of continuous current across a wide input voltage (VIN) range.
The MPQ5072’s sense MOSFET topology allows the device to limit the maximum load output. The current limit is controlled by an external resistor connected from the ILIM pin to ground (GND).
The MPQ5072’s ultra-small package and low RDS(ON) provide a highly efficient and space-saving solution for notebooks, tablets, and other portable device applications. The MPQ5072 is available in a QFN-12 (2mmx2mm) package.
The EVQ5072-G-00A is a fully assembled and tested evaluation board. It generates 3V to 5.5V of output voltage (VOUT) and 1A of continuous current across a wide 0.5V to 5.5V input range.
