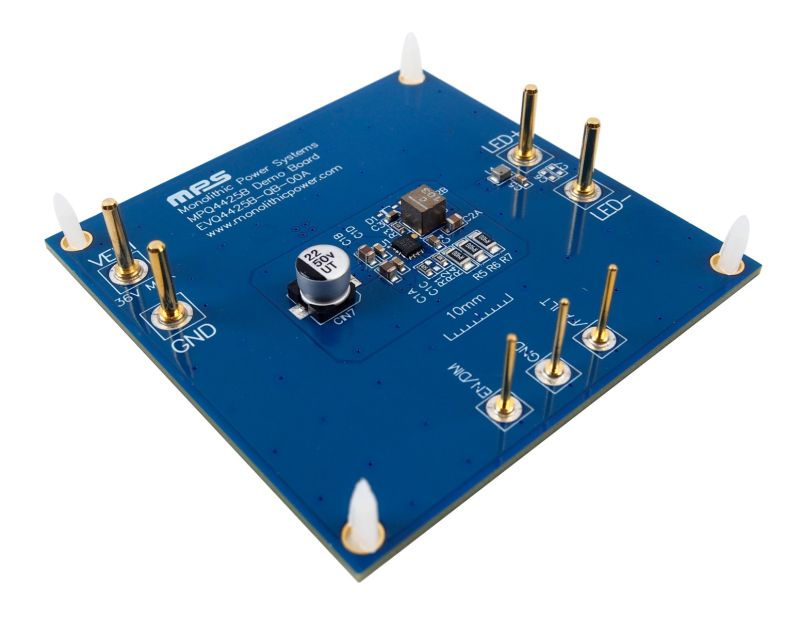

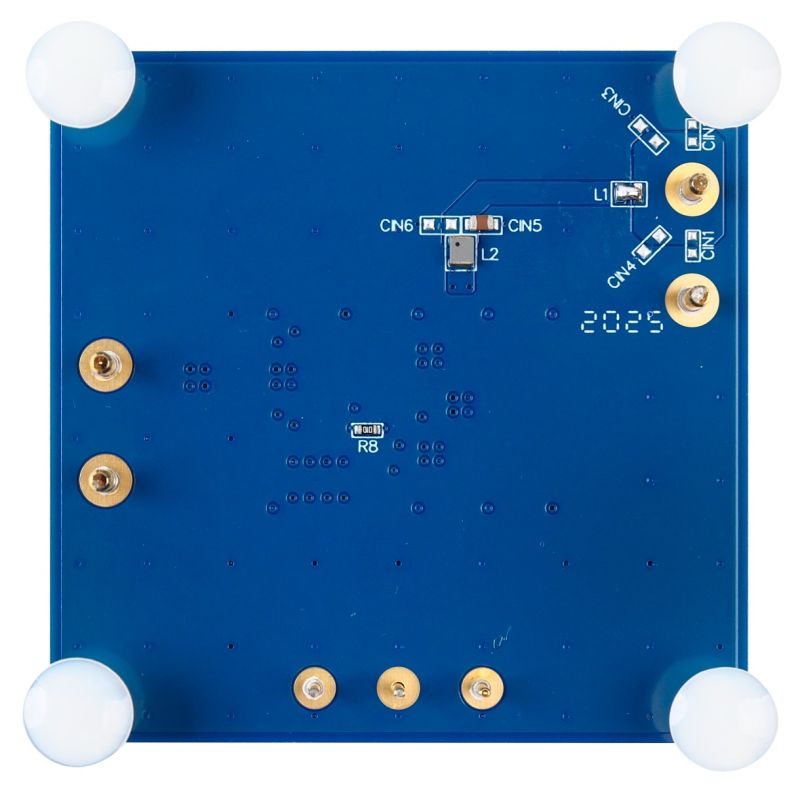

1.5A, 36V, 400kHz, High-Efficiency, Synchronous, Step-Down LED Driver Evaluation Board

Datasheet

Description

The EVQ4425B-QB-00A is an evaluation board designed to demonstrate the capabilities of the MPQ4425B, a high-efficiency, synchronous, rectified, step-down switch-mode LED driver with integrated internal high-side and low-side power MOSFETs (HS-FET and LS-FET, respectively).

The MPQ4425B offers a compact solution that can achieve up to 1.5A of continuous output current, with excellent load and line regulation across a wide input supply range. Synchronous mode offers high efficiency during all operations.

The EVQ4425B-QB-00A is a fully assembled and tested evaluation board that generates load currents up to 1.5A across a 4V to 36V input voltage (V_IN) range.

Product Evaluated

Features & Benefits

Wide 4V to 36V Operating Input Voltage (V_IN) Range
Internal 85mΩ High-Side MOSFET (HS-FET) and 50mΩ Low-Side MOSFET (LS-FET)
Synchronous Mode for High-Efficiency
400kHz Default Switching Frequency
Pulse-Width Modulation (PWM) Dimming (100Hz Minimum Dimming Frequency)
Forced Continuous Conduction Mode (FCCM)
0.2V Reference Voltage
Internal Soft Start (SS)
Fault Indication for LED Short/Open and Thermal Shutdown
Over-Current Protection (OCP) with Valley Current Detection
Thermal Shutdown
Available in a QFN-13 (2.5mmx3mm) Package
CISPR25 Class 5 Compliant
Available in AEC-Q100 Grade 1
