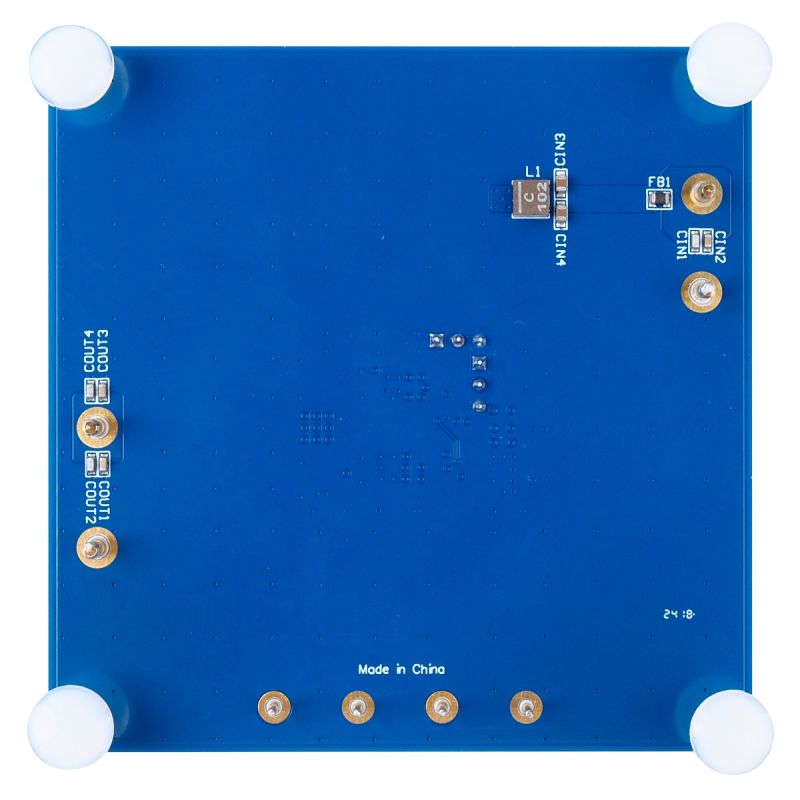

The EVQ4324-L-4000-00A evaluation board is designed to demonstrate the capabilities of the MPQ4324GLE-4000-AEC1, a configurable-frequency (350kHz to 2.5MHz), synchronous, step-down switching regulator with integrated, internal high-side and low-side MOSFETs (HS-FET and LS-FET, respectively).

The MPQ4324GLE-4000-AEC1 provides up to 4A peak of highly efficient output current (I_OUT) with peak current mode control. The wide 3.3V to 36V input voltage (V_IN) range and 42V load dump tolerance accommodate a variety of step-down applications in automotive input environments. A 1μA shutdown mode quiescent current (I_Q) allows the device to be used in battery-powered applications.

High power conversion efficiency across the entire load range is achieved by scaling down the switching frequency (f_SW) under light-load conditions to reduce switching and gate driver losses.

An open-drain power good (PG) signal indicates whether the output is within 94.5% to 105.5% of its nominal voltage. Frequency foldback prevents inductor current (I_L) runaway during start-up. Thermal shutdown provides reliable, fault-tolerant operation.

A high duty cycle and low-dropout (LDO) mode provide support for automotive cold-crank conditions.

The EVQ4324-L-4000-00A is fully assembled and tested. The MPQ4324GLE-4000-AEC1 is available in a QFN-12 (3mmx4mm) package with wettable flanks. It is available in AEC-Q100 Grade 1.
