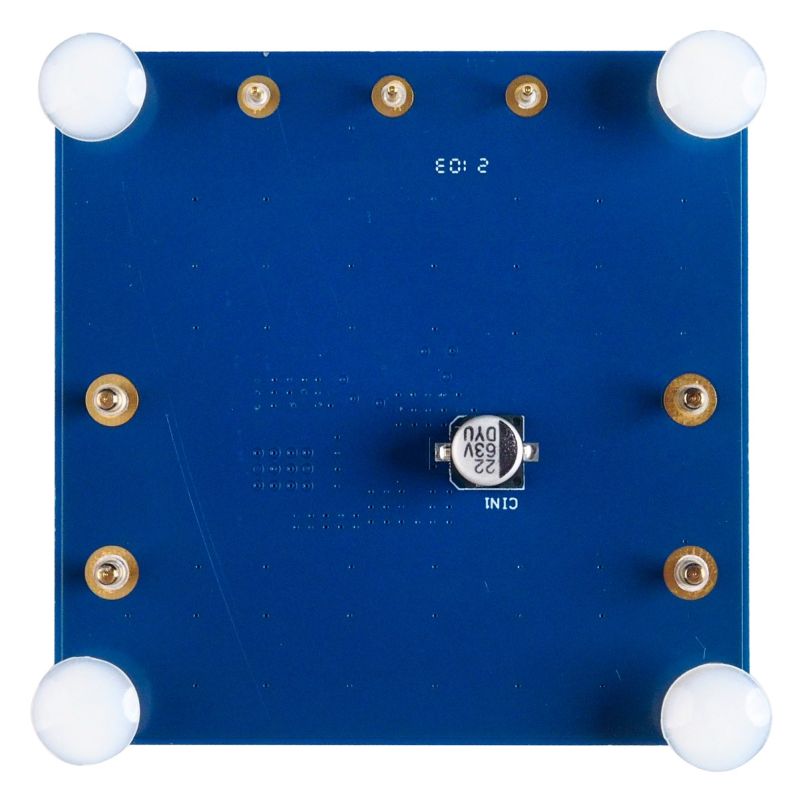

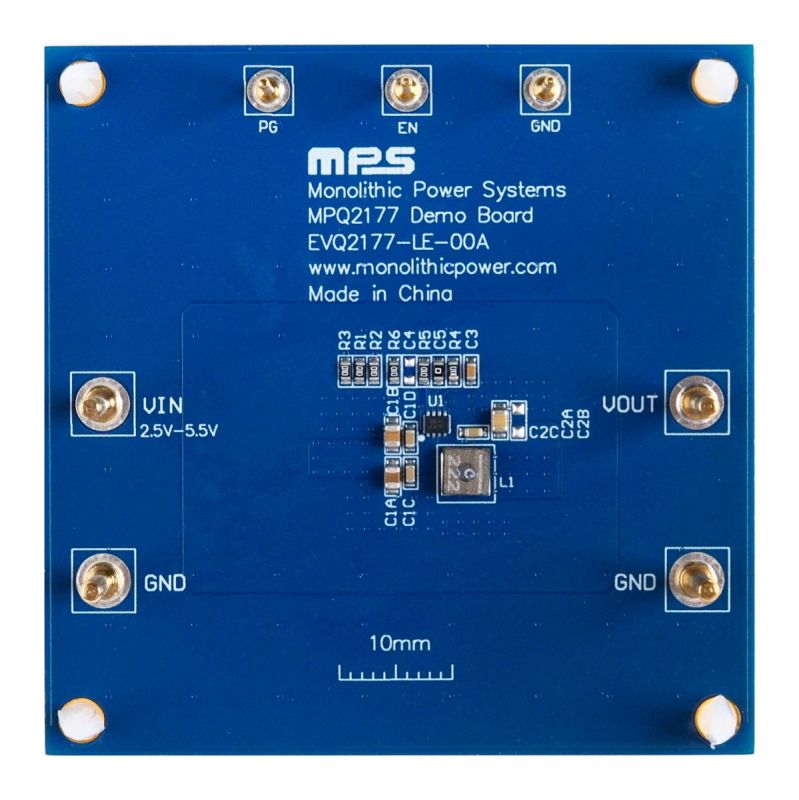

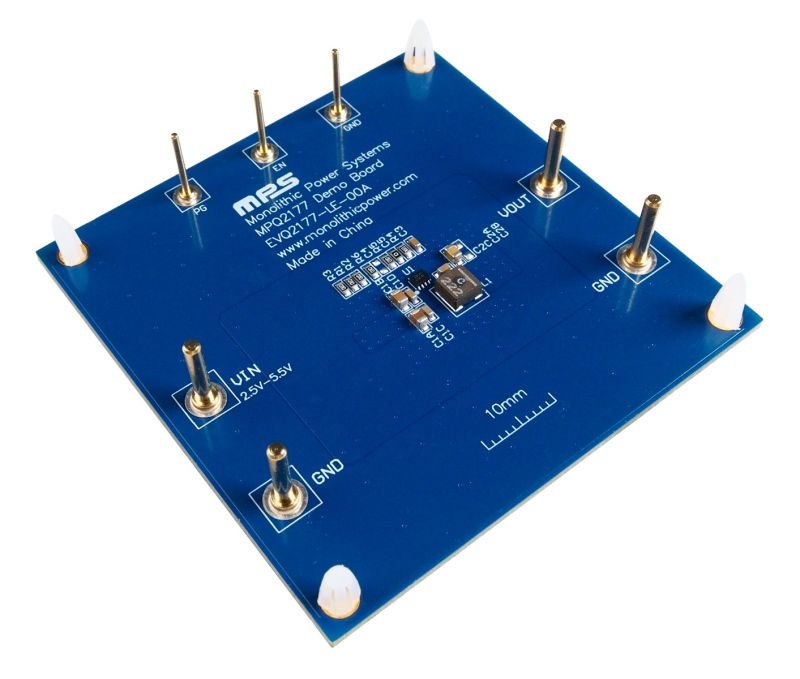

The EVQ2177-LE-00A is an evaluation board designed to demonstrate the capabilities of the MPQ2177, a monolithic, step-down, switch-mode converter with integrated internal power MOSFETs.

The EVQ2177-LE-00A achieves 1A of continuous output current (I_OUT) across a 2.5V to 5.5V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.6V.

Fault protections include cycle-by-cycle current limiting and thermal shutdown. The EVQ2177-LE-00A is a fully assembled and tested evaluation board. It generates a 1.2V V_OUT at load currents up to 1A across a 2.5V to 5.5V V_IN range.

The MPQ2177 is available in a compact QFN-8 (1.5mmx2mm) package.
