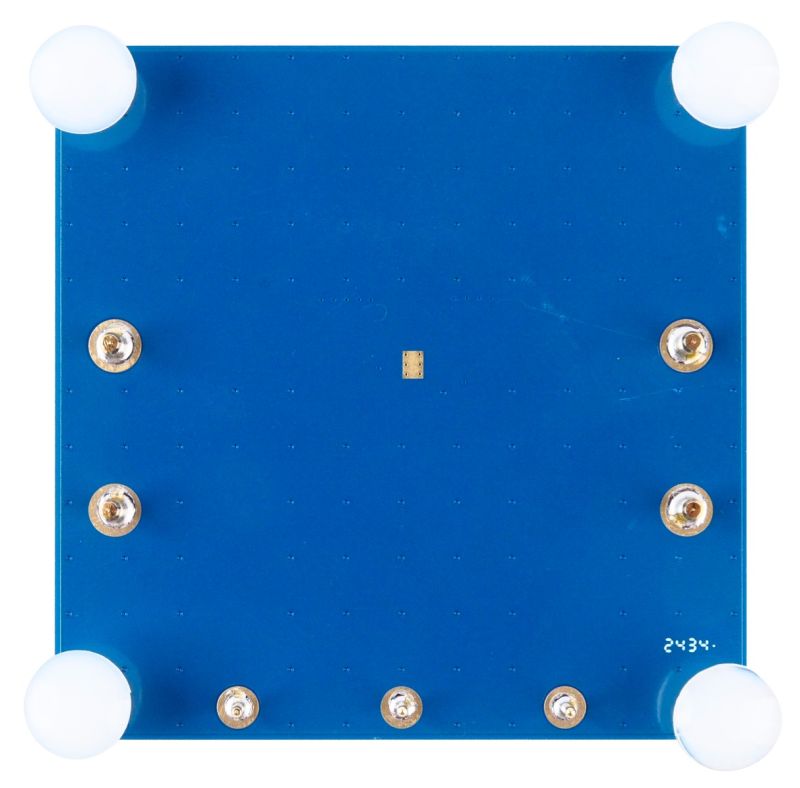

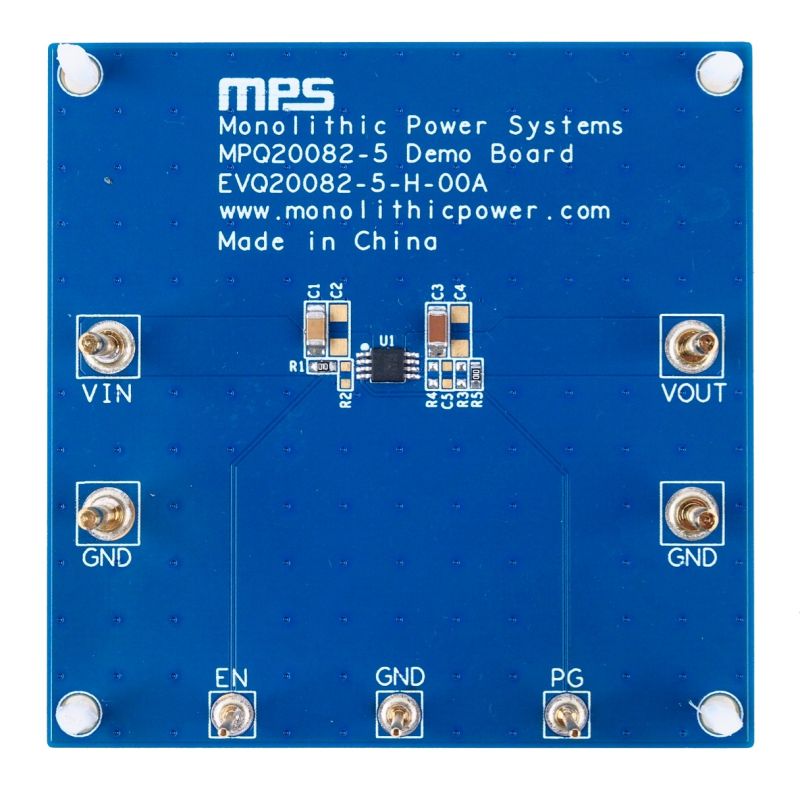

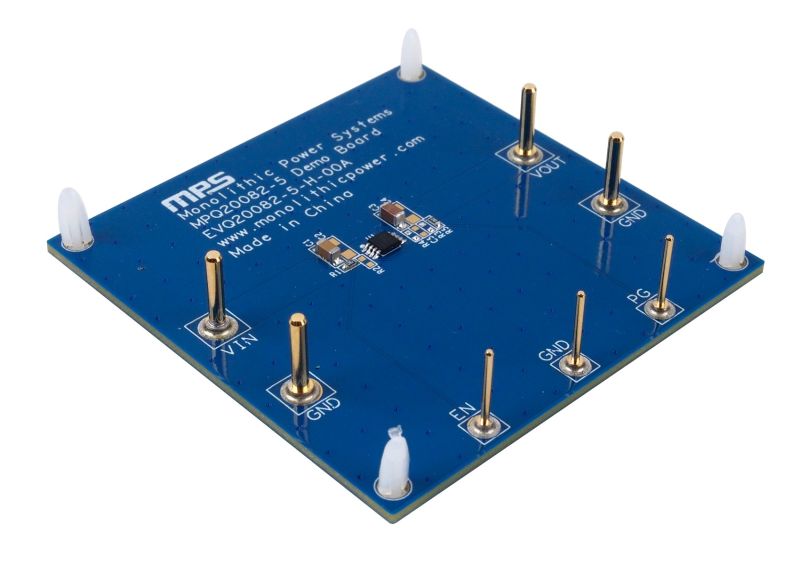

The EVQ20082-5-H-00A is an evaluation board designed to demonstrate the capabilities of the MPQ20082GH-5-AEC1, a low quiescent current (I_Q) linear regulator that supplies power to systems with high-voltage batteries.

The MPQ20082-5-AEC1 features a wide 3V to 40V input voltage (V_IN) range, fixed 5V output voltage (V_OUT), a low dropout voltage, and a low I_Q. The low I_Q and low dropout voltage allow the device to operate at low power levels. This makes the MPQ20082-5-AEC1 ideal for low-power microcontroller units (MCUs) and battery-powered equipment.

The MPQ20082-5-AEC1’s output current (I_OUT) is limited internally, and the device is protected against short-circuit, overload, and over-temperature (OT) conditions.

Full protection features include thermal shutdown (TSD) and current-limiting fault protection.

The EVQ20082-5-H-00A is a fully assembled and tested evaluation board. It generates a 5V V_OUT at load currents up to 300mA from a 6V to 40V V_IN range.

It is recommended to read the datasheet for the MPQ20082-5-AEC1 prior to making any changes to the EVQ20082-5-H-00A.
