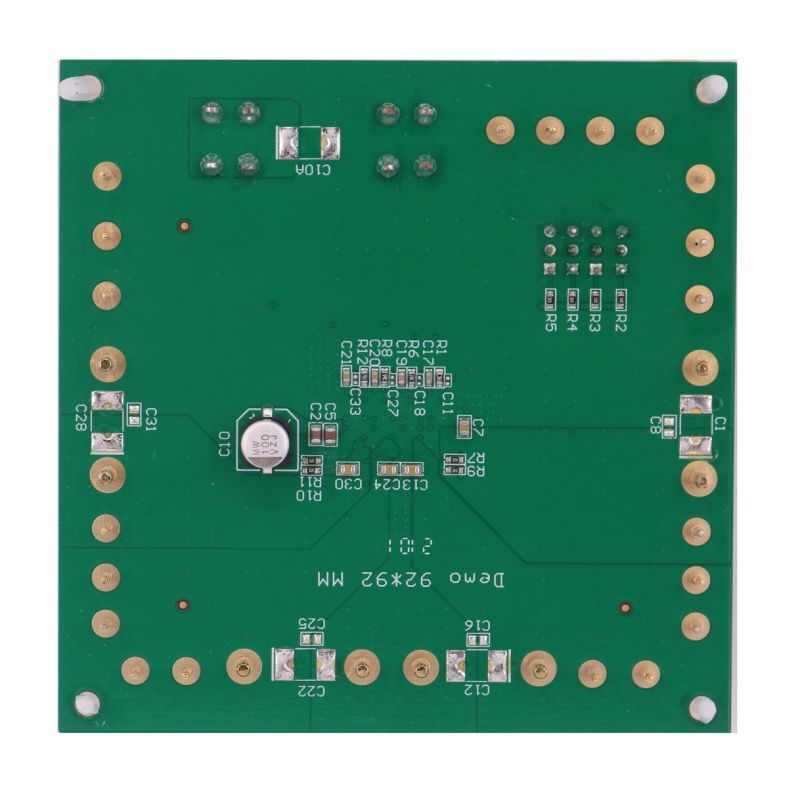

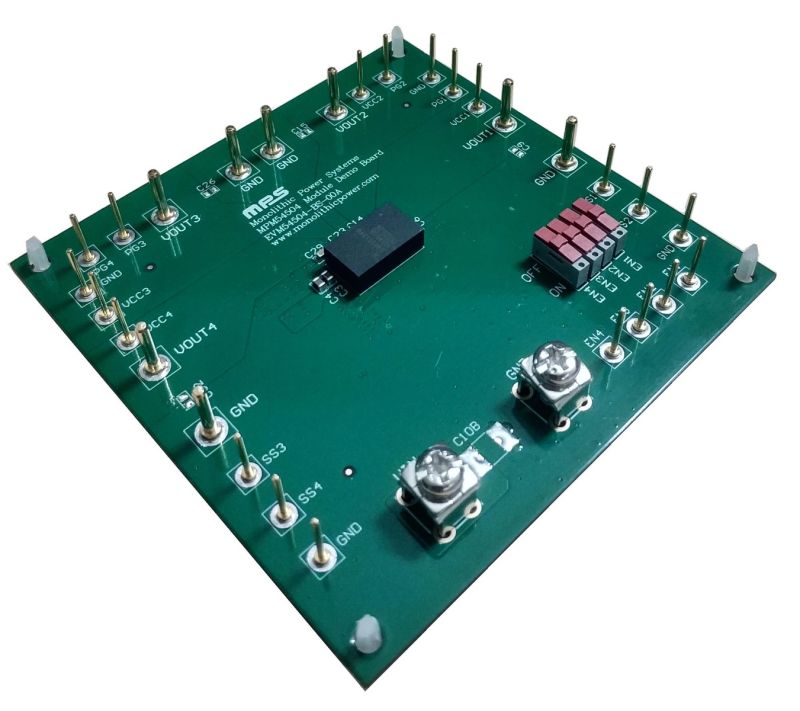

The EVM54504-BS-00A is an evaluation board designed to demonstrate the capabilities of the MPM54504, a four-channel output, step-down power module. Each channel can deliver up to 5A of continuous output current (I_OUT) across a wide input voltage (V_IN) range (3V to 16V), with excellent load and line regulation.

The MPM54504 integrates monolithic power stages and inductors that support passive components to achieve high efficiency. It also features internal auto-compensation, and does not require any external compensation components. Constant-on-time (COT) control provides fast load transient response, simple loop design, and tight output regulation.

The MPM54504’s protection features include short-circuit protection (SCP), over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), over-temperature protection (OTP), and thermal shutdown (TSD). The MPM54504 is available in an FCMBGA (9mmx15mmx5mm) package.
