EVM4710-PA-00B

EVM4710-PA-00B

6V, 1A, 2MHz, Synchronous Buck-Boost Power Module Evaluation Board

Datasheet

Description

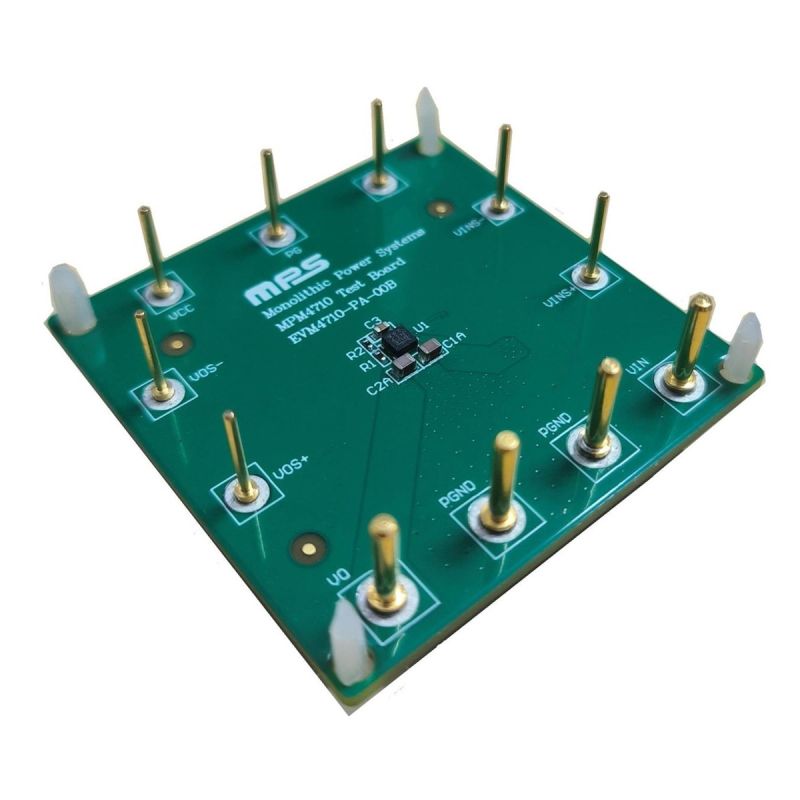

The EVM4710-PA-00B is an evaluation board designed to demonstrate the capabilities of the MPM4710, a high-efficiency, buck-boost power module with an integrated inductor.

The fixed 2MHz switching frequency (f_SW) enables the use of small external components, and the internal compensation and soft start (SS) minimize the external component count. The MPM4710 uses current mode control with a fixed pulse-width modulation (PWM) frequency for optimal stability and transient response.

It is recommended to read the MPM4710 datasheet prior to making any changes to the EVM4710-PA-00B.

Product Evaluated

Features & Benefits

1.8V Minimum Start-Up Input Voltage (V_IN)
1.2V to 5.5V Operating V_IN Range
1.5V to 5.5V Output Voltage (V_OUT) Range
Typical 1A, Max 2A Output Current (I_OUT)
Fixed 2MHz or External Synchronous Switching Frequency (f_SW)
Selectable Pulse-Skip Mode (PSM) or Pulse-Width Modulation (PWM) Mode
Typical 25μA Quiescent Current (I_Q)
Load Disconnect during Shutdown
Internal Soft Start (SS) and Compensation
Power Good (PG) Indication
Short-Circuit Protection (SCP) with Hiccup Mode
Thermal Shutdown
Available in an ECLGA-14 (2.5mmx2.5mmx1.2mm) Package

Active Part Numbers:

EVM4710-PA-00B

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
