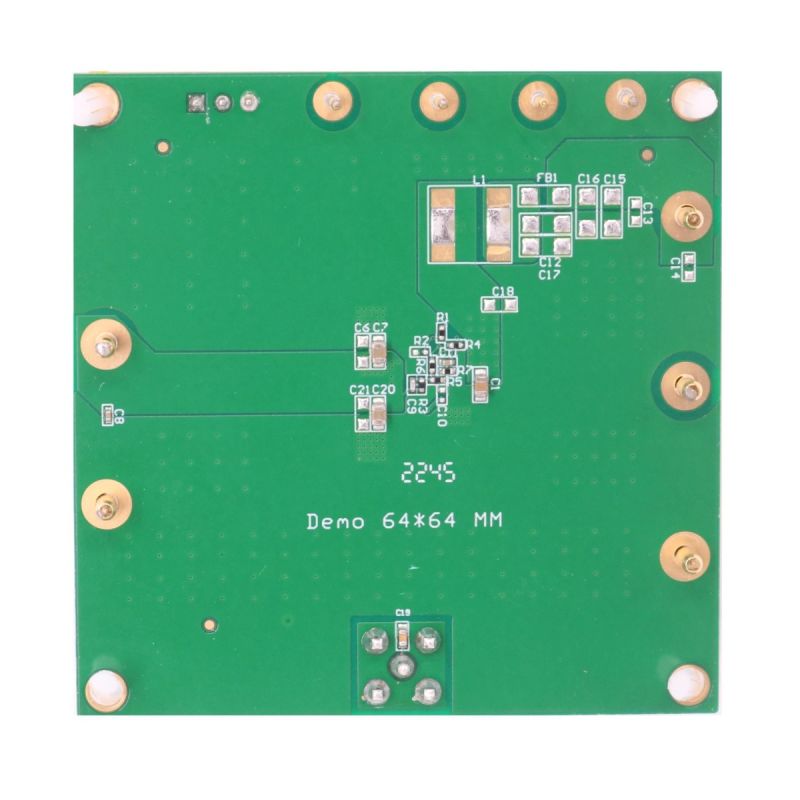

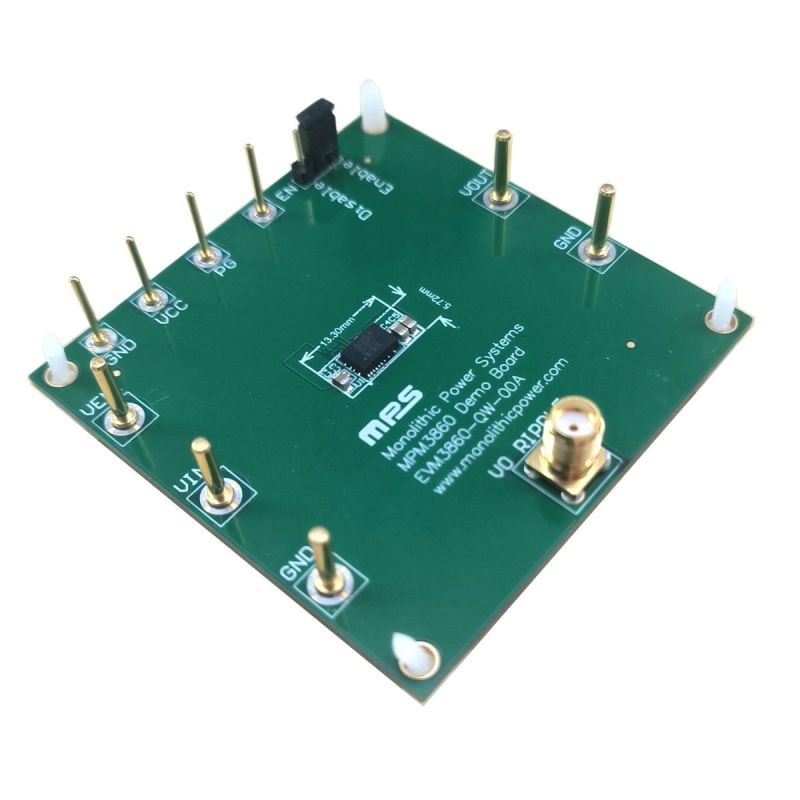

The EVM3860-QW-00A is an evaluation board designed to demonstrate the capabilities of the MPM3860, a fully integrated, high-frequency, synchronous, rectified step-down power module with an internal inductor. The MPM3860 offers a very compact solution to achieve 6A of continuous output current (I_OUT) across a wide input range, with excellent load and line regulation. The MPM3860 features synchronous mode for higher efficiency across the I_OUT load range.

Constant-on-time (COT) control operation provides very fast transient response and easy loop design, as well as very tight output regulation.

Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown. The MPM3860 is available in a QFN-24 (4mmx6mm) package.
