EVM3824C-PA-01A

EVM3824C-PA-01A

6V, 2A, Ultra-Small, Low-Noise, Single-Output, Step-Down Power Module Evaluation Board

Datasheet

Description

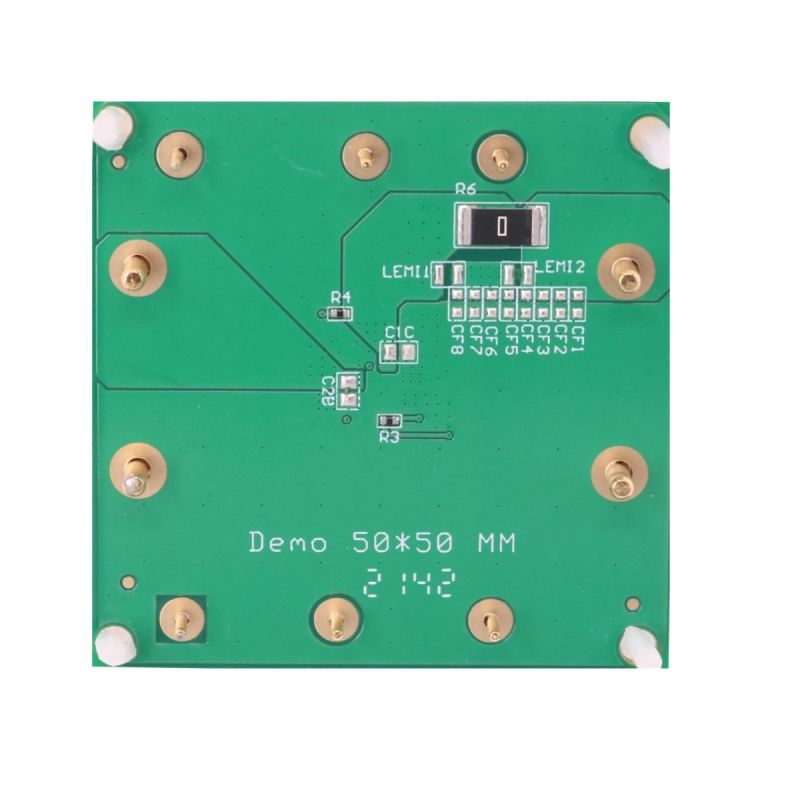

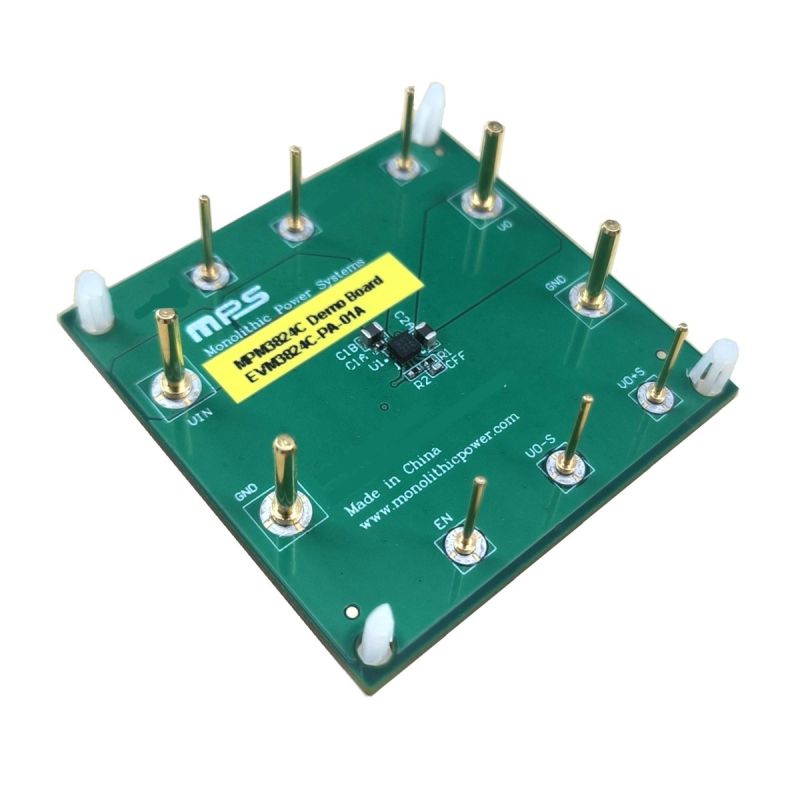

The EVM3824C-PA-01A is an evaluation board designed to demonstrate the capabilities of the MPM3824C, a high-efficiency, low-noise, single-output, step-down power module.

The MPM3824C has a 1.25MHz fixed switching frequency (f_SW). The device’s high f_SW and constant-on-time control (COT) control provide fast transient response, high efficiency, and easy loop stabilization.

The MPM3824C is available in an ultra-small ECLGA-14 (2.5mmx2.5mmx1.2mm) package. For more information, refer to the MPM3824C datasheet.

Product Evaluated

Features & Benefits

Wide 2.75V to 6V Operating Input Voltage (V_IN) Range
Adjustable Output Voltage (V_OUT) from 0.6V
Up to 2A of Continuous Output Current (I_OUT)
100% Duty Cycle in Dropout
Forced Continuous Conduction Mode (FCCM)
Enable (EN) and Power Good (PG) for Power Sequencing
Cycle-by-Cycle Over-Current Protection (OCP)
Short-Circuit Protection (SCP) with Hiccup Mode
Only Four External Components Required
Available in an ECLGA-14 (2.5mmx2.5mmx1.2mm) Package

Active Part Numbers:

EVM3824C-PA-01A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
