EVM3824-PA-01A

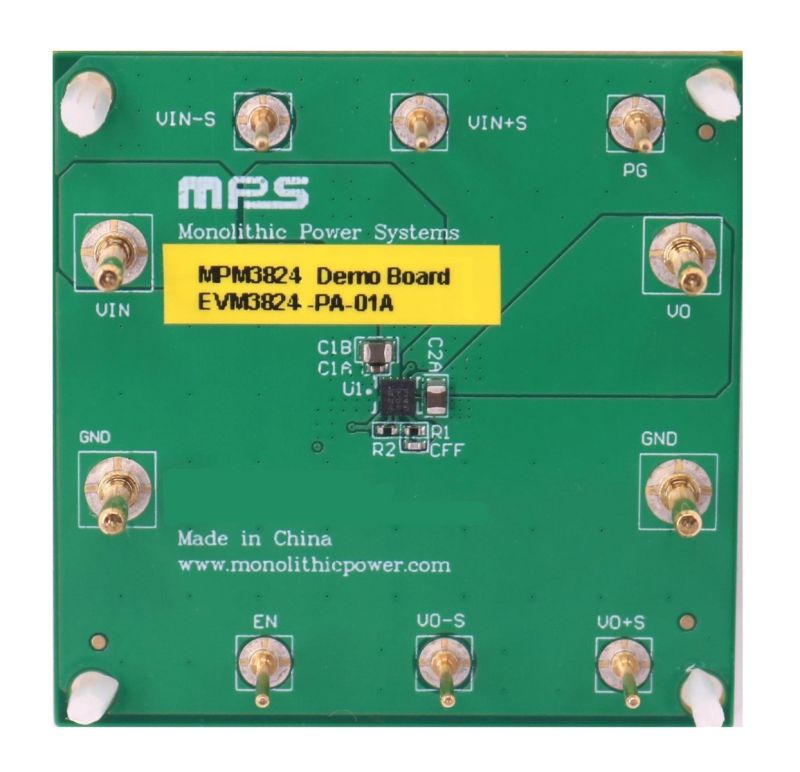

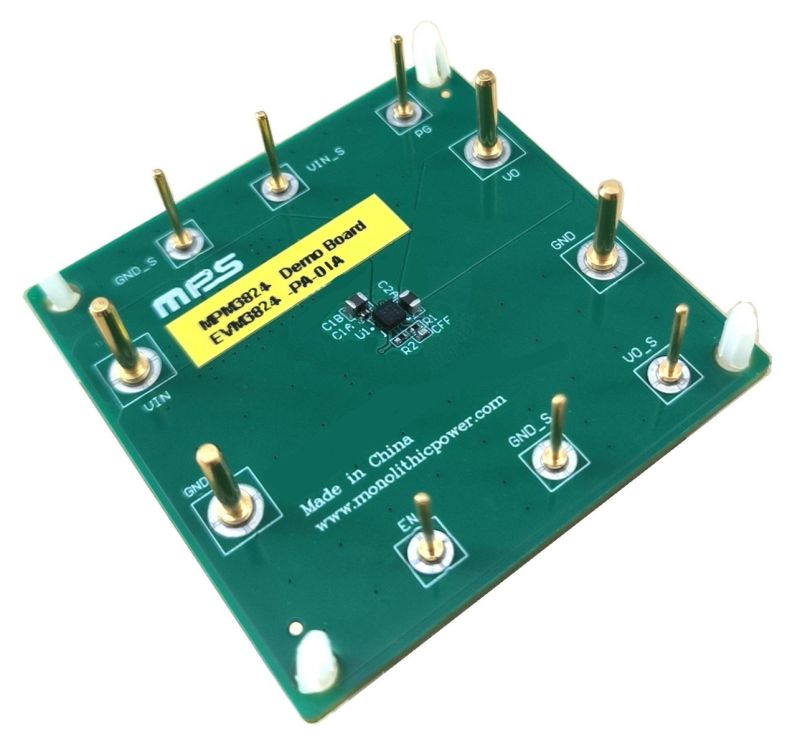

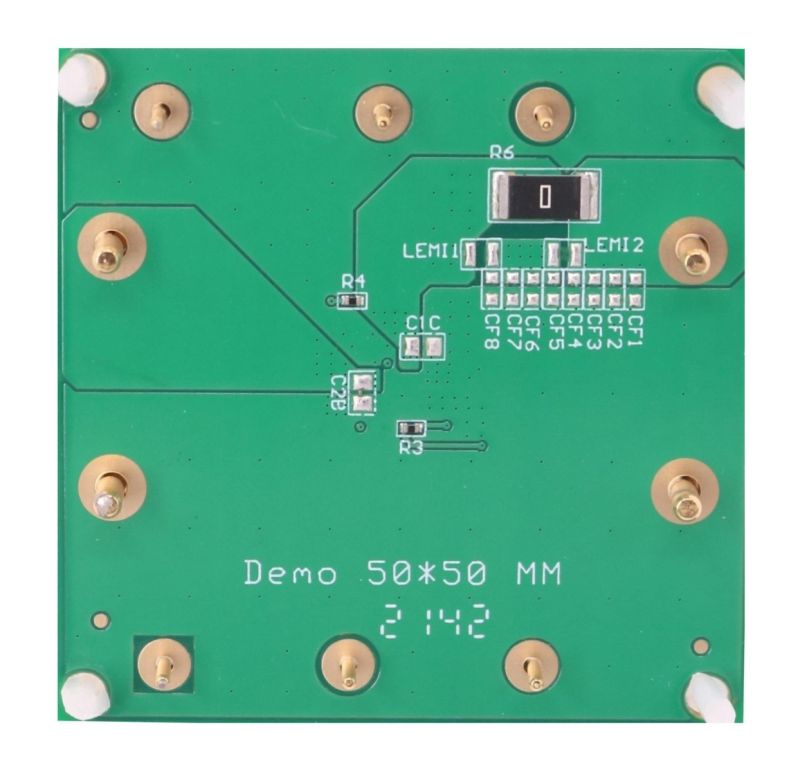

The EVM3824-PA-01A is an evaluation board designed to demonstrate the capabilities of the MPM3824, a synchronous, step-down power module with an integrated inductor. The MPM3824 achieves 2A of continuous output current (I_OUT) from a 2.75V to 6V input voltage (V_IN) range with excellent load and line regulation.

The MPM3824 works in advanced asynchronous modulation (AAM) mode under light loads, and it can switch to continuous conduction mode (CCM) under heavy loads for a small output voltage ripple. Full protection features include cycle-by-cycle current limiting, short-circuit protection (SCP) with hiccup mode, and thermal shutdown.

It is recommended to read the MPM3824 datasheet prior to making any changes to the EVM3824-PA-01A.
