6V Input, 1.2 MHz, 2A Module Synchronous Step-Down Converter With Integrated Inductor Evaluation Board

  • Quantity Price
  • 1
    $25.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Learn about our Evaluation Kit
Talk to an Engineer or get a Quote
View distributor pricing and availability

Product Description

The EVM3820-QV-00A is used for demonstrating the performance of MPS’s MPM3820 a low voltage high switching frequency step-down switcher with built-in power MOSFETs and power inductor. MPM3820 provides up to 2A continuous highly efficient output with constant-on-time control for fast loop response.

High power efficiency over a wide load range is achieved by scaling down the switching frequency at light load to reduce the switching related loss by constant on time control. Short circuit and thermal shutdown provides reliable, fault-tolerant operation.

MPM3820 is available in QFN 3.0x5.0x1.6mm package.

Product Features

  • Wide 2.7V to 6V OperatingInputRange
  • Fixed and Adjustable Output from 0.6V
  • 3.0mm x 5.0mm x 1.6mm QFN Package
  • Total Solution Size 8.5mm x 4.5 mm
  • Up to 2A Continuous Output Current
  • 100% Duty Cycle in Dropout
  • Ultra Low IQ: 40μA
  • EN and Power Good for Power Sequencing
  • Cycle-by-Cycle Over-Current Protection
  • Short Circuit Protection with Hiccup Mode
  • Adjustable Output Only Needs 4 External Components - 2 Ceramic Capacitors and FB Divider Resistors
  • Fixed Output Only Needs Input and Output Capacitors


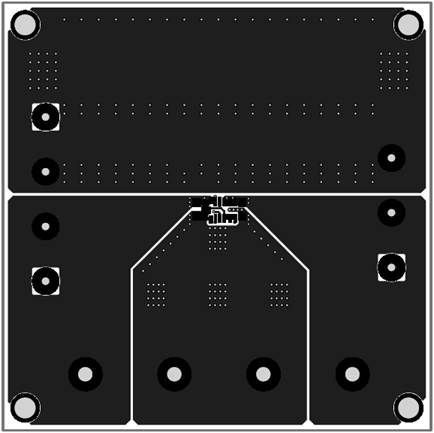

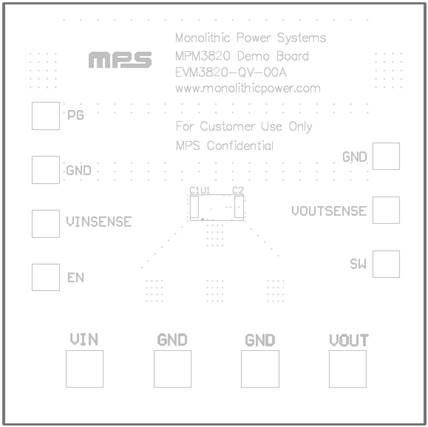

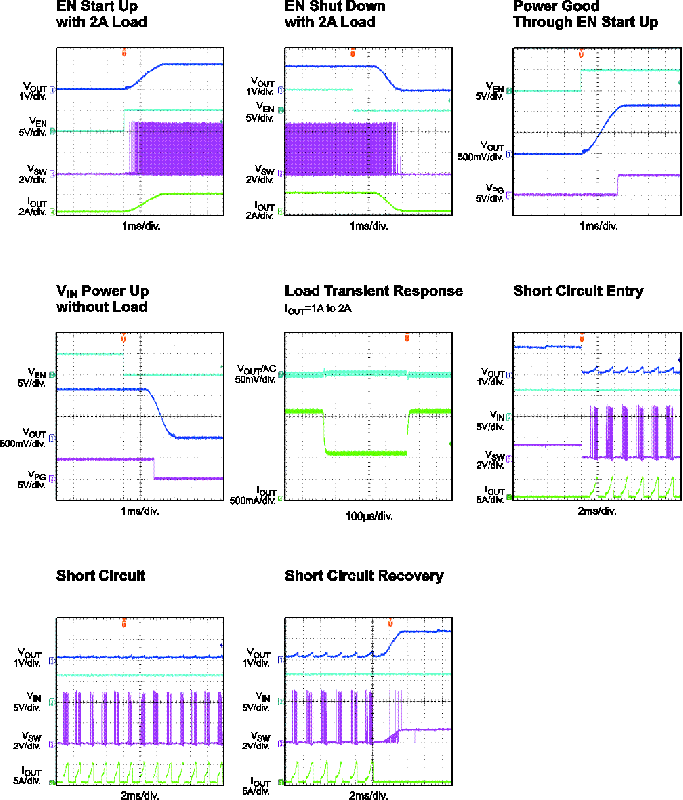

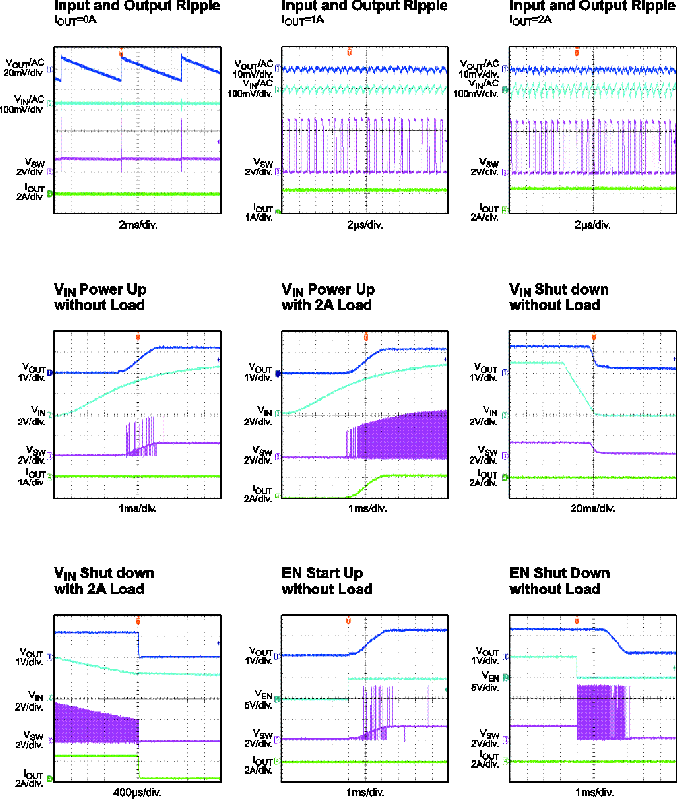

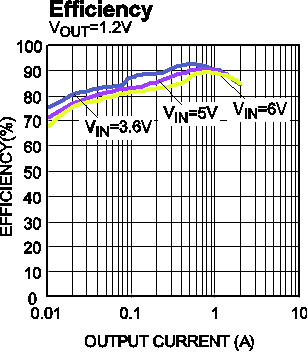

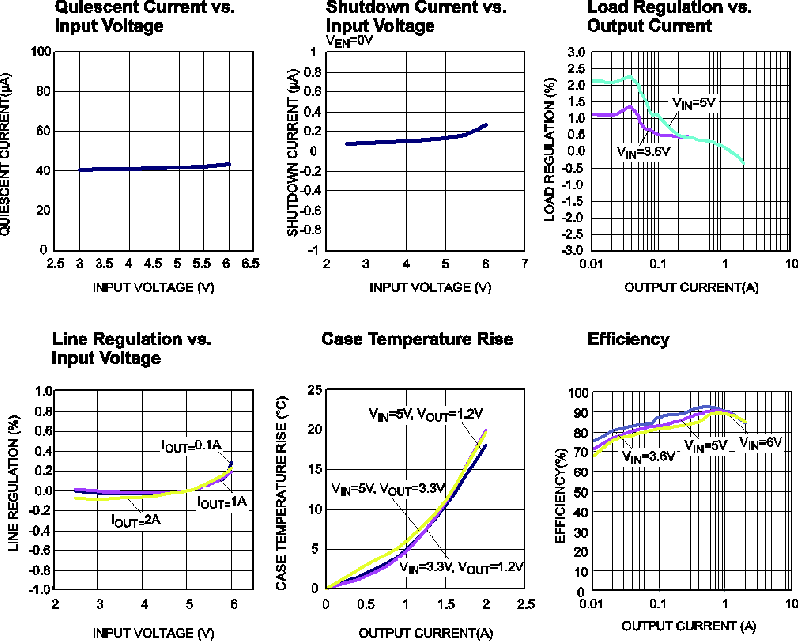

6V Input, 2A Module Synchronous Step-down Converter with Integrated Inductor

Free Evaluation Board

The MPM3820 is a monolithic step-down switch mode converter with built-in internal power MOSFETs and inductor. The DC-DC module has a small surface mount 3mm x 5mm x 1.6mm QFN package. It achieves 2A continuous output current from a 2.7V to 6V input voltage with excellent load and line regulation. The MPM3820 is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) Battery. The output voltage can be regulated as low as 0.6V. Only input, output capacitors and FB resistors are needed to complete the design. The Constant-On-time (COT) control scheme provides fast transient response, high light­load efficiency and easy loop stabilization. Fault condition protection includes cycle­by­cycle current limit and thermal shutdown. The MPM3820 requires a minimum number of readily available standard external components and is available in an ultra-small QFN20 (3mmx5mm) package.

Quality Policy, Certificates & Reliability Reports
All MPS parts are lead-free, halogen-free and adhere to the RoHS directive. See Environmental section for details.
