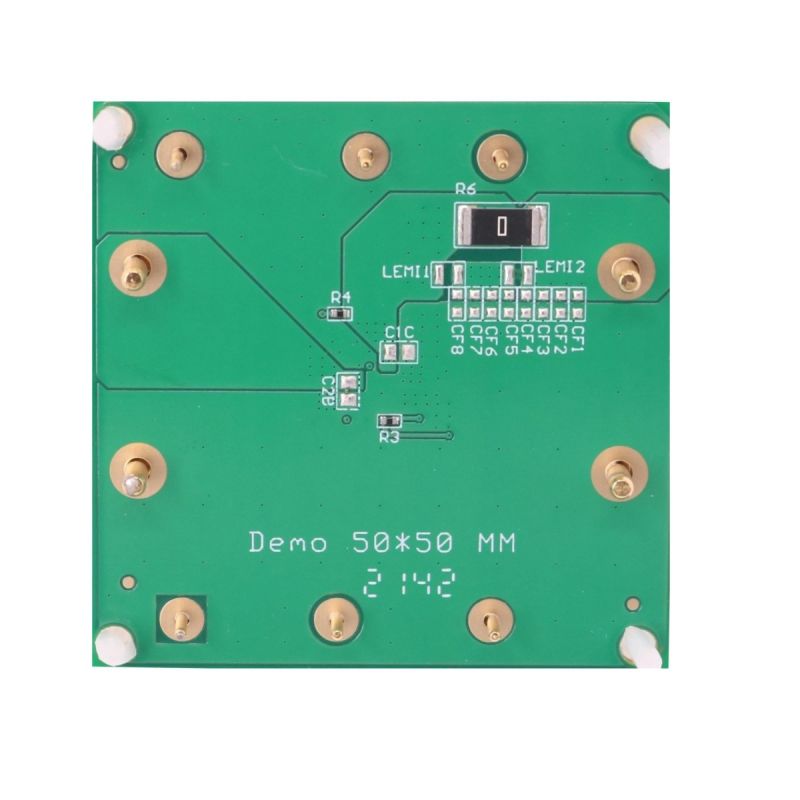

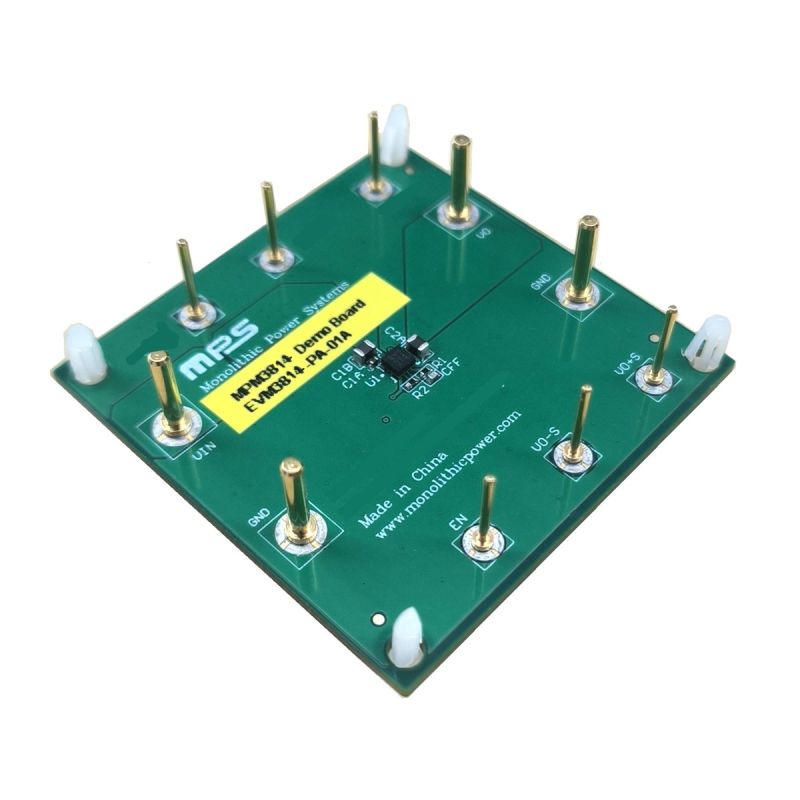

The EVM3814-PA-01A is an evaluation board designed to demonstrate the capabilities of the MPM3814, a synchronous, step-down power module with an integrated inductor. The MPM3814 achieves 1A of continuous output current (I_OUT) across a 2.75V to 6V input voltage (V_IN) range, with excellent load and line regulation.

The MPM3814 works in advanced asynchronous modulation (AAM) mode at light loads, and it can switch to continuous conduction mode (CCM) at heavy loads with small voltage ripple. Full protections include cycle-by-cycle current limiting, short-circuit protection (SCP) with hiccup mode, and thermal shutdown.

It is recommended to read the MPM3814 datasheet prior to making any changes to the EVM3814-PA-01A.
