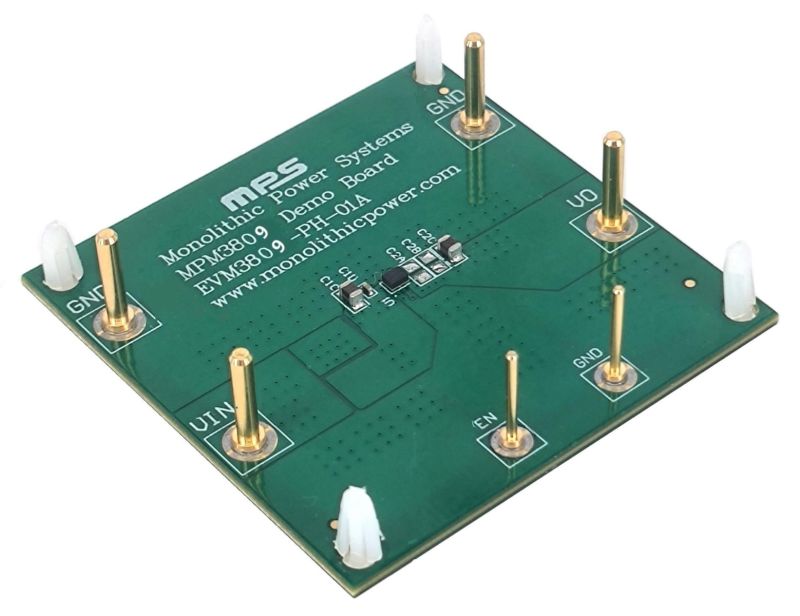

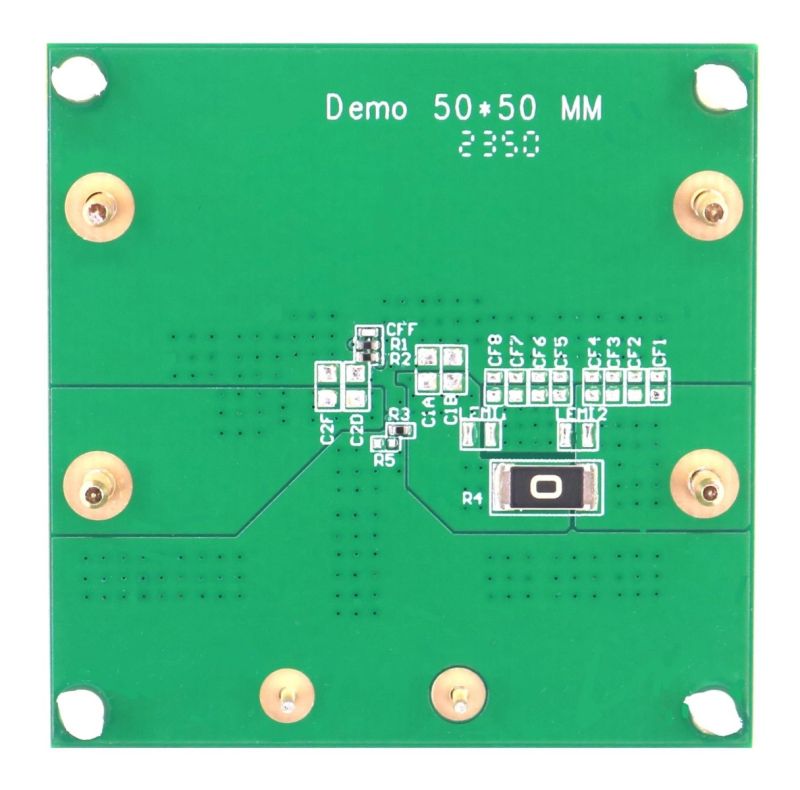

The EVM3809-PH-01A evaluation board is designed to demonstrate the capabilities of the MPM3809, a fully integrated, high-efficiency, synchronous, step-down power module. The device provides up to 0.6A of output current (I_OUT).

The MPM3809 features internally compensated constant-on-time (COT) control to provide fast transient response and ease loop stabilization. The switching frequency (f_SW) is fixed at 2.4MHz when entering continuous conduction mode (CCM). Refer to the MPM3809 datasheet for more detailed information.

It is recommended to read the datasheet for the MPM3809 prior to making any changes to the EVM3809-PH-01A.
