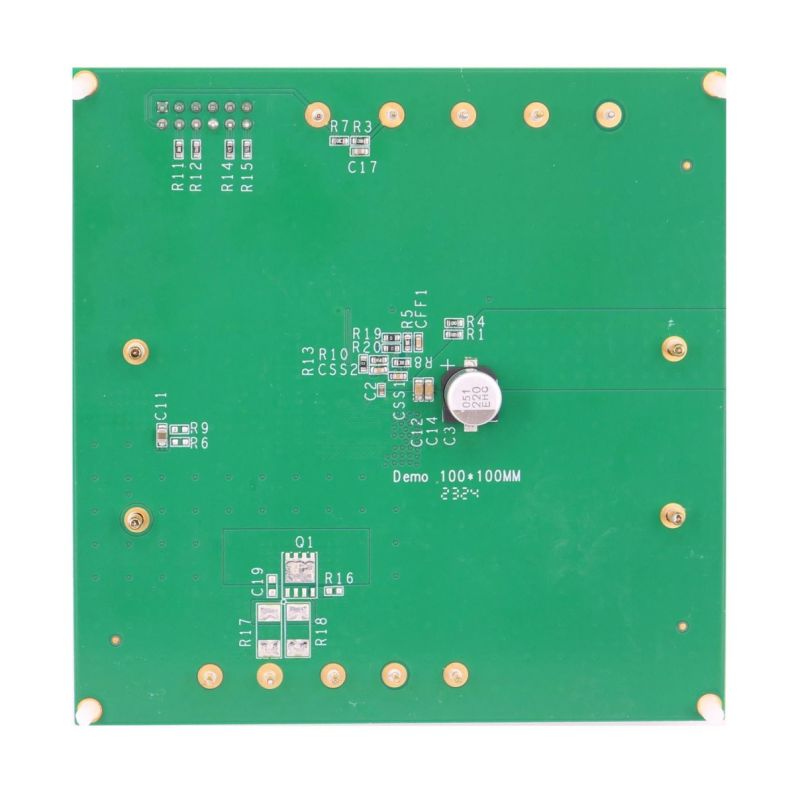

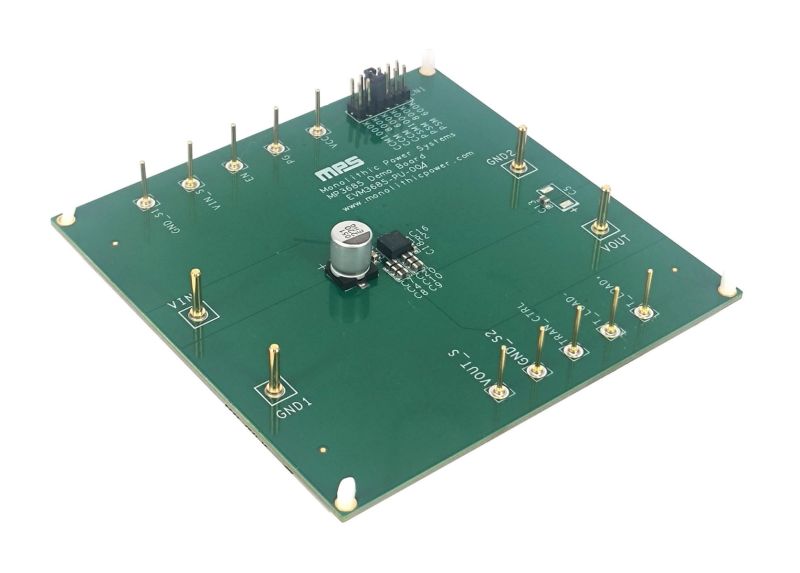

The EVM3685-PU-00A evaluation board is designed to demonstrate the capabilities of the MPM3685, a synchronous, step-down power module with an integrated inductor. The MPM3685 achieves up to 15A of continuous output current (I_OUT) from a 2.7V to 16V input voltage (V_IN) range.

The MPM3685 features a configurable soft-start (SS) time (t_SS) with one capacitor. An open-drain power good (PG) signal indicates whether the output voltage (V_OUT) is within the nominal voltage range.

Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and over-temperature protection (OTP).

It is recommended to read the MPM3685 datasheet prior to making any changes to the EVM3685-PU-00A.
