EVL8794-LE-00A

EVL8794-LE-00A

20A, 16V, High-Efficiency, Synchronous Step-Down Converter Evaluation Board

MPL

Datasheet

Description

MPL

Optimized Performance with MPS Inductor

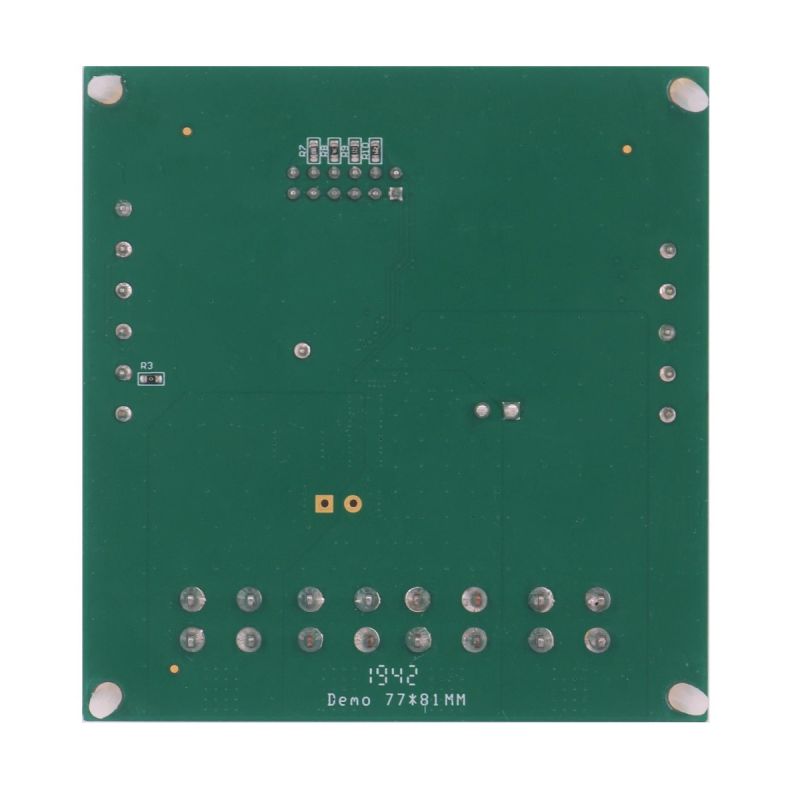

The EVL8794-LE-00A is an evaluation board designed to demonstrate the capabilities of the MP8794. The MP8794 is a high-efficiency, monolithic, synchronous step-down converter. The evaluation board can deliver 20A of continuous load current (I_LOAD) across a wide operating input range. High efficiency can be achieved across a wide output current (I_OUT) load range.

The MP8794 adopts internally compensated constant-on-time (COT) control mode that provides fast transient response and eases loop stabilization. This evaluation board can be turned on or off via a remote on/off input (EN) that is referenced to ground. This input is compatible with popular logic devices.

The MP8794 is available in a QFN-21 (3mmx4mm) package.

Product Evaluated

Features & Benefits

Wide Input Voltage (V_IN) Range from 2.7V:

2.7V to 16V with External 3.3V VCC Bias
4V to 16V with Internal VCC Bias or External 3.3V VCC Bias

Differential Output Voltage (V_OUT) Remote Sense
Configurable Accurate Current Limit Level
20A Output Current (I_OUT)
Low R_DS(ON) Integrated Power MOSFETs
Adaptive COT for Ultra-Fast Transient Response
Stable with Zero-ESR Output Capacitor
Excellent Load Regulation
V_OUT Tracking
V_OUT Discharge
PGOOD Active Clamped to a Low Level during Power Failure
Configurable Soft-Start Time (t_SS) from 1ms
Pre-Biased Start-Up
Selectable Switching Frequency (f_SW): 600kHz, 800kHz, or 1000kHz
Non-Latch OCP, OVP, UVP, UVLO, Thermal Shutdown
Output Adjustable from 0.6V to 90% of V_IN, Up to 5.5V Max
Available in a QFN-21 (3mmx4mm) Package

Active Part Numbers:

EVL8794-LE-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
