EVL8017-L-00B

EVL8017-L-00B

5V Output, IEEE 802.3af-Compliant, PoE PD Solution with PSR Flyback Converter Evaluation Board

MPL

MPL

Datasheet

Description

MPL

Optimized Performance with MPS Inductor

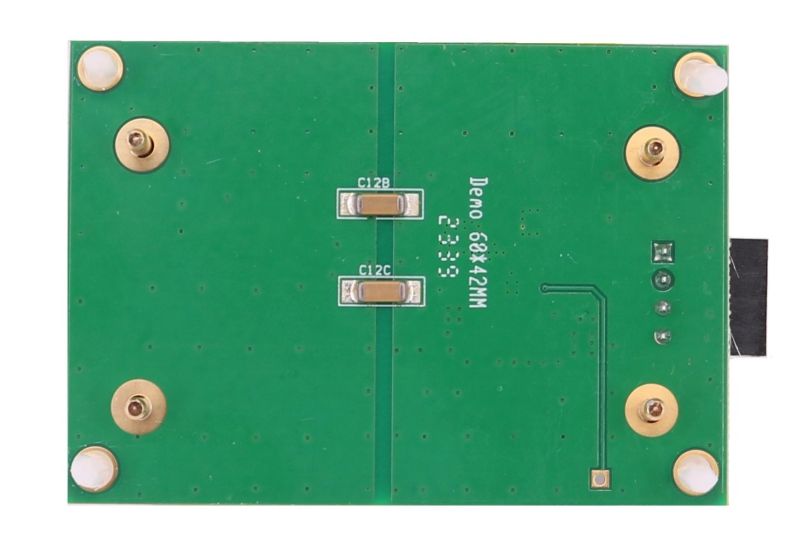

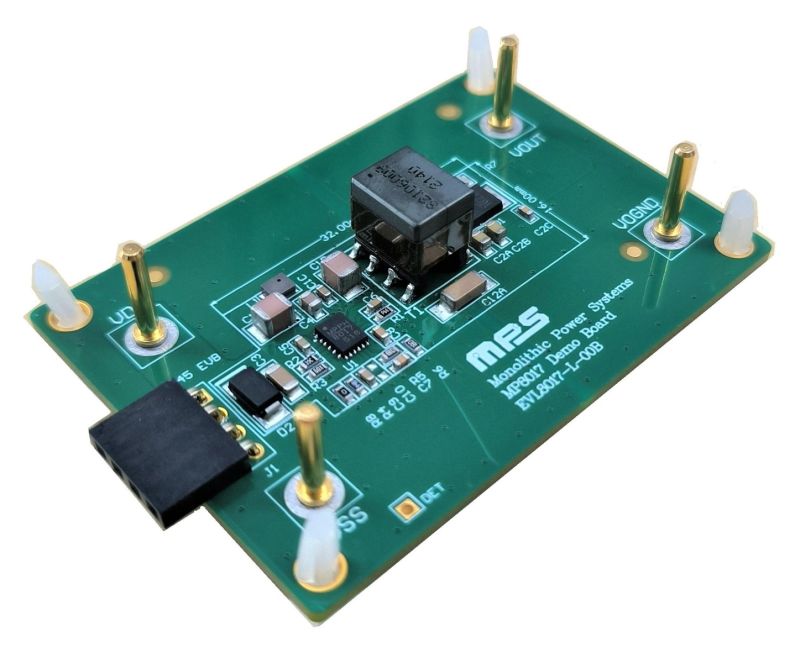

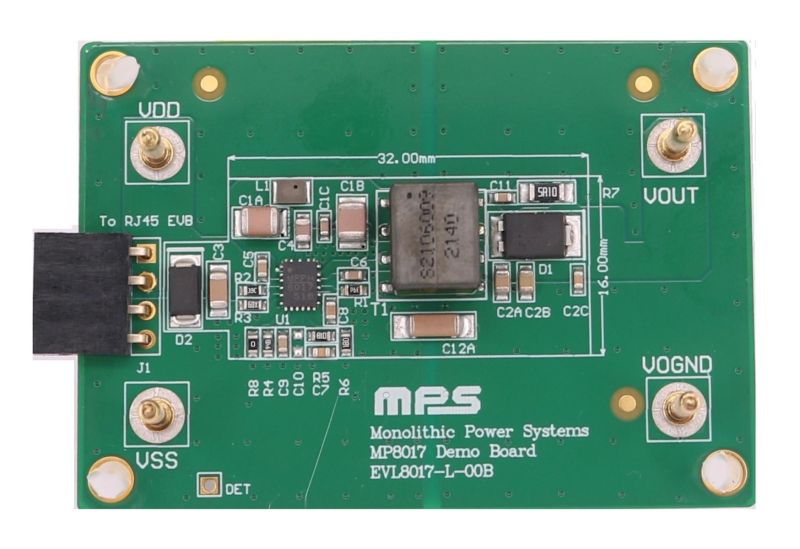

The EVL8017-L-00B is an evaluation board designed to demonstrate the capabilities of the MP8017, an integrated, IEEE 802.3af-compatible, power over Ethernet (PoE) powered device (PD). The device also includes a PD interface and a flyback power converter.

The MP8017 provides a front-end solution for small-sized, 13W, isolated PoE applications. The PD interface features IEEE 802.3af capability. The MP8017 flyback converter is specifically designed for active-clamp, primary side regulation (PSR) in a flyback topology, which supports a small size and high efficiency. The MP8017 can also be set to secondary-side regulation (SSR) for active-clamp flyback topologies.

It is recommended to read the MP8017 datasheet prior to making any changes to the EVL8017-L-00B.

Product Evaluated

Features & Benefits

IEEE 802.3af-Compliant
100V, 0.5Ω Powered Device (PD) Input MOSFET
Active-Clamp Primary-Side Regulation (PSR) Flyback without Auxiliary Winding
Active-Clamp Secondary-Side Regulation (SSR) Flyback through Optocoupler
0.37Ω and 0.75Ω Integrated Flyback MOSFETs
Configurable Frequency Up to 650kHz
1.5A Switching Current Limit
Output Diode Compensation in PSR Mode
Configurable Soft-Start Time (t_SS)
EMI Reduction with Frequency Dithering
Overload Protection (OLP), Over-Voltage Protection (OVP), and Over-Temperature Protection (OTP) with Hiccup Mode
Available in a QFN-19 (3mmx4mm) Package
Optimized Performance with MPS Inductor MPL-AT Series

Active Part Numbers:

EVL8017-L-00B

Recommended Inductors

Optimized Performance: EV8017-RJ45-00A

Optimized Performance:
EV8017-RJ45-00A

Low-Profile Molded Inductor 10µH

Inductor Selector Tool

*Based on Nominal Values

Design Resources

Symbol, Footprint & 3D Model

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

MPS RJ45 connection board required

Yes, add EV8017-RJ45-00A $25.00

No, I already have one

Quantity

100 Max per Company.
Limited Inventory to support product development.
