EVL2491C-QB-00A

MPL

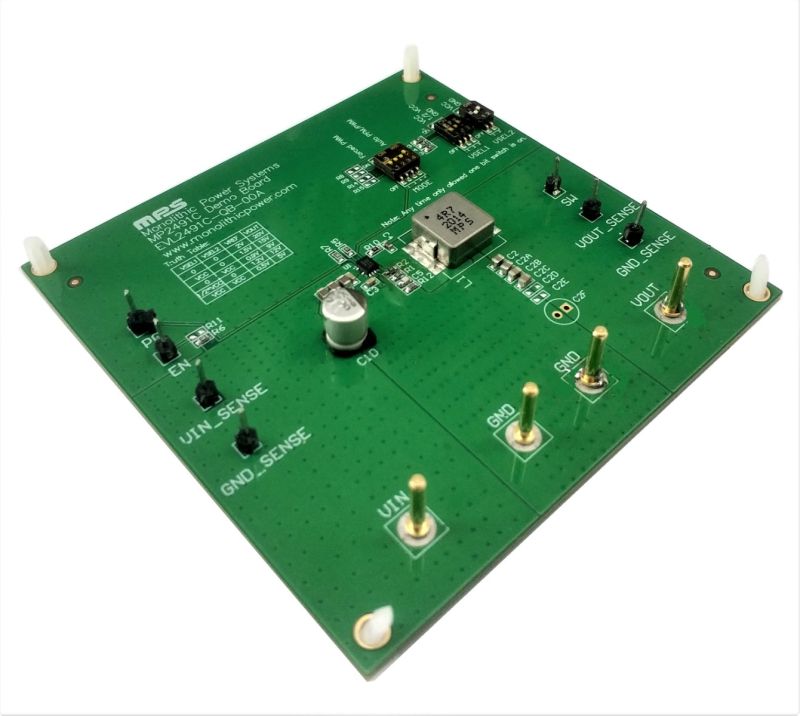

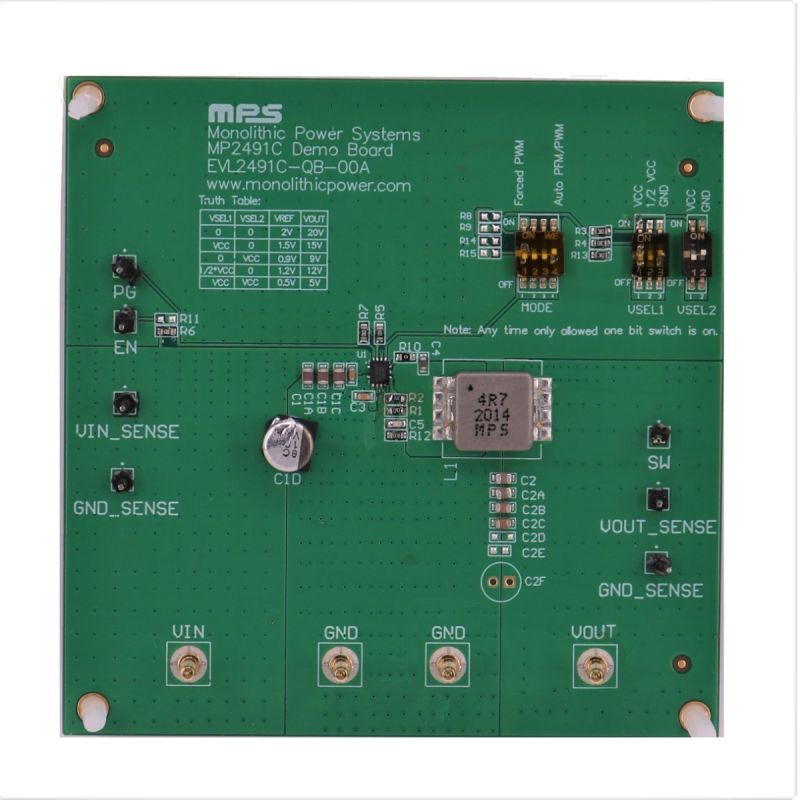

The EVL2491C-QB-00A is an evaluation board designed to demonstrate the capabilities of the MP2491C, a high-voltage, step-down converter with a configurable current limit and output voltage (V_OUT) scaling. The MP2491C can achieve up to 6A of continuous output current (I_OUT) across a wide input voltage (V_IN) range, with excellent load and line regulation.

Constant-on-time (COT) control provides fast transient response and easy loop design, as well as very tight output regulation.

Full protection features include over-current protection (OCP), output over-voltage protection (OVP), current limiting with hiccup mode, and thermal shutdown.

The MP2491C requires a minimal number of readily available, standard external components, and is available in a QFN-13 (2.5mmx3mm) package.
