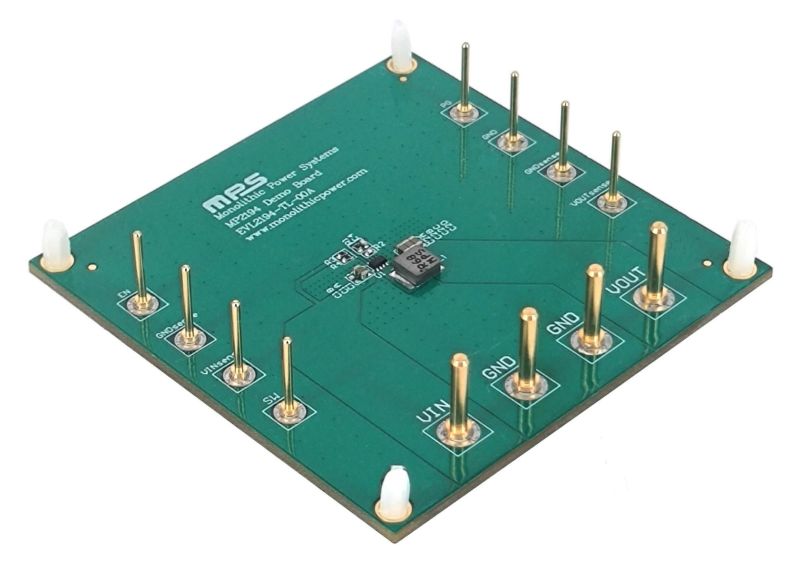

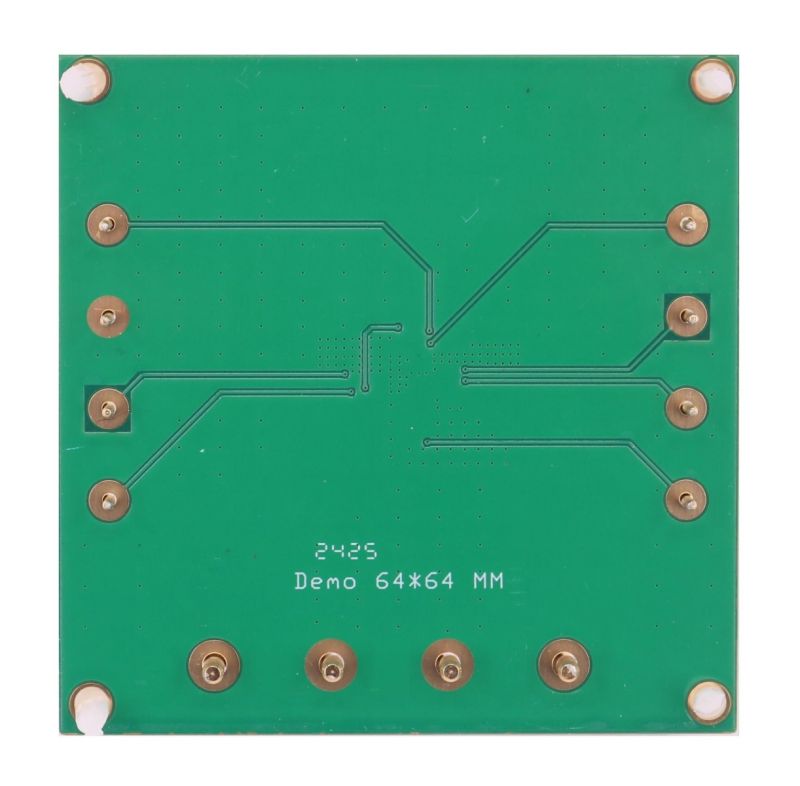

The EVL2194-TL-00A evaluation board is designed to demonstrate the capabilities of the MP2194, a monolithic, step-down switch-mode converter with built-in internal power MOSFETs. The MP2194 can achieve up to 4A of continuous output current (I_OUT) from a 2.4V to 5.5V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.4V.

Constant-on-time (COT) control provides fast transient response, easy loop design, and tight output regulation. Full protection features include over-current protection (OCP), current limiting with hiccup mode, and thermal shutdown.

The MP2194 requires a minimal number of readily available, standard external components, and it is available in an ultra-small SOT583 package.
