EVL2193-C-00B

MPL

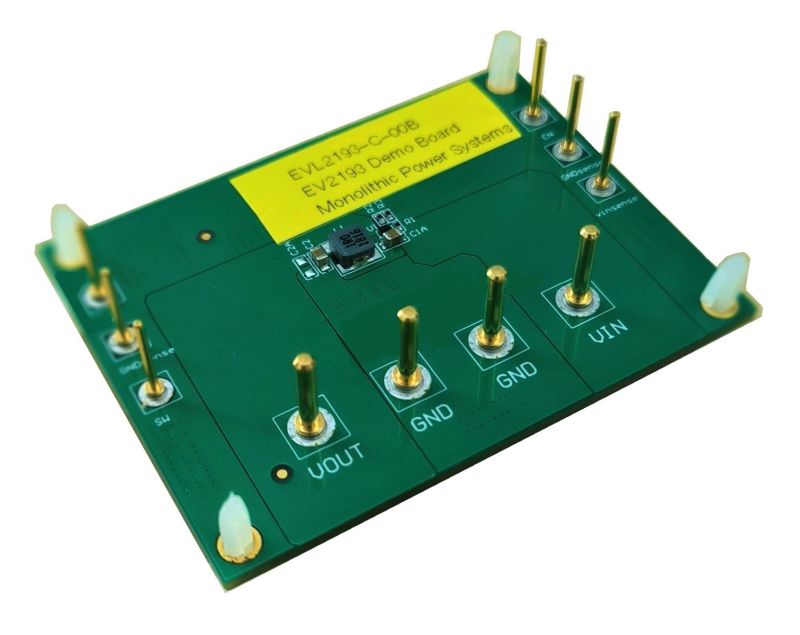

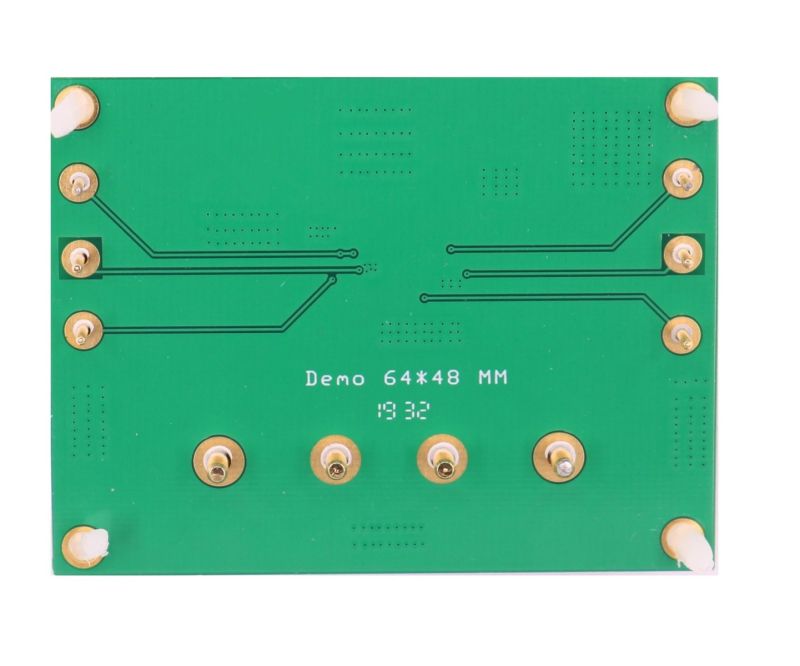

The EVL2193-C-00B evaluation board is designed to demonstrate the capabilities of the MP2193, a step-down, switch-mode converter with built-in, internal power MOSFETs.

The MP2193 is a monolithic, step-down switch-mode converter with built-in, internal power MOSFETs. The MP2193 can achieve up to 3A of continuous output current (I_OUT) across a 2.5V to 5.5V input voltage (V_IN) range, with excellent load and line regulation.

The output voltage (V_OUT) can be regulated to as low as 0.6V. Constant-on-time (COT) control provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.

It is recommended to read the datasheet for the MP2193 prior to making any changes to the EVL2193-C-00B.
