EVL1608L-LHT-00A

EVL1608L-LHT-00A

4.5V, 6A, Synchronous Step-Down Converter with FCCM Evaluation Board

MPL

MPL

Description

MPL

Optimized Performance with MPS Inductor

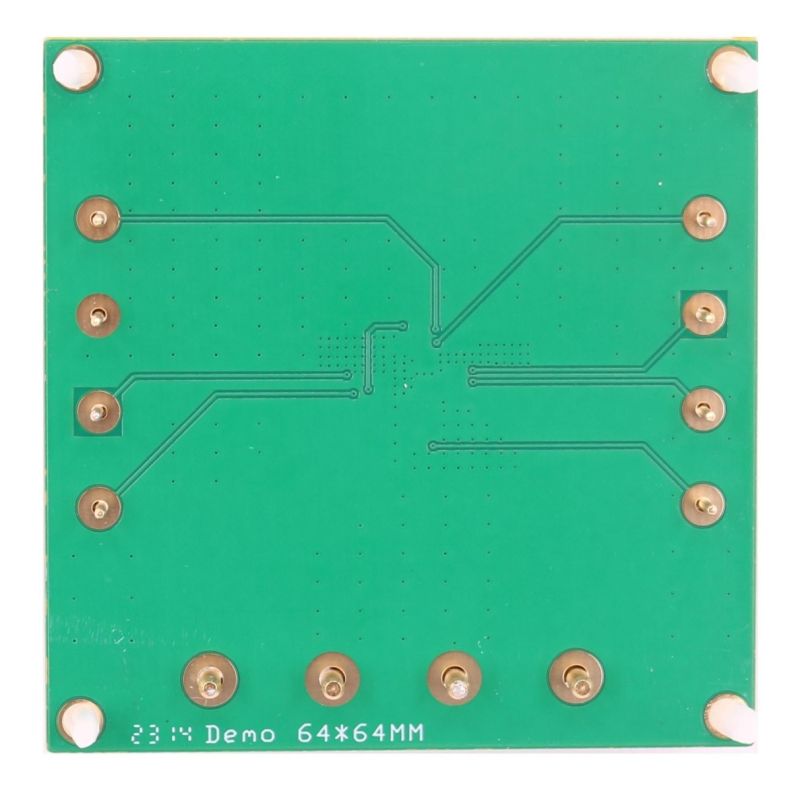

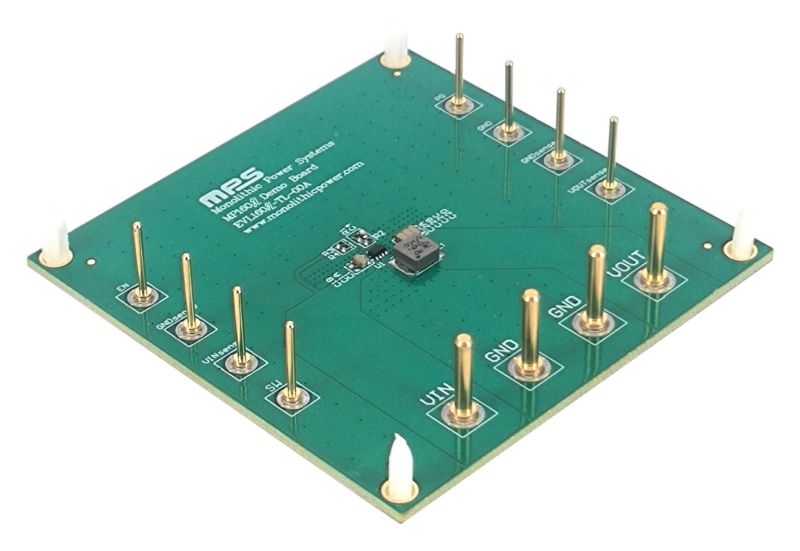

The EVL1608L-LHT-00A evaluation board is designed to demonstrate the capabilities of the MP1608L, a synchronous step-down converter.

The MP1608L can achieve up to 6A of continuous output current (I_OUT) from a 2.7V to 4.5V input voltage (V_IN) range. The output voltage (V_OUT) can be regulated to as low as 0.4V.

The MP1608L is available in an LGA-9 (1.5mmx2.5mm) package. It is recommended to read the MP1608L datasheet prior to making any changes to the EVL1608L-LHT-00A.

Product Evaluated

5.5V, 6A, Synchronous Step-Down Converter with FCCM in an LGA-9 Package

Features & Benefits

Wide 2.7V to 4.5V Operating Input Voltage (V_IN) Range
Up to 6A of Output Current (I_OUT)
18mΩ and 9mΩ Internal Power MOSFET Switches
Forced Continuous Conduction Mode (FCCM)
1.2MHz Switching Frequency (f_SW)
Output Discharge Function
Short-Circuit Protection (SCP) with Hiccup Mode
Power Good (PG) Indication
Available in an LGA-9 (1.5mmx2.5mm) Package
Optimized Performance with MPS Inductor MPL-AL4020 Series

Active Part Numbers:

EVL1608L-LHT-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Quantity
