EVKT-MP2787

EVKT-MP2787

MP2787 Evaluation Kit

Datasheet

Description

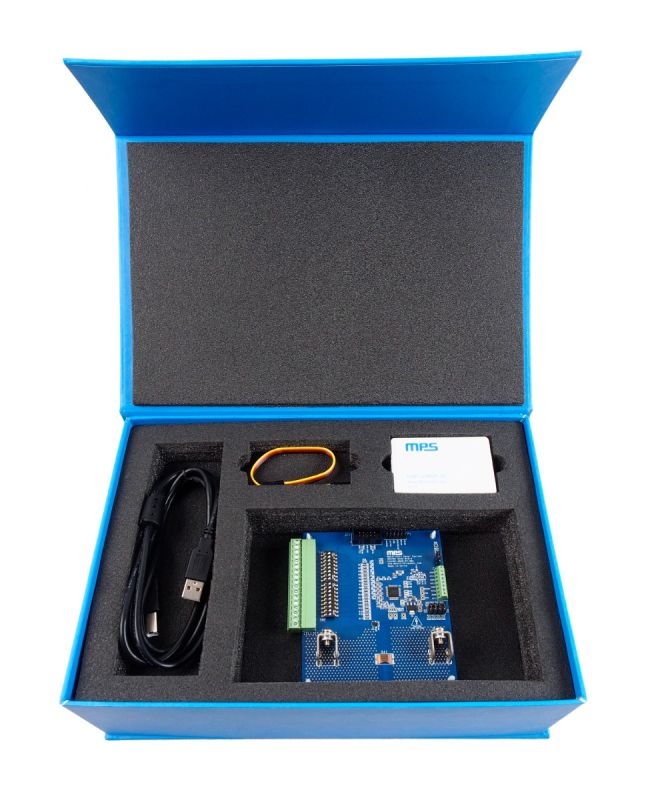

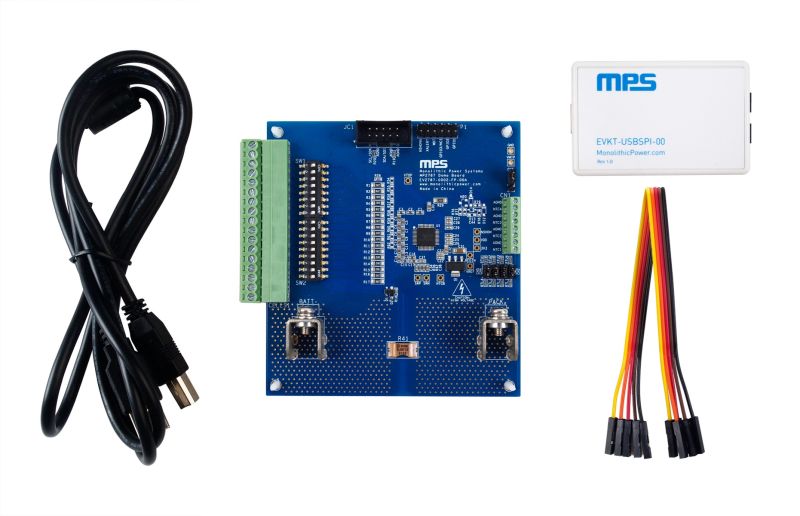

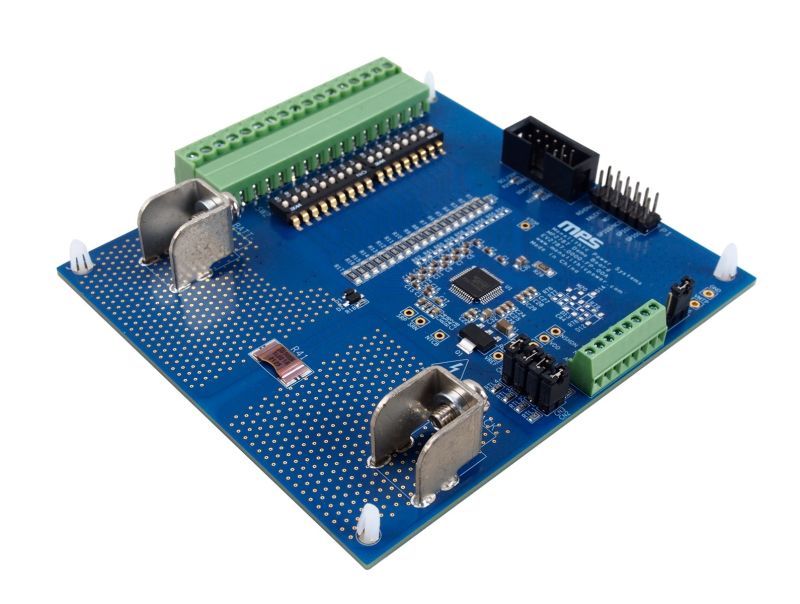

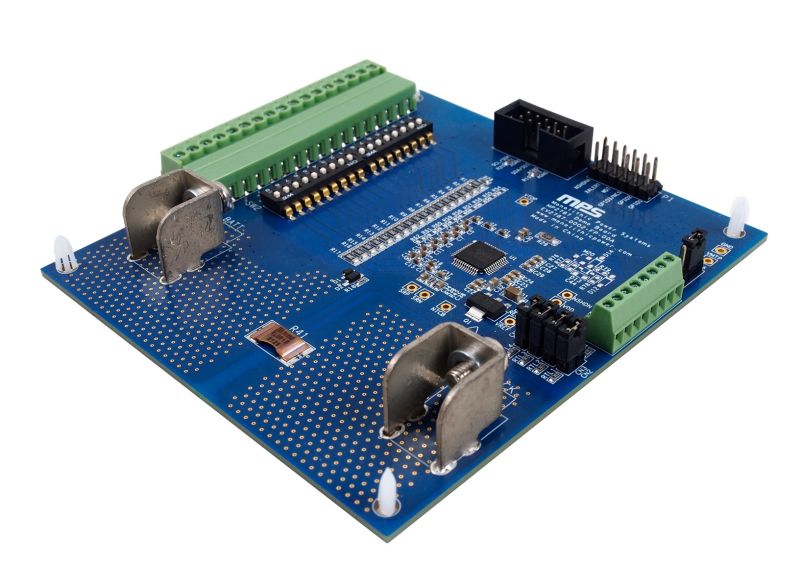

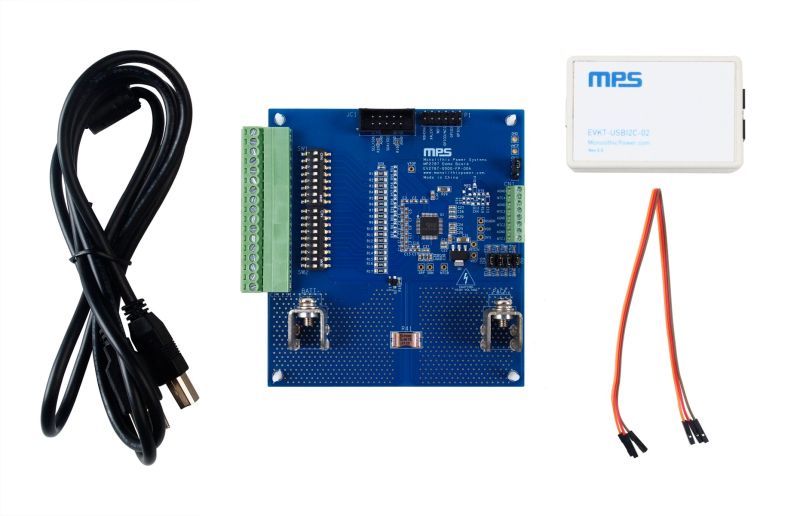

The EVKT-MP2787-0000 and EVKT-MP2787-0002 are evaluation kits for the MP2787. The EVKT-MP2787-0000 supports I²C communication, while the EVKT-MP2787-0002 supports serial peripheral interface (SPI) communication.

The board is designed to demonstrate the capabilities of the MP2787, which is used as a robust battery management device. The MP2787 provides a complete analog front-end (AFE) monitoring solution that is designed for 7-cell to 16-cell series battery systems.

Product Evaluated

Features & Benefits

Supports 7-Cell to 16-Cell Series Battery Packs
I²C or SPI Interface with 8-Bit Cyclic Redundancy Check (CRC)
Analog Front-End (AFE) Monitor:
- Strictly Synchronized Current and Voltage Measurement for Impedance Sensing
- 15-Bit Analog-to-Digital Converter (ADC) with <5mV Total Cell Measurement Error
- 16-Bit ADC with <±0.5% Pack Current and Coulomb Counting Measure Error via SRP and SRN
Hardware Configurable Alarms:
- Charge and Discharge Over-Current (OC)
- Cell Under-Voltage (UV) and Over-Voltage (OV)
- Pack UV and OV
- Cell Low-Temperature and High-Temperature Interrupt
- Die High-Temperature Interrupt
Internal Passive Cell Balancing Up to 58mA per Cell:
- Can Drive External Balancing Transistors for Higher Current
- Automatic or Manual Control
Additional Features:
- Integrated 3.3V and 5V Low-Dropout (LDO) Regulators
- Reduced Current Standby Mode
- High-Voltage (HV) and Low-Voltage (LV) GPIOs
- Dedicated Thermistor Inputs
- Open-Wire Detection
- Persistent Dead Battery Flag
- Lockable Multiple-Time Programmable (MTP) Memory
Random Cell Connection Tolerant
Available in a TQFP-48 (7mmx7mm) Package

Active Part Numbers:

EVKT-MP2787-0000 EVKT-MP2787-0002

Design Resources

Buy direct from MPS

Standard Pricing

Quantity Price
1

$190.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Default Options

Quantity

100 Max per Company.
Limited Inventory to support product development.
