EVHR1211-Y-00B

EVHR1211-Y-00B

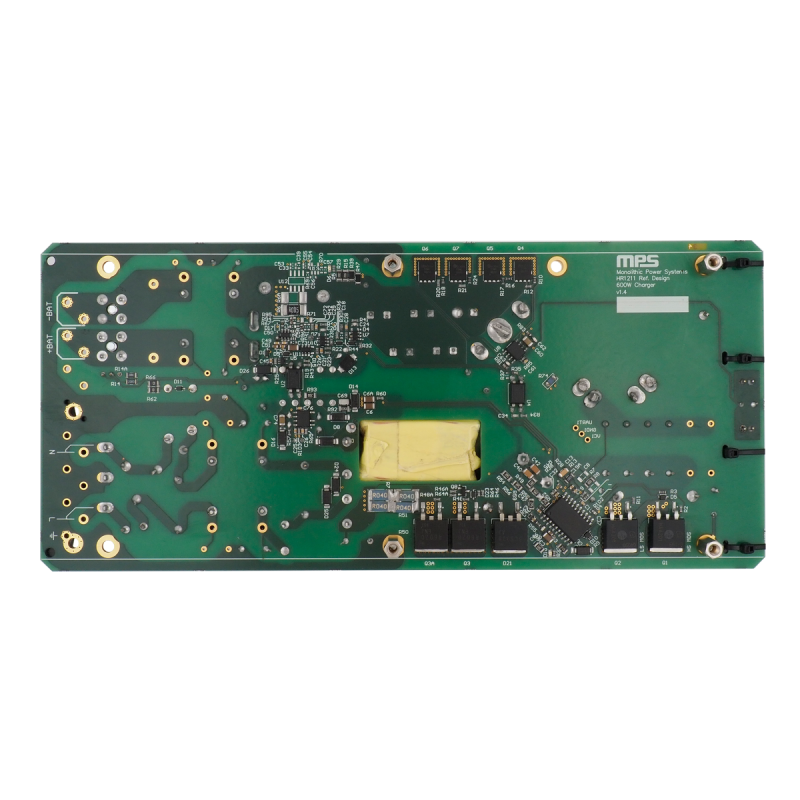

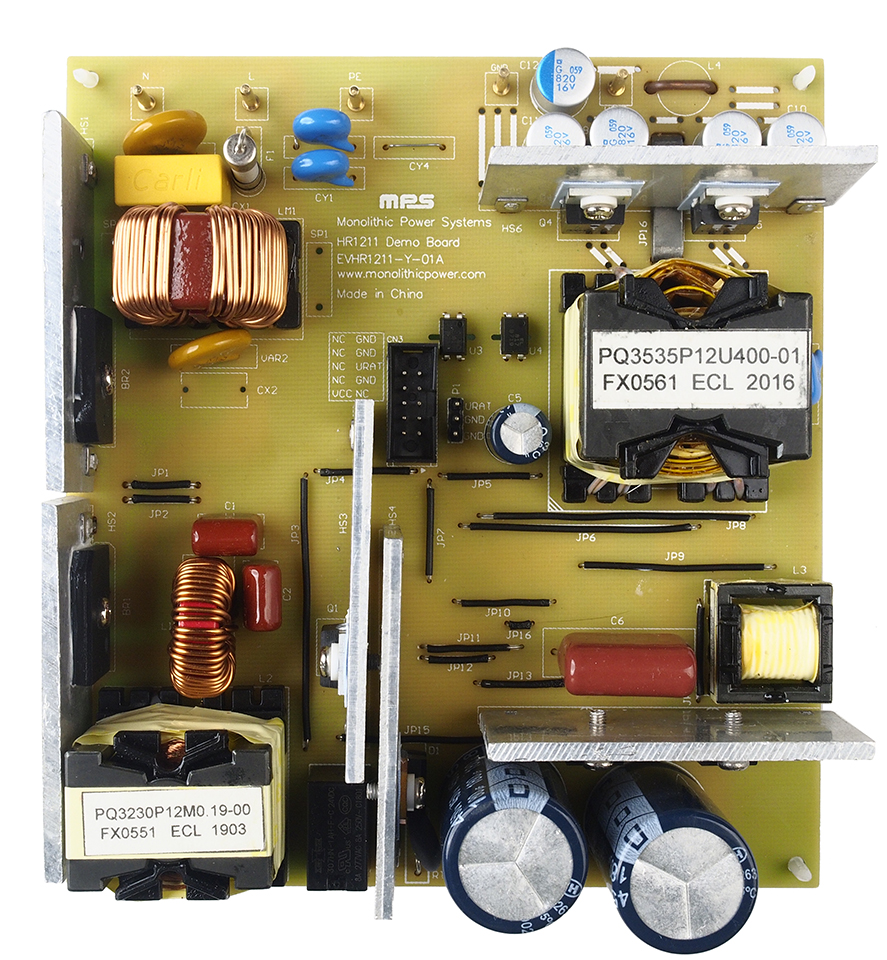

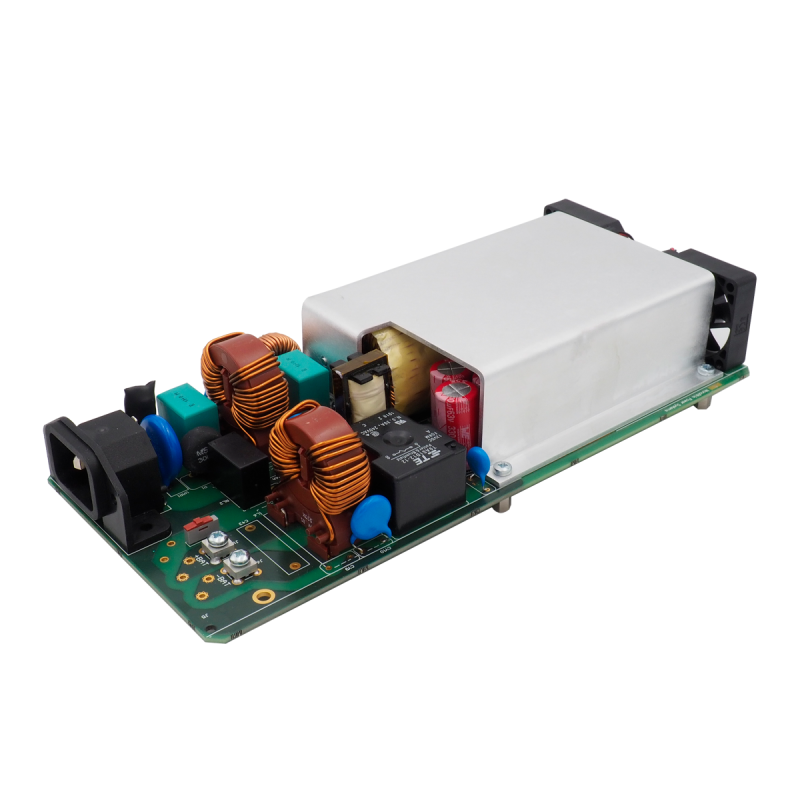

600W, Offline Battery Charger PFC + LLC with the HR1211 Evaluation Board

Datasheet

Description

The EVHR1211-Y-00B is an evaluation board designed for lithium-ion batteries, which are typically used in e-mobility applications and uninterruptible power supply (UPS) applications. This device can also be used as a general power supply unit.

If there is not a battery present, then the EVHR1211-Y-00B regulates the output voltage (V_OUT) to 58.8V. This solution is based on the HR1211, a PFC + LLC combination controller from a single integrated circuit.

Product Evaluated

HR1211GM

Multi-Mode PFC and Current Mode LLC Controller With Programmable Audible Noise Reduction Control

Features & Benefits

Wide 85V to 265V Operating Input Voltage (V_AC) Range
14-Cell Battery Configuration (3.6V)
High Efficiency Up to 90%
Meets EuP Lot 6 and COC Version 5 Tier 2 Specifications
Meets Class A IEC61000-3-2 Standards
Meets EN55032 Class B Standards
High Power Factor (PF)
Overload Protection (OLP) with Auto-Restart Mode
Short-Circuit Protection (SCP) with Auto-Restart Mode
Over-Voltage Protection (OVP)
Anti-Capacitive Mode Protection (CMP)
Form Factor: 190mmx100mmx50mm (3U Rack STD)

Active Part Numbers:

EVHR1211-Y-00B

Design Resources

Buy direct from MPS

Standard Pricing

Quantity Price
1

$600.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
