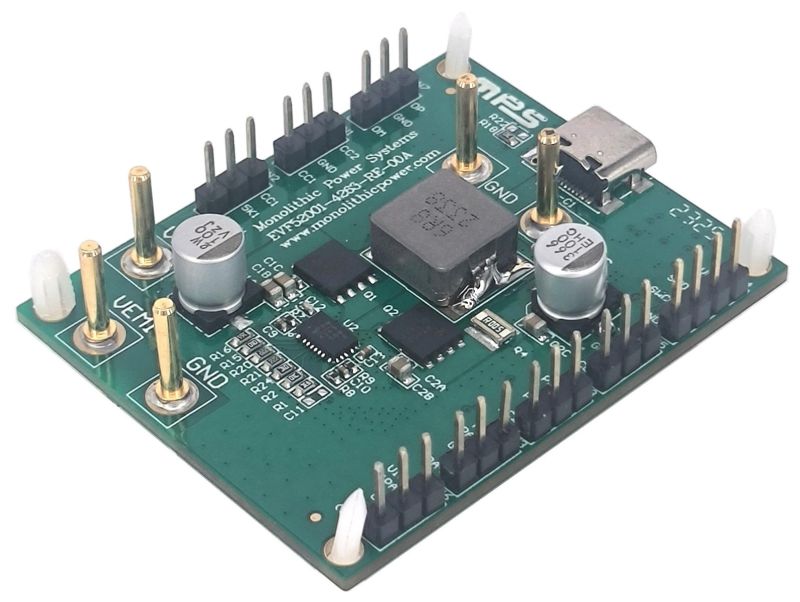

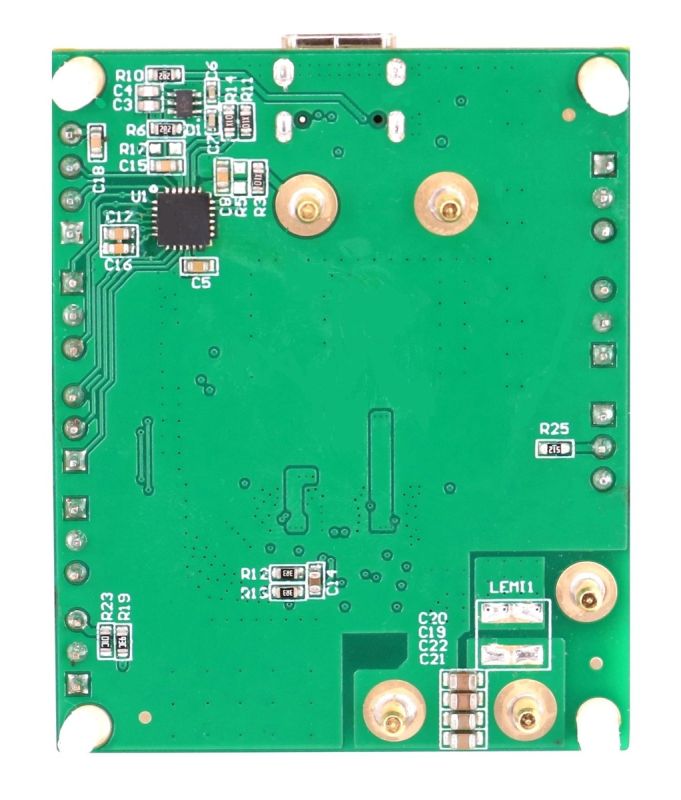

The EVF52001-4263-RE-00A is designed for 100W USB power delivery (PD) applications. It is designed to demonstrate the capabilities of MPS’s automotive USB Type-C PD solution using the MPF52001-AEC2 and MPQ4263-AEC1.
The MPF52001-AEC2 is a highly integrated USB PD controller for sourcing ports. It integrates a 32-bit ARM Cortex-M0 microcontroller (MCU), up to 36MHz operating frequency, USB Type-C port controller, and legacy charging protocol management. A firmware update feature is supported via the configuration channel (CC) lines.
The MPQ4263-AEC1 is a buck-boost converter with two low-side MOSFETs (LS-FETs). The device can deliver up to 100W of peak output power (POUT) at a certain input supply range with excellent efficiency.
It is recommended to read the datasheets for the MPF52001-AEC2 and MPQ4263-AEC1 prior to making any changes to the EVF52001-4263-RE-00A.
