EVCS1806-S-X-Y-00A

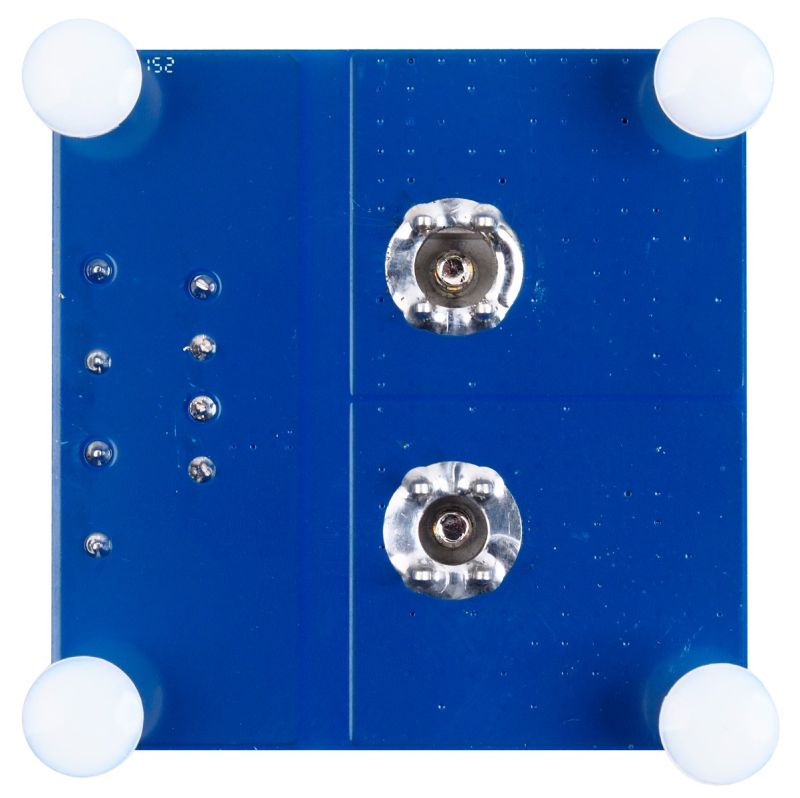

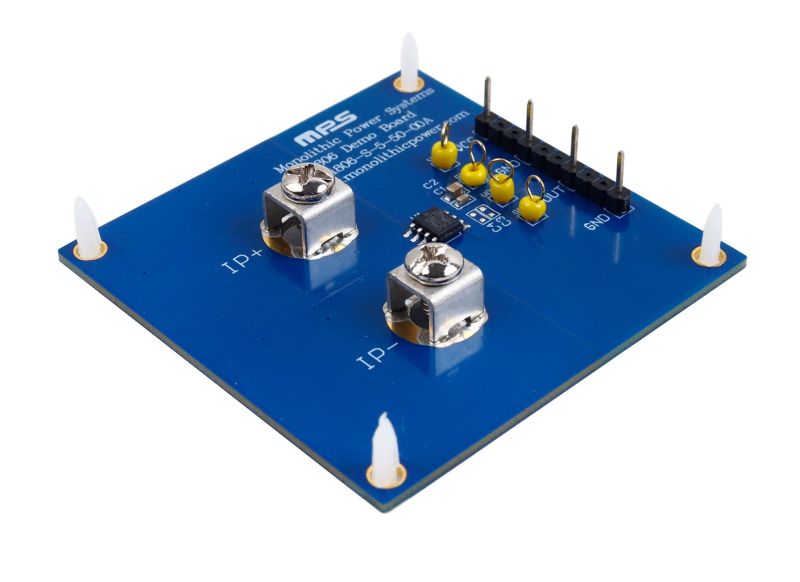

The EVCS1806-S-X-Y-00A is an evaluation board designed to demonstrate the capabilities of the MCS1806GS-X-Y series, which are high-accuracy, linear Hall-effect current sensors for AC or DC current sensing. The Hall array is differential, which cancels out stray magnetic field. The MCS1806GS-X-Y series provides two power supply options (3.3V or 5V) and six full current ranges of 5A to 50A to optimize accuracy in different applications.

The output voltage (V_OUT) is proportional to the applied current flowing through the primary conductor. The galvanic isolation between the primary conductive path pins and the sensor leads allows the MCS1806GS-X-Y to replace optoisolators or other expensive isolation devices.
