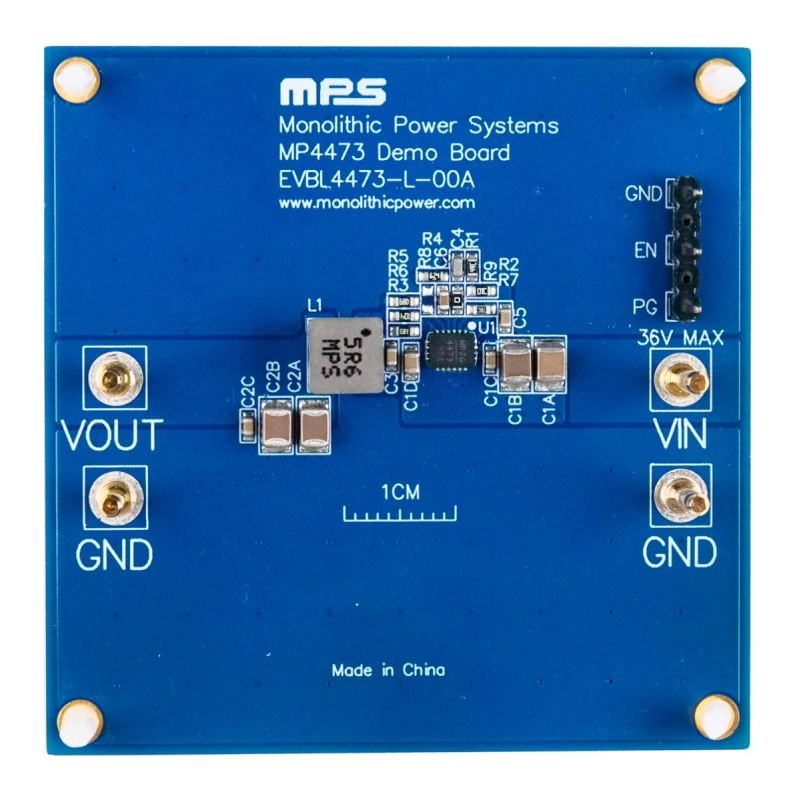

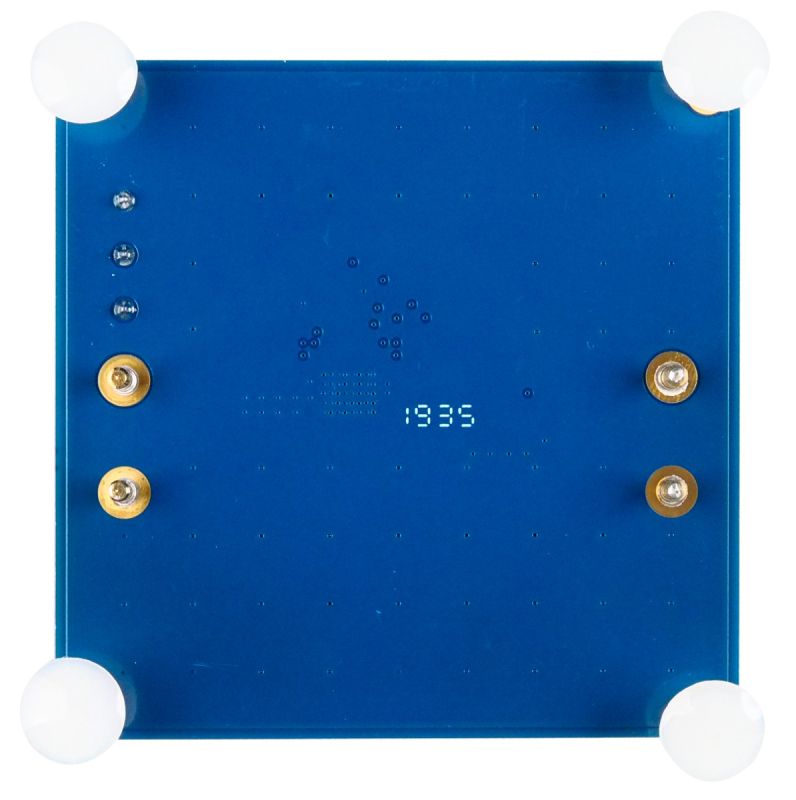

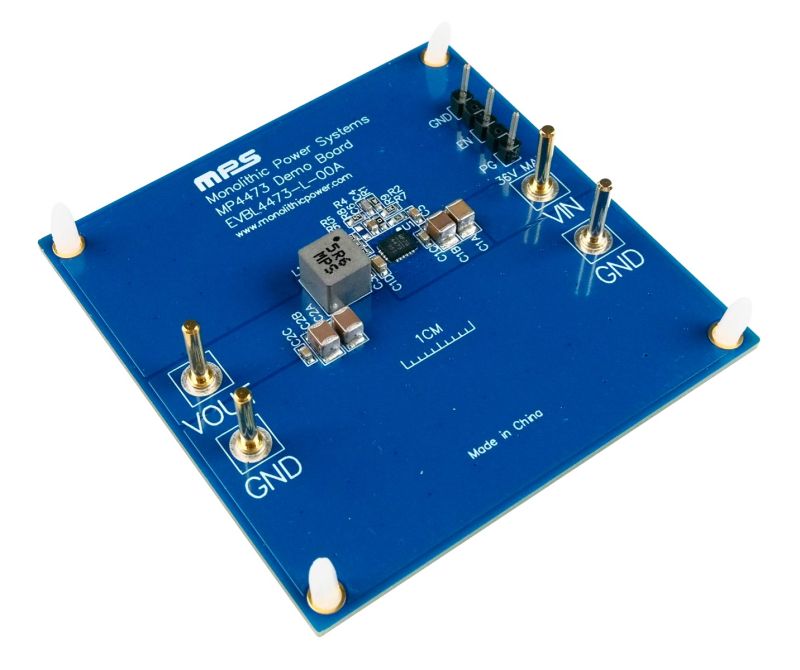

The EVBL4473-L-00A is an evaluation board for the MP4473 and MPQ4473. The evaluation board features an integrated MPS power inductor.
The MP4473 and MPQ4473 are high-efficiency step-down regulators with integrated power MOSFETs. They offer a very compact solution to achieve 3.5A of continuous output current (IOUT) across a wide input voltage (VIN) range, with excellent load and line regulation. They also provide fast transient response and excellent stability across a wide input supply and load range.
The EVBL4473-L-00A is a fully assembled and tested evaluation board. It generates a 3.3V output voltage (VOUT) at load currents up to 3.5A from a 4.5V to 36V VIN range. The switching frequency (fSW) is set to 500kHz.
