EVBL2166-D-00A

EVBL2166-D-00A

6V, Dual 2A/2A or 3A/1A, Low I_Q, Synchronous Buck with PG and SS Evaluation Board

MPL

Datasheet

Description

MPL

Optimized Performance with MPS Inductor

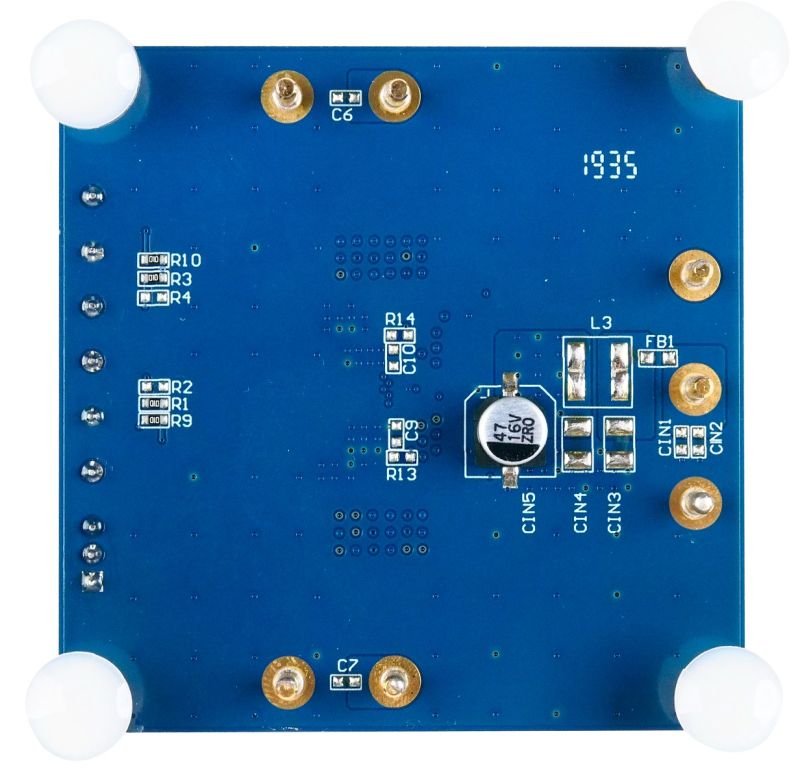

The EVBL2166-D-00A is an evaluation board designed to demonstrate the capabilities of the MP2166 and MPQ2166,and is optimized for MPS's MPL-AY4020 series of power inductors. The MP2166 and MPQ2166 are dual PWM step-down regulators with internal compensation. The devices operate from a 2.7V to 6V input voltage (V_IN) range, and can generate an output voltage (V_OUT) as low as 0.6V. The MP2166 and MPQ2166 can be configured for a 2A/2A or 3A/1A output current (I_OUT), and their low 60μA quiescent current (I_Q) makes them ideal for portable equipment that runs on a single-cell lithium-ion battery.

The devices integrate dual, 55mΩ high-side MOSFETs (HS-FETs) and 20mΩ synchronous rectifiers (SRs) for high efficiency without an external Schottky diode. The MP2166 and MPQ2166 have peak current mode control as well as internal compensation, and are capable of low-dropout configurations. Both channels can operate at 100% duty cycle.

Full protection features include cycle-by-cycle current limiting and thermal shutdown. The MP2166 and MPQ2166 are available in QFN-18 (2mmx3mm) or QFN-18 (2.5mmx3.5mm) packages.

Product Evaluated

MP2166

6V, Dual 2A/2A or 3A/1A, Low Quiescent Current, Synchronous Buck with PG and SS

MPQ2166GD-Z

Industrial Grade, 6V, Dual 2A/2A or 3A/1A, Low Quiescent Current, Synchronous Buck with PG and SS

Features & Benefits

2.7V to 6V Operating Input Voltage (V_IN) Range
2A/2A or 3A/1A Continuous Output Current (I_OUT)
55mΩ/20mΩ R_DS(ON)
Configurable Frequency Up to 3MHz
External Sync Clock Up to 3MHz
180° Phase-Shift Operation
PG Indication
External SS and Track
Adjustable Advanced Asynchronous Moulation (AAM) Mode or Forced Continuous Conduction Mode (FCCM)
Output Voltage (V_OUT) Adjustable from 0.6V to V_IN
100% Duty Cycle Operation
Cycle-by-Cycle Over-Current Protection (OCP)
Short-Circuit Protection (SCP) with Hiccup Mode and Valley Current Detection
Thermal Shutdown
Fully Assembled and Tested
Available in QFN-18 (2mmx3mm) and QFN-18 (2.5mmx3.5mm) Packages
Optimized Performance with MPS Inductor MPL-AY4020 Series
