EV9473-L-00A
High-Efficiency, Fast-Transient, 3.5A, 36V, Step-Down Converter Evaluation Board
Learn about our Evaluation Kit
Product Description
The EV9473-L-00A is an evaluation board for the MP9473, a high-efficiency, step-down regulator with integrated power MOSFETs.
The MP9473 offers a very compact solution to achieve a 3.5A continuous output current over a wide input supply range with excellent load and line regulation. It also provides fast transient response and good stability fora wide input supply and load range.

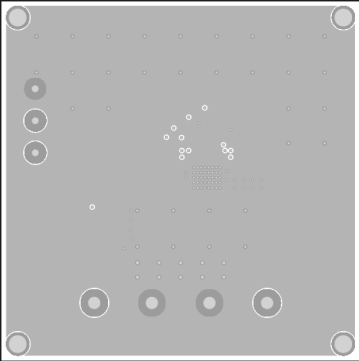

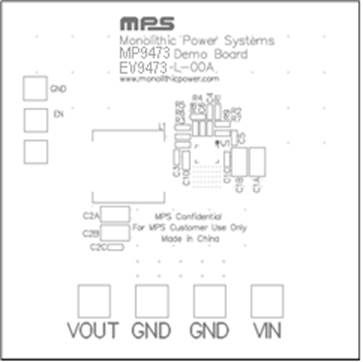

The EV9473-L-00A is a fully assembled and tested evaluation board. It generates a 3.3V output voltage at load currents up to 3.5A from a 7V to 36V input range. The switching frequency is set at 500kHz.
Product Features
- Wide 4.5V to 36V Operating Input Range
- Guaranteed 3.5A, Continuous Output Current
- Internal 65mΩ High-Side, 30mΩ Low-Side Power MOSFETs
- Proprietary Switching Loss Reduction Technology
- 1.5% Reference Voltage
- Programmable Soft-Start Time
- Low-Dropout Mode
- SCP, OCP, UVP, and Thermal Shutdown
Parametrics
High-Efficiency, Fast-Transient, 3.5A, 36V Synchronous, Step-Down Converter
The MP9473 is a fully integrated, high-frequency, synchronous, rectified, step-down, switch-mode converter. It offers a compact solution to achieve a 3.5A, continuous-output current over a wide input-supply range with excellent load and line regulation. It provides fast, transient response and good stability for wide input-supply and load range. The MP9473 operates at high efficiency over a wide-output-current load range.
MP9473 has full protection features including, short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown (TSD).
The MP9473 requires minimal, readily available, standard, external components, and is available in a compact 3mmx4mm, 20-pin, QFN package.
