EV8795H-LE-00A

EV8795H-LE-00A

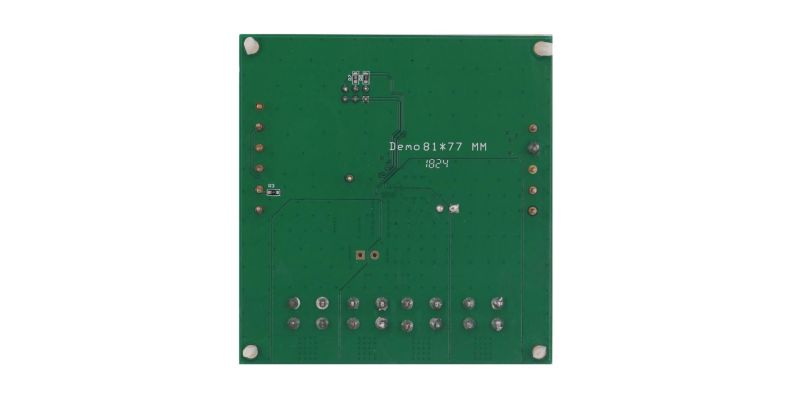

High-Efficiency, 16V, 20A, Synchronous Step-Down Converter Evaluation Board

Datasheet

Description

The EV8795H-LE-00A is an evaluation board designed to demonstrate the capabilities of the MP8795H, a monolithic, high-efficiency, synchronous step-down converter. The MP8795H can deliver up to 20A of continuous load current across a wide operating input voltage (V_IN) range. High efficiency is achieved across the wide output current (I_OUT) range.

The MP8795H adopts internally compensated constant-on-time (COT) control to provide fast transient response and ease loop stabilization. The EV8795H-LE-00A can be turned on or off via a remote on/off enable (EN) input that is referenced to ground. This input is compatible with commonly used logic devices.

The MP8795H is available in a QFN-21 (3mmx4mm) package.

Product Evaluated

Features & Benefits

Wide Input Voltage (V_IN) Range from 2.7V:
- 2.7V to 16V with External 3.3V V_CC Bias
- 4V to 16V with Internal V_CC Bias or External 3.3V V_CC Bias
Differential Output Voltage (V_OUT) Remote Sense
Configurable, Accurate Current Limit Level
20A Output Current (I_OUT)
Low R_DS(ON) Integrated Power MOSFETs
Adaptive Constant-On-Time (COT) Control for Ultra-Fast Transient Response
Stable with Zero-ESR Output Capacitors
Forced Continuous Conduction Mode (FCCM)
Excellent Load Regulation
V_OUT Tracking
V_OUT Discharge
PGOOD Active Clamped to Low Level during Power Failure
Configurable Soft-Start Time (t_SS) from 1ms
Pre-Biased Start-Up
600kHz, 800kHz, or 1000kHz Selectable Switching Frequency (f_SW)
Non-Latch Over-Current Protection (OCP), Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), Under-Voltage Lockout (UVLO) Protection, and Thermal Shutdown
Output Adjustable from 0.6V to 0.9 x V_IN, Up to 5.5V Maximum
Available in a QFN-21 (3mmx4mm) Package

Active Part Numbers:

EV8795H-LE-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
