16V, 15A, High-Efficiency, Synchronous Step-Down Converter Evaluation Board

Datasheet

Description

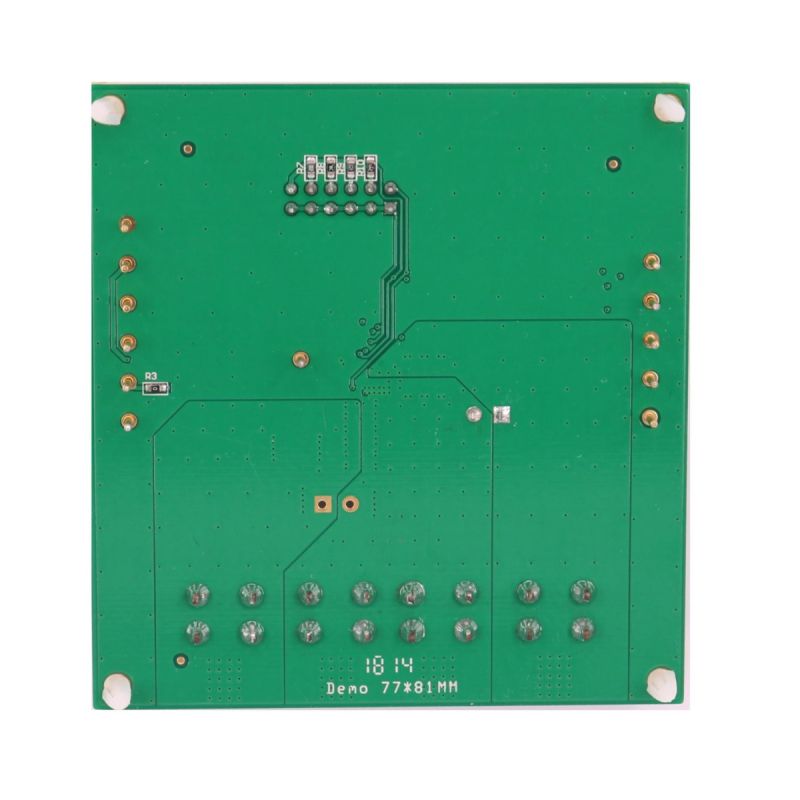

The EV8795-LE-00A is an evaluation board designed to demonstrate the capabilities of the MP8795, a high-efficiency, monolithic, synchronous step-down converter. The MP8795 can deliver up to 15A of continuous output current (I_OUT) across a wide input voltage (V_IN) range, and is highly efficient across a wide I_OUT range (up to 15A).

Internally compensated constant-on-time (COT) control provides fast transient response and eases loop stabilization. The remote enable (EN) input referenced to ground turns the part on and off. This input is compatible with most popular logic devices.

The MP8795 is available in a QFN-21 (3mmx4mm) package.

Product Evaluated

Features & Benefits

Wide Input Voltage (V_IN) Range:
- 2.7V to 16V V_IN Range with External 3.3V V_CC Bias
- 4V to 16V V_IN Range with Internal V_CC Bias or External 3.3V V_CC Bias
Up to 15A Continuous Output Current (I_OUT)
Differential Output Voltage (V_OUT) Remote Sense
Configurable Accurate Current Limit
Low On Resistance (R_DS(ON)), Integrated Power MOSFETs
Proprietary Switching Loss Reduction
Adaptive Constant-On-Time (COT) Control for Fast Transient Response
Stable with Zero-ESR Output Capacitors
Reference Voltage (V_REF):
- 0.5% V_REF from 0°C to 70°C Junction Temperature (T_J)
- 1% V_REF from -40°C to +125°C T_J
Selectable Pulse-Skip Mode (PSM) and Forced Continuous Conduction Mode (FCCM)
Selectable 600kHz, 800kHz, and 1000kHz Switching Frequency (f_SW)
Up to 5.5V Adjustable Output from 0.6V to 90% x V_IN
Excellent Load Regulation
V_OUT Tracking and Discharge
Power Good (PG) Clamps Active Low during Power Failure
Configurable Soft-Start Time (t_SS) from 1ms
Pre-Biased Start-Up
Non-Latch Over-Current Protection (OCP), Under-Voltage Protection (UVP), and Under-Voltage Lockout (UVLO)
Latch-Off Over-Voltage Protection (OVP)
Thermal Shutdown
Available in a QFN-21 (3mmx4mm) Package

Active Part Numbers:

EV8795-LE-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
