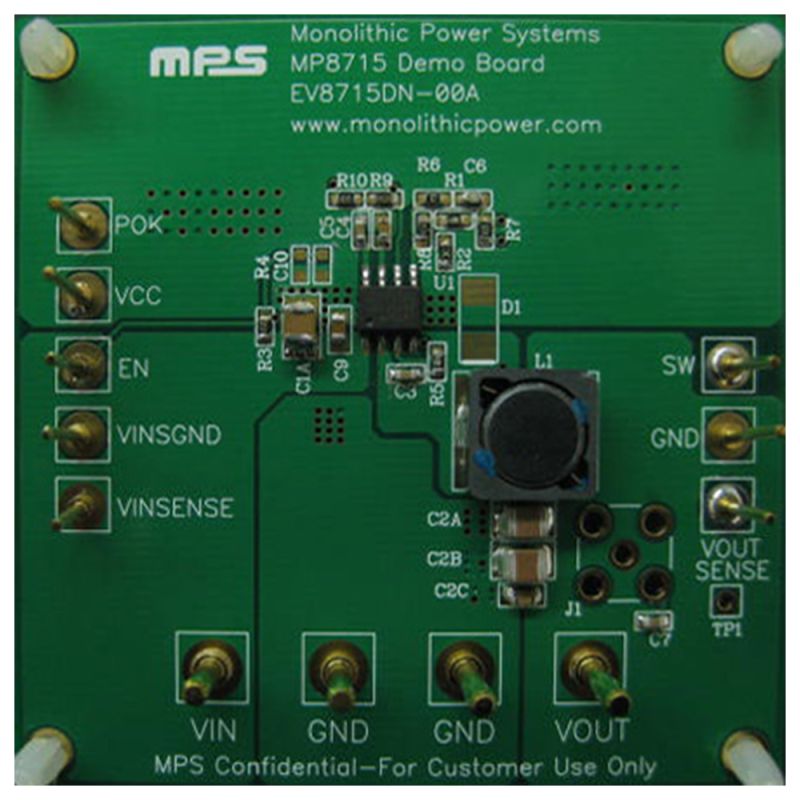

100% Duty Cycle Synchronous 4A, 21V, 500kHz Step-Down Converter EV Board

Datasheet

Description

The MP8715 is a 500kHz fixed-frequency PWM synchronous step-down regulator. The MP8715 operates from a 4.5V to 21V input and generates an output voltage from 0.8V to VIN with 100% duty cycle operation.

The MP8715 integrates a 120mΩ high-side switch and a 50mΩ synchronous rectifier for high efficiency without an external Schottky diode. It offers a very compact solution to achieve 4A continuous output current over a wide input supply range with excellent load and line regulation.

External soft start and power good indication allow the part to meet flexible design requirements. The MP8715 is available in a space saving 8-pin SOIC package with an exposed pad.

Product Evaluated

Features & Benefits

4A Output Current
Wide 4.5V to 21V Input Operation Range
100% Duty Cycle Support
120mΩ/50mΩ Internal Power MOSFET
All Ceramic Capacitor Design
Up to 95% Efficiency
500kHz Fixed Switching Frequency
Adjustable Output from 0.8V to Vin
External Soft-Start
Frequency Synchronization Input
Power Good Indicator
Internal Compensation
Over-Current Hiccup and Thermal Protection
Available in an 8-pin SOIC Package with an Exposed Pad
