EV86884-QKT+2932(2 Phase)-00A

EV86884-QKT+2932(2 Phase)-00A

2 Phase Step Down Converter EV Board

Datasheet

Description

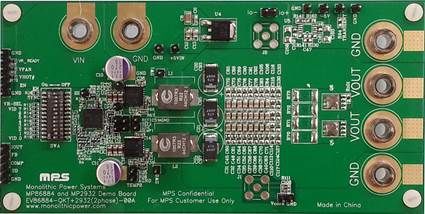

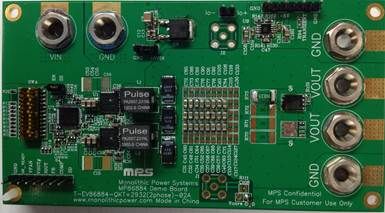

The EV2932+86884 is a two phase evaluation board for MP2932, a 6-phase, synchronous buck switching regulator controller for regulating microprocessor core voltage.

This EVB utilizes the Intelli-Phase MP86884 to work with the controller MP2932, providing the 60A continuous output current over a wide input supply voltage rage of 7V to 14V.

Accurate current balance can be realized in MP2932 to provide current balance for each channel. Output current is sensed to realize the voltage droop function for the loadline requirement of microprocessor.

8 bit ID input with selectable VR11 code and extended VR10 code of MP2932 can set output voltage dynamically.

Product Evaluated

6-Phase PWM Controller with 8-Bit DAC Code for VR10 and VR11

Features & Benefits

7V to 14V operating input range
2-phase Operation
Channel-Current Balancing
60A Output Current
Voltage Droop vs Load Current
Adjustable Switching Frequency
Dual Edge Modulation for Fast Transient
Over Current Protection
Thermal Monitoring
MP86884 Available in 6mm x 6mm TQFN Package
MP2932 Available in 6mm x 6mm QFN Package

Active Part Numbers:

EV86884-QKT-2932-2Phase-00A

Buy direct from MPS
