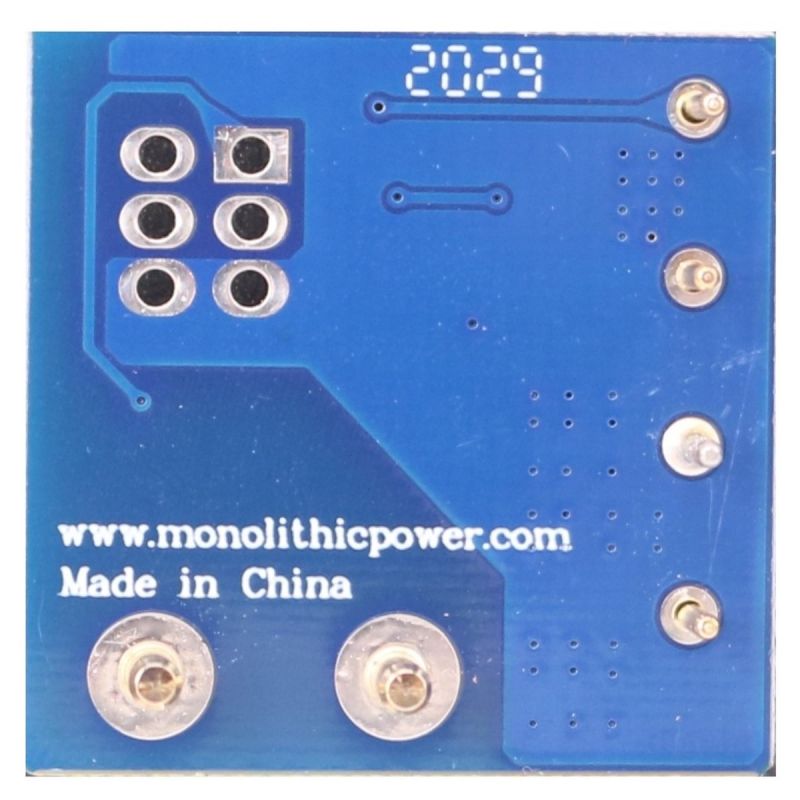

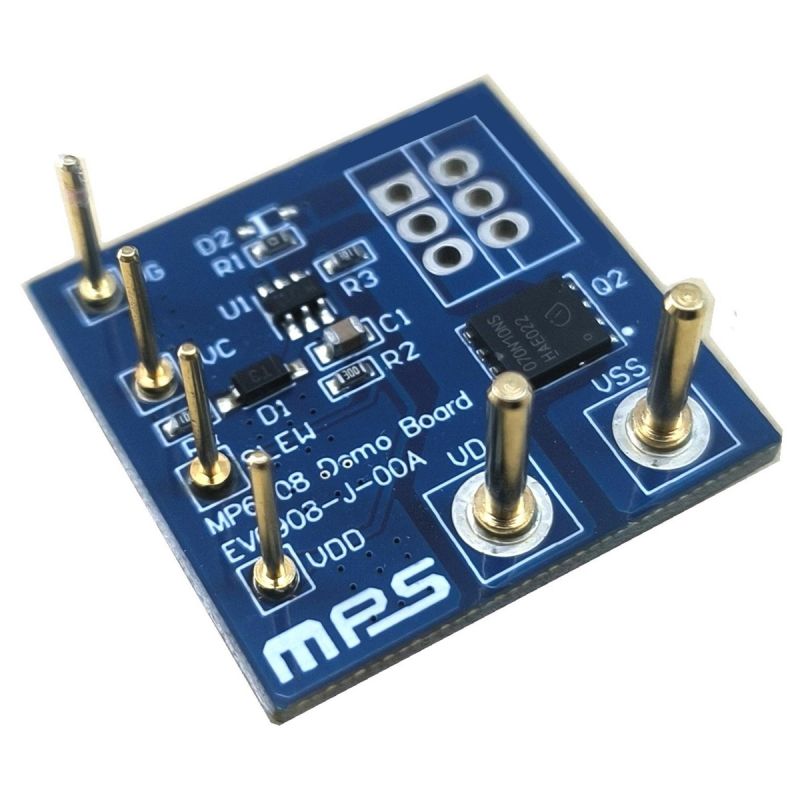

The EV6908-J-00A is an evaluation board designed to demonstrate the capabilities of the MP6908, a low-drop diode emulator IC. When combined with an external switch, the MP6908 replaces Schottky diodes in high-efficiency flyback converters. The MP6908 regulates the forward drop of an external synchronous rectifier (SR) MOSFET to about 40mV, which switches off once the voltage becomes negative.
The MP6908 can generate its own supply voltage for battery charging applications, with a low output voltage (VOUT) for high-side rectification applications. Configurable ringing detection circuitry prevents the MP6908 from false turn-on during discontinuous conduction mode (DCM) and quasi-resonant (QR) operation.
