14V, 5A, H-Bridge Motor Driver Evaluation Board

Datasheet

Description

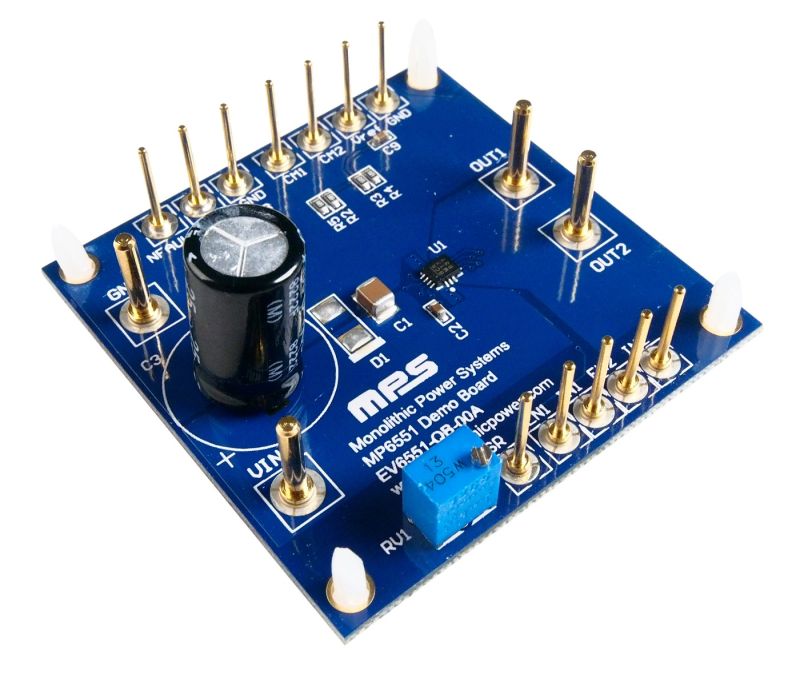

The EV6551-QB-00A is an evaluation board designed to demonstrate the capabilities of the MP6551, an H-bridge motor driver.

The MP6551 provides up to 5A of output current (I_OUT) across a wide 2.5V to 14V input voltage (V_IN) range. Its input control signals are applied via a connector on the evaluation board (EN1, EN2, IN1, and IN2).

Product Evaluated

Features & Benefits

Wide 2.5V to 14V Input Voltage (V_IN) Range
Up to 5A Output Current (I_OUT)
Integrated Bidirectional Current-Sense Amplifiers
Supports 100% Duty Cycle
Low-Power Sleep Mode
Over-Current Protection (OCP)
Over-Temperature Protection (OTP)
Fault Indication Output
