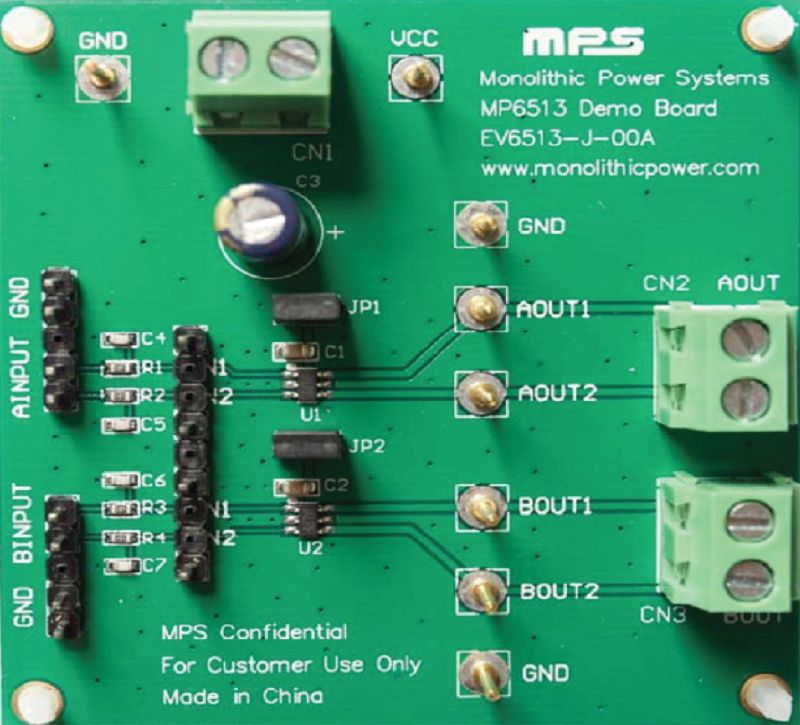

EV6513-J-00A

EV6513-J-00A

Full H-bridge Motor Driver Evaluation Board

Datasheet

Description

The EV6513-J-00A is an evaluation board for the MP6513GJ, Is a full-H-bridge motor driver used for driving reversible motors, which can drive one dc motor or one winding of a stepper motor or other loads.

It operates from a supply voltage range of 2.5V to 21V and can deliver motor current up to 0.8A.

The input control signals for the MP6513GJ are applied through the connector.

Product Evaluated

Features & Benefits

Wide 2.5V to 21V Input Voltage Range
0.8A continuous driver current
Full-H-bridge motor drive
OCP, OVP, and OTP

Active Part Numbers:

EV6513-J-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$50.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
