EV6001DN-00D

EV6001DN-00D

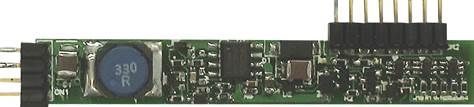

WLED Driver Evaluation Board

Datasheet

Description

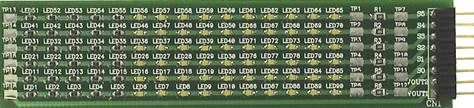

The EV6001DN-00D is an evaluation board for the WLED driver application. It can drive 6 20mA strings of WLEDs with up to 10 WLEDs per string. EV6001DN-00D has good current balance among 6 strings. It also has PWM dimming, EN function, and open circuit voltage protection.

This device is available in an 8-pin SOIC package with an exposed pad.

Product Evaluated

Features & Benefits

Integrated 150V Power Switch
Integrated 100V Startup Circuit
Cycle-by-Cycle Current Limiting
PWM Dimming
Open Circuit Protection
Backlight Current Balance

Active Part Numbers:

EV6001DN-00D

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
