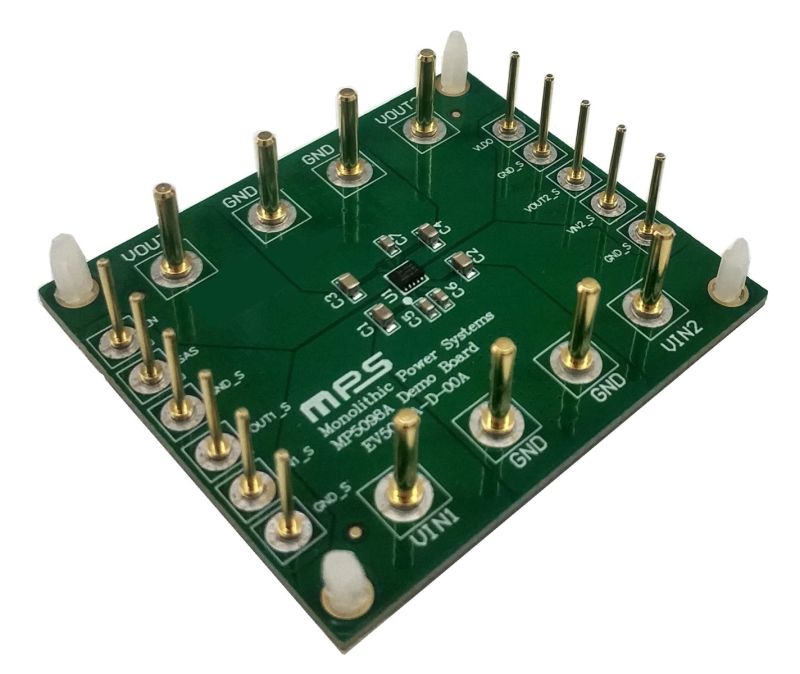

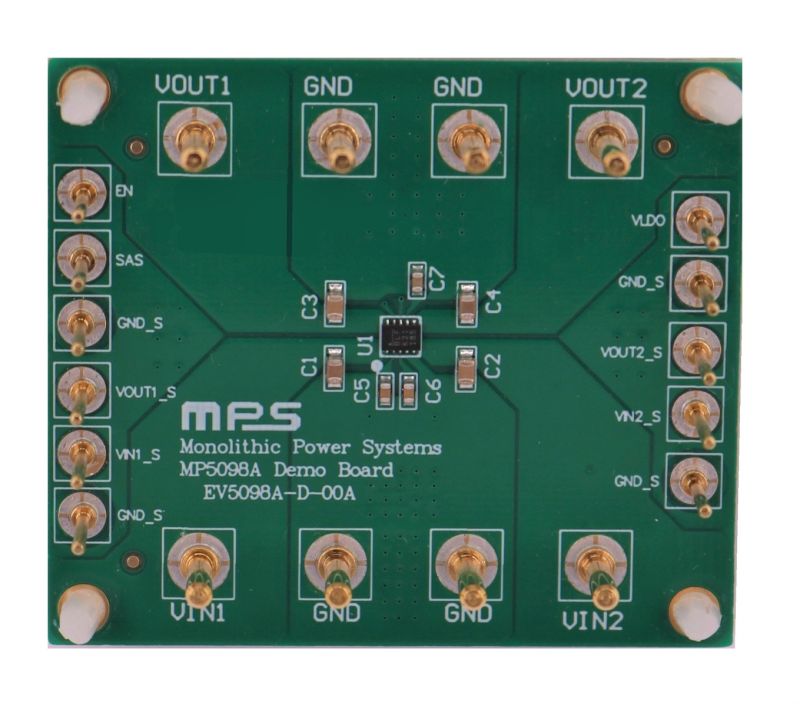

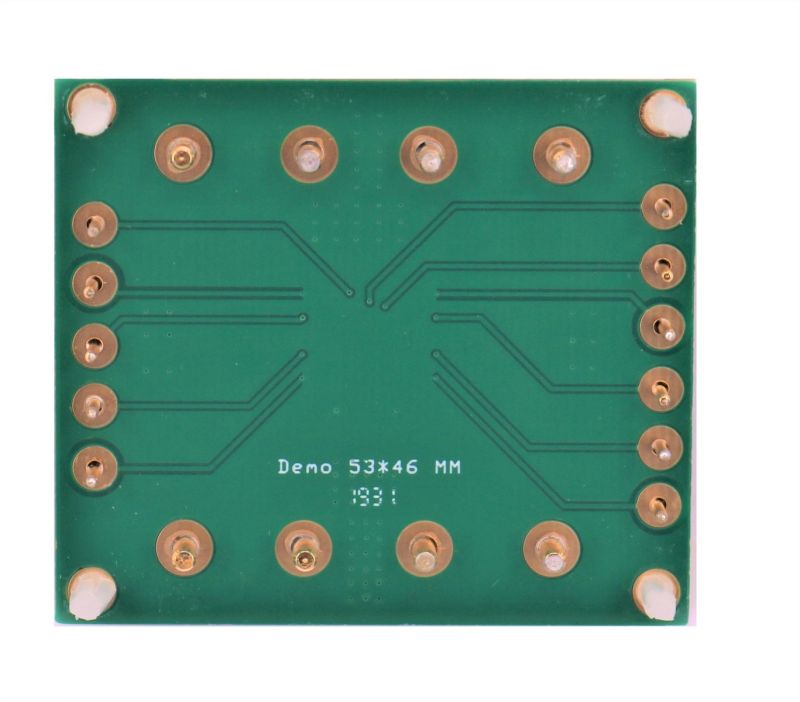

The EV5098A-D-00A is an evaluation board designed to demonstrate the capabilities of the MP5098A, a dual 5V/12V e-fuse that protects circuitry on the output from transients on the input. The MP5098A also offers protection from undesired shorts at the output and limits the input inrush current during system start-up.

The SAS and EN pins control the on/off logic of the dual e-fuse. The SS pin for each channel controls the device's start-up time. Reverse current blocking functionality is integrated for 5V devices.

The maximum load at the output is current-limited. The magnitude of the current limit is internally fixed and able to be trimmed. An internal, integrated low-dropout (LDO) regulator provides 5V/10mA load capability for system use.

The MP5098A requires a minimal number of external components, and is available in a space-saving TQFN-10 (2mmx3mm) package.
