EV4423-Q-00A

3A, 36V, Synchronous Step-Down Converter Evaluation Board

Datasheet

Shopping Cart

Order

Overview
Technical Forum
Quality
Order

EV Kits and EV Boards
EV4423-Q-00A

EV4423-Q-00A

3A, 36V, Synchronous Step-Down Converter Evaluation Board

Datasheet

Description

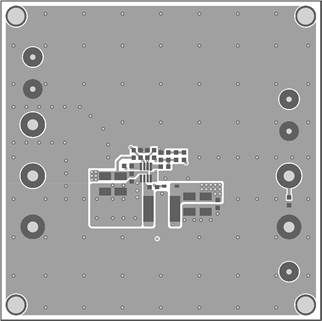

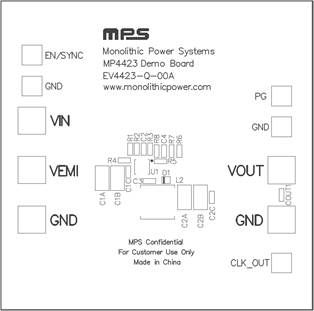

The EV4423-Q-00A is an evaluation board for the MP4423/MPQ4423, a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve 3A of continuous output current, with excellent load and line regulation over a wide input supply range. The MP4423/MPQ4423 has synchronous mode operation for higher efficiency over the output current load range.

Current mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection and thermal shutdown.

The EV4423-Q-00A uses a minimal number of readily available, standard external components, and is assembled and tested in a space-saving QFN-8 (3mmx3mm) package.

Product Evaluated

Industrial Grade, High Efficiency 3A, 36V max, Synchronous Step Down Converter with PG and Ext. Sync

High Efficiency 3A, 36V Max, Synchronous Step Down Converter with PG and Ext. Sync

Features & Benefits

Wide 4V to 30V Continuous Operating Input Range
36V Input Transient Tolerance for Automotive Load Dump
85mΩ/55mΩ Low R_DS(ON) Internal Power MOSFETs
High-Efficiency Synchronous Mode Operation
Default 410kHz Switching Frequency
Synchronizes to a 200kHz to 2.2MHz External Clock
High Duty Cycle for Automotive Cold Crank
Power-Save Mode
Internal Soft Start
Power Good
OCP Protection and Hiccup Mode
Thermal Shutdown
Output Adjustable from 0.8V
Available in a QFN-8 (3mmx3mm) Package
Fully Assembled and Tested

Active Part Numbers:

EV4423-Q-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$50.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
