EV4050A-J-00A

Active

Universal Input, 40V/115mA Off-line Non-isolated LED Driver Evaluation Board for TSOT23-5 package type.

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Learn about our Evaluation Kit

Talk to an Engineer or get a Quote

Datasheet (EN)

Product Description

The MP4050A is a constant current LED driver with an integrated 500V MOSFET. It is designed specifically for energy efficient and low-cost LED bulb replacement applications.

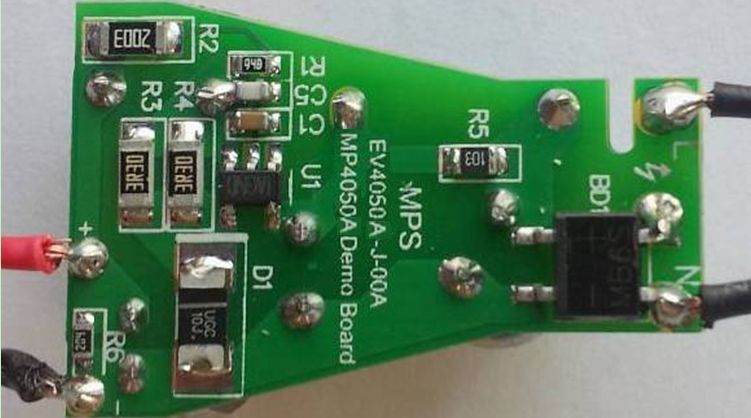

The EV4050A-J-00A Evaluation Board is designed to demonstrate the capabilities of MP4050A as an off-line, non-isolated LED driver which can load 40V/115mA LEDs in universal input voltage (85VAC to 265VAC, 50Hz/60Hz).

The EV4050A-J-00A has an excellent efficiency and meets IEC61000-4-5 surge immunity and EN55015 conducted EMI requirements. It has various protections, like integrated thermal current foldback, VCC under-voltage lockout (UVLO), open LED protection (OLP), short-circuit protection (SCP), and over-temperature protection (OTP). All of there features make MP4050A an ideal solution for simple, off-line and non-isolated LED applications.

EV4050A-J-00A is the evaluation board for MP4050A TSOT23-5 package.

Product Features

Constant Current LED Driver
Integrated 500V/8Ω MOSFET
Low VCC Operating Current
Maximum Frequency Limit
Audible Noise Restrain
Internal High-Voltage Current Source
Internal 200ns Leading Edge Blanking
Integrated Thermal Current Foldback
Thermal Shutdown (Auto Restart with Hysteresis)
VCC Under Voltage Lockout with Hysteresis
Open LED Protection
Short Circuit Protection
Auto-Restart Function

Parametrics

Non-Isolated, High Brightness LED Driver with Enhanced Thermal Feature

The MP4050A is a constant current LED driver with an integrated 500V MOSFET. It is designed specifically for energy efficient and low-cost LED bulb replacement applications. The MP4050A is designed to drive high-brightness LEDs from a universal AC grid input or DC input. The accurate output LED current is achieved by an averaging internal current feedback loop. Constant LED current is delivered quietly by switching the internal MOSFET at a frequency regulated above 22kHz. The MP4050A can be powered directly by the high input voltage. An internal high-voltage current source regulates supply voltage without external circuitry. Full protections features include integrated thermal current foldback, VCC under-voltage lockout (UVLO), open LED protection (OLP), short-circuit protection (SCP), and over-temperature protection (OTP). These features make the MP4050A an ideal solution for simple, off-line, and non-isolated LED applications.
