EV3398E-F-00A

New

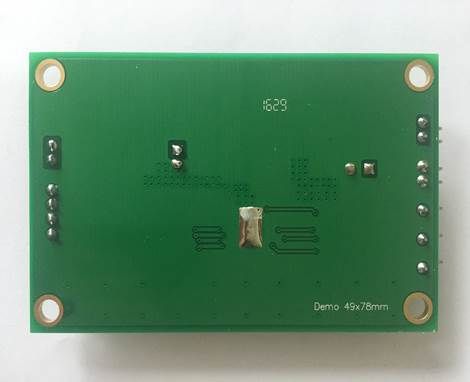

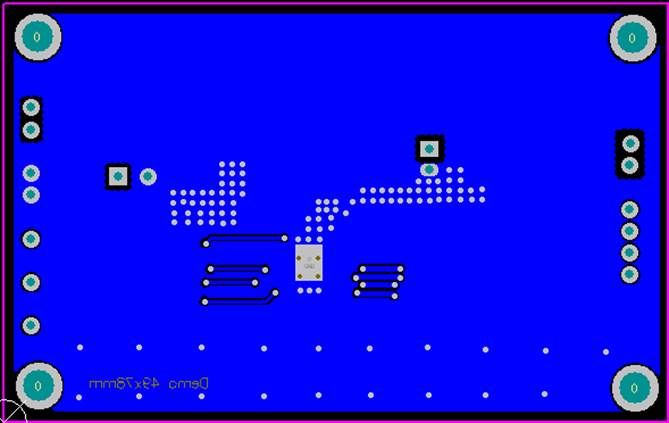

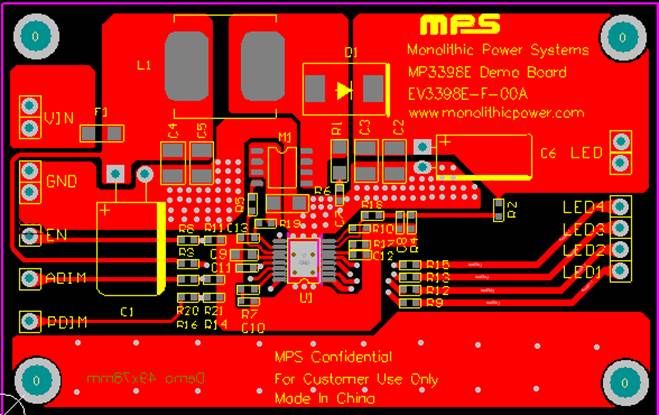

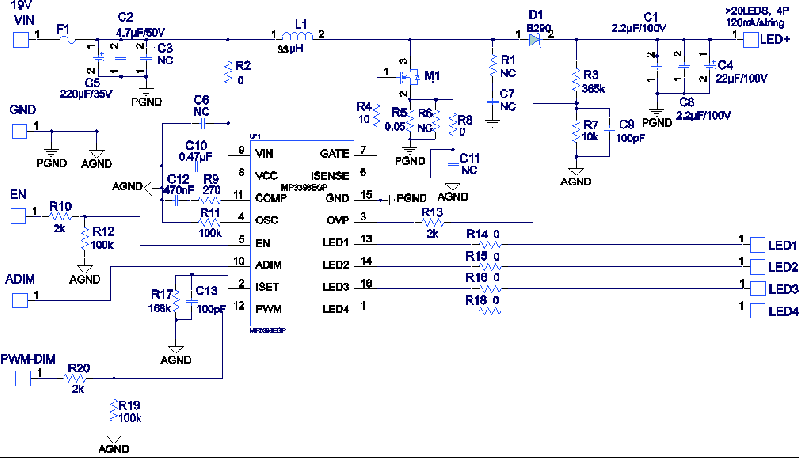

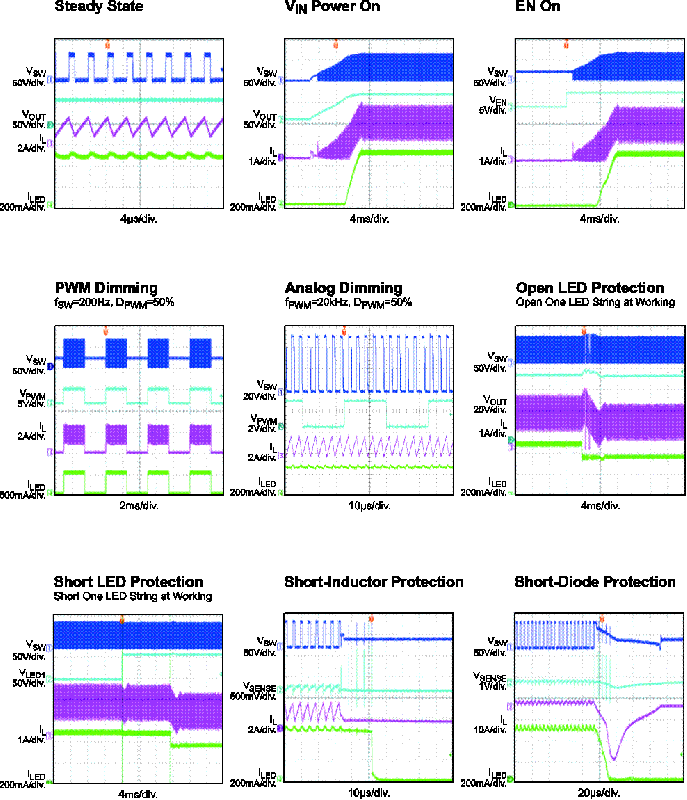

4 Strings WLED Controller 80V Return Evaluation Board
  • Quantity Price
  • 1
    $100.00 /unit
In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Talk to an Engineer or get a Quote

Datasheet (EN)

You have a basic account.
A myMPS+ account is needed.

Upgrade to myMPS+

Product Description

The MP3398E is a step-up controller with four current channels designed to drive WLED arrays for large size LCD panel backlighting applications. The MP3398E is able to expand the number of LED channels with two or more ICs in parallel sharing a single power source.

The MP3398E employs peak-current mode with a fixed switching frequency. The frequency is programmable through an external setting resistor. The MP3398E drives an external MOSFET to boost up the output voltage from a 4.5V to 33V input supply and regulates the current in each LED string to the value set by an external current-setting resistor.

The MP3398E applies four internal current sources for current balancing. The current matching achieves 2.3% regulation accuracy between strings. The low regulation voltage on the LED current sources reduces power loss.

The MP3398E supports direct PWM dimming and analog dimming with PWM input. Full protection features include over-current protection (OCP), Over-temperature protection (OTP), Under-voltage protection (UVP), over-voltage protection (OVP), LED short/open protection, and inductor/diode short protection.

The MP3398E is available in TSSOP-16EP and PDIP-16 packages.

Product Features

  • 4-String, Max 400mA/String WLED Driver
  • 4.5V to 33V Input Voltage Range
  • 80V ABS. Rating for Each String
  • 2.3% Current Matching Accuracy Between Each String
  • Direct PWM Dimming Mode
  • Analog Dimming Mode with PWM Input
  • Cascading Capability with a Single Power Source
  • LED Open and Short Protection
  • Programmable Recoverable Over-Voltage Protection (OVP)
  • 202mV Latch-off Cycle-by-Cycle Current Limit Threshold
  • Recoverable Thermal Shutdown Protection
  • Available in TSSOP-16EP and PDIP-16 Packages

Parametrics

  • IC Supported 1MP3398A

MP3398A


5V-28Vin, 4-Channel, 350mA/ch WLED Boost Controller with Separate PDIM and ADIM Pins

The MP3398A is a step-up controller with 4 current channels, which is designed to drive WLED arrays for large-size LCD-panel backlighting applications. It is flexible to expand the number of LED channels by two or more ICs in parallel sharing a single inductive power source. The MP3398A uses peak-current mode with fixed switching frequency. The frequency is programmable by an external setting resistor. The MP3398A drives an external MOSFET to boost up the output voltage from a 5V to 28V input supply. It regulates the current in each LED string to the value set by an external current-setting resistor. The MP3398A applies 4 internal current sources for current balance. The current matching can achieve 2.5% regulation accuracy between strings. Its low regulation voltage on LED current sources reduces power loss. The MP3398A can support both analog and PWM dimming independently to meet the different dimming-mode request. In addition, rich protection modes are also integrated including OCP, OTP, UVP, OVP, LED short/open protection, inductor/diode short protection. The MP3398A is available in SOIC16, TSSOP16-EP and SOIC20 packages.
