EV2905EK-00B

EV2905EK-00B

1.2V, 20A, 300kHz, Hysteretic Synchronous Step-Down Controller Evaluation Board

Datasheet

Description

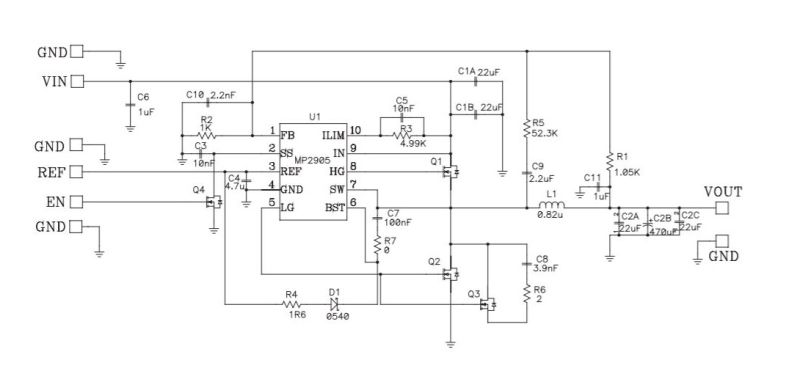

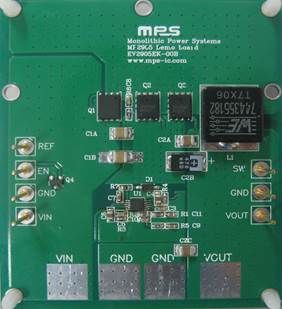

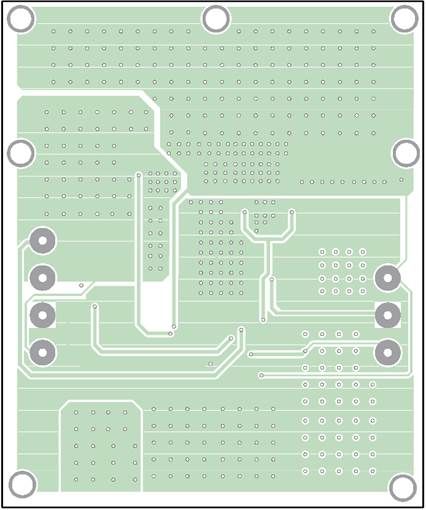

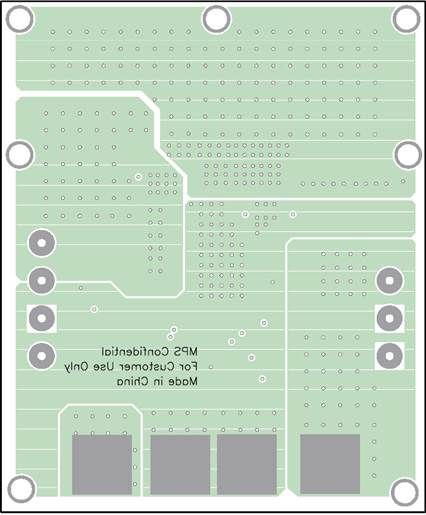

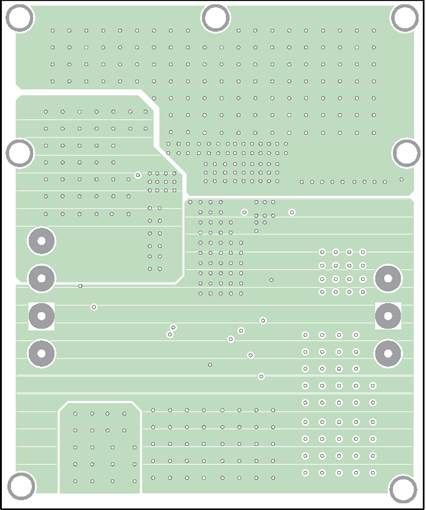

The EV2905EK-00B is the evaluation board for the MP2905EK, a hysteretic synchronous step-down controller. It offers a very compact solution to achieve 1.2V, 20A continuous output current from a 10.8V to 13.2V input voltage range over a wide operation input voltage. An adjustable soft-start prevents inrush current at turn-on.

Hysteretic voltage control can provide fast transient without any loop compensation. Full protection features include OCP, output OVP, thermal shut down.

The EV2905EK frequency is approximately 300kHz (12V input). Peak Current limit is set at 32A. The efficiency is up to 90% (12V input) with the supplied components.

Product Evaluated

MP2905

3V-28V Input, Hysteretic Synchronous Step-Down Controller

Features & Benefits

20A output current,1.2V output voltage
Programmable Soft-Start
Hiccup current limit and thermal shut down
Monotonic Startup into Prebias Output
Startup Overvoltage Protection
Enable/Shutdown

Active Part Numbers:

EV2905EK-00B

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
