High-Efficiency, 3A, 24V, 500kHz, Sync. Step-Down Switch Evaluation Board

Datasheet

Description

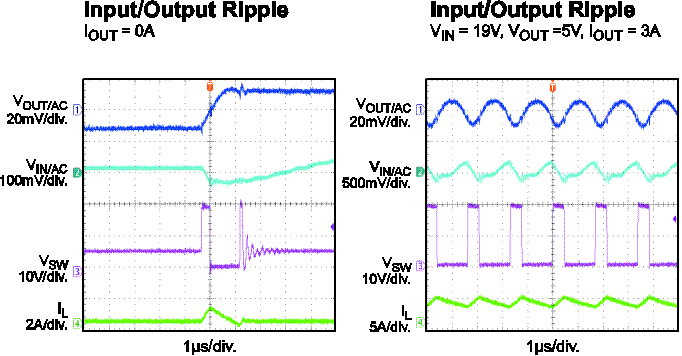

The EV2315-J-00A demonstrates MPS’s MP2315, a high-frequency, synchronous, rectified, step-down converter with built-in high-side and low-side power MOSFETs. The MP2315 offers a very compact solution to achieve a 3A continuous output current with excellent load and line regulation over a wide input supply range. The MP2315 has synchronous mode operation for higher efficiency over the output current load range.

Current-mode operation provides fast transient response and eases loop stabilization.

Full protection features includes over-current protection and thermal shutdown.

The MP2315 is available in a space-saving 8-pin TSOT23 package.

Product Evaluated

High Efficiency 3A, 24V, 500kHz, with AAM (light load mode), Synchronous Step Down Converter in TSOT23-8

Features & Benefits

Wide 4.5V to 24V OperatingInputRange
100mΩ/40mΩ Low R_DS(ON) Internal Power MOSFET
Proprietary Switching-Loss–Reduction Technique
High-Efficiency Synchronous Mode Operation
Default 500kHz Switching Frequency
Synchronizes from a 200kHz-to-2MHz External Clock
AAM Power-Save Mode
Internal Soft-Start
OCP Protection and Hiccup
Thermal Shutdown
Output Adjustable from 0.8V
Available in an 8-pin TSOT-23 Package

Active Part Numbers:

EV2315-J-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
