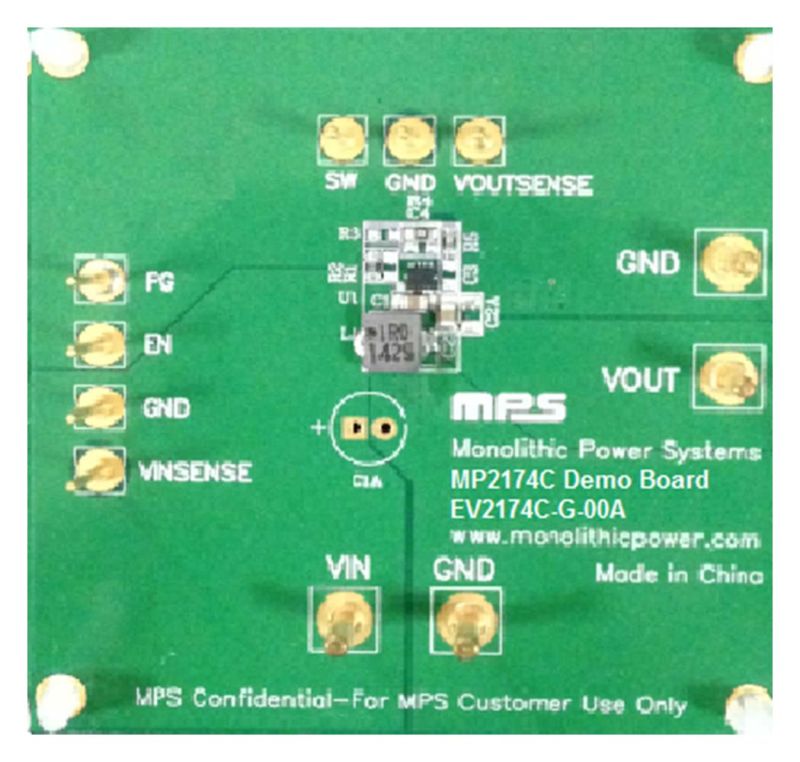

4A, 5.5V, 1.1MHz Synchronous Step-Down Switcher Evaluation Board

Datasheet

Description

The EV2174C-G-00A is used for demonstrating the performance of MPS’s MP2174C, a low voltage high switching frequency step-down switcher with built in power MOSFETs. MP2174C provides up to 4A highly efficient output with constant-on-time control for fast loop response.The output voltage can be regulated as low as 0.6V.

High power efficiency over a wide load range is achieved by scaling down the switching frequency at light load to reduce the switching related loss by constant on time control. Short circuit and thermal shutdown provides reliable, fault-tolerant operation.

MP2174C is available in QFN12 (2x2mm) package.

Product Evaluated

Features & Benefits

Forced PWM Mode Operation
Wide 2.7V to 5.5V Operating Input Range
Output Voltage as Low as 0.6V
4A Output Current
35mΩ and 18mΩ Internal Power MOSFET
1.1MHz Frequency
100% Duty cycle in Dropout
0.5ms Internal Soft-Start Time
EN and Power Good for Power Sequencing
Auto Discharge at Power-off
Short Circuit Protection with Hiccup Mode
Available in a QFN12 (2x2mm) Package
