EV2009EE-00A

EV2009EE-00A

Ultra Low Noise, Low Dropout 120mA Linear Regulator

Datasheet

Description

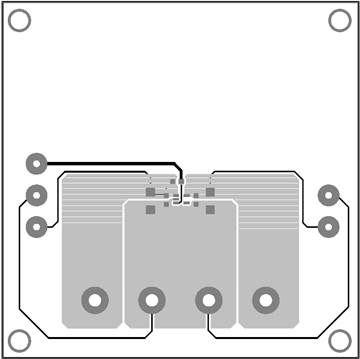

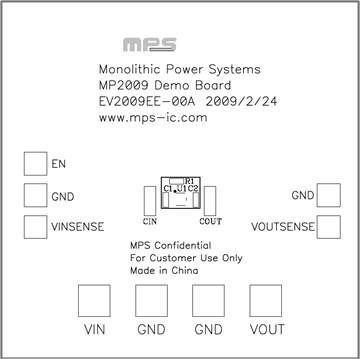

The EV2009EE-00A evaluation board demonstrates the performance of MP2009, an ultra low noise, low dropout linear regulator. It operates from a 2V to 6V input voltage and regulates the output voltage range from 1.5V to 4.5V in 100mV increments.

The EV2009EE-00A can supply up to 120mA of load current with a typical dropout voltage of 172 mV. It provides thermal overload and current limit protection, stability with ultra low ESR ceramic capacitors as low as 1uF, and very fast transient response.

Product Evaluated

Features & Benefits

Wide 2V to 5V Input Voltage Range
Fixed Output Voltage range from 1.5V to 4.5V in 100mV increments
16µVRMS Output Noise at 100Hz to 100kHz Bandwidth with No Bypass Capacitor required
78dB PSRR at 1kHz
172mV Dropout at 120mA Load
Stable with 1µF Ceramic Capacitor for Any Load
Low 50µA Ground Current
Very Fast Line and Load Transient Response with Small Input and Output Capacitor
Current Limit and Thermal Protection

Active Part Numbers:

EV2009EE-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
